QuickDry

Drying unit for M-iClean H

Original operating instructions

Before using the machine, read carefully the

operating instructions, the product description and

the safety instructions.

9022882 / Valid from: 2022-12 / Update: 2024-03

www.meiko.info

Table of Contents

Need help?

Do you have a question about the QuickDry and is the answer not in the manual?

Questions and answers

Summary of Contents for Meiko QuickDry

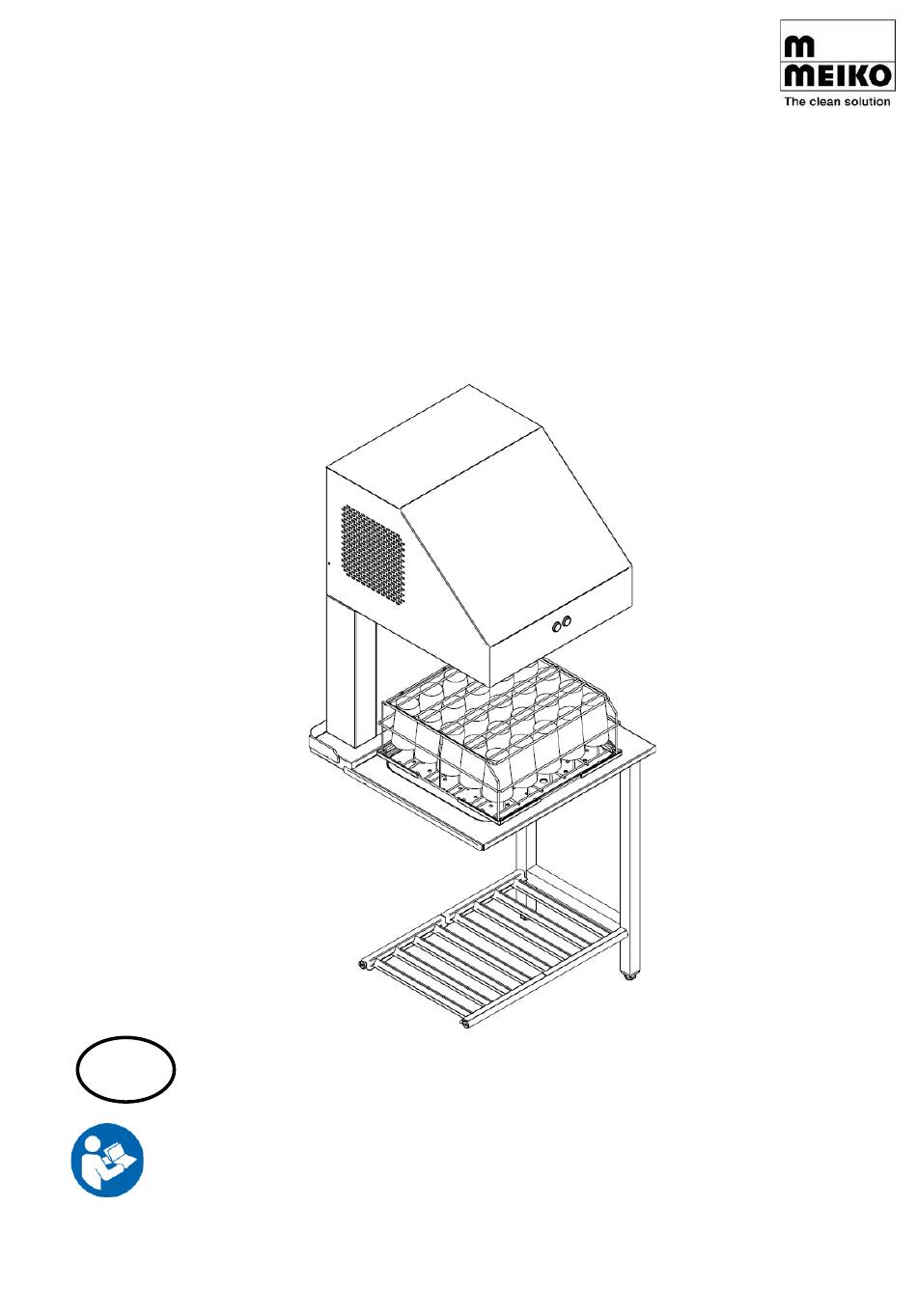

Page 1 QuickDry Drying unit for M-iClean H Original operating instructions Before using the machine, read carefully the operating instructions, the product description and the safety instructions. 9022882 / Valid from: 2022-12 / Update: 2024-03 www.meiko.info...
Page 2: Table Of Contents
Contents NOTES ON THE OPERATING INSTRUCTIONS ........4 Product identification Delivery contents Related documents Presentation conventions 1.4.1 Warnings 1.4.2 Notices on use 1.4.3 Award elements 1.4.4 Symbols 1.4.5 Illustrations SAFETY ....................... 6 Intended use Misuse Safety information Safety devices What to do in the event of an emergency Requirements for the personnel PRODUCT DESCRIPTION .................
Page 3 QuickDry Fitting the blower unit Connect electrically Connect the drain hose OPERATION/USE ..................20 Start up the machine Putting in washware Automatic operation Manual operation Switch off the machine Assistance in case of malfunctions CLEANING ....................22 MAINTENANCE ..................24 Maintenance plan INDEX ......................
Page 4: Notes On The Operating Instructions
These operating instructions can be downloaded via the following address: www.meiko.info or https://partnernet.meiko-global.com. Product identification These operating instructions apply to the QuickDry drying unit option for M- iClean H. Delivery contents The delivery contents include: •...
Page 5: Presentation Conventions
QuickDry Presentation conventions 1.4.1 Warnings DANGER – indicates an imminently hazardous situation which, if not avoided, will result in serious injury or death. WARNING – indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death.
Page 6: Symbols
Improper use may result in damage to the product or danger to the user. Intended use The QuickDry drying unit is only suitable for commercial use in combination with dishwashing machines from the M-iClean H range. The QuickDry drying unit is designed for drying washware after the warewash- ing process.
Page 7: Misuse
• For stainless steel surfaces, use detergents suitable for stainless steel. Safety devices • The QuickDry drying unit is equipped with an overload protection for the blower motor. What to do in the event of an emergency • In dangerous situations, disconnect the dishwashing machine from the power supply using the locally available main switch.
Page 8: Requirements For The Personnel
Requirements for the personnel Commissioning, instructions, repairs, maintenance, assembly and installation of or on MEIKO products may only be carried out/authorised by authorised service partners. During operation it must be ensured that: • Only adequately trained and instructed personnel are allowed to work on the machine.
Page 9: Product Description
Product description Functional description The QuickDry drying unit dries washware with room air. To do this, the washware is placed in a suitable dishwasher rack and centred on the drying ta- ble above the lower air outlet nozzles. A blower is used to blow air over the washware for a defined period of time.
Page 10: Overview Illustration
Overview illustration Hello 1 Substructure 2 Sheet metal with exhaust outlet 3 Blower unit 4 Control elements, see page 10 5 Rack with washware for drying Control elements Symbol Explanation The [On] button starts the drying unit or the blower motor. The button lights up white when it is pressed.
Page 11: Technical Data
Technical data General technical data Electrical performance values Voltage See rating plate of the dishwashing Total connected load machine Fuse protection QuickDry drying unit power rating 100 W Equipotential Via the equipotential bonding of the bonding dishwashing machine Weight Net weight...
Page 12: Dimensions
Dimensions Dimensions Ambient conditions Environmental conditions Operating temperature 5-40 °C Relative humidity < 95% Storage temperature 5-40 °C Maximum height of the 2000 m installation site above sea level 12 / 28 9022882...
Page 13: Transport
QuickDry Transport WARNING – danger of injury due to product tipping • Only qualified personnel may carry out transport works. • Please note safety notices on the packaging. • Always transport the product on a wooden frame only. • Wear protective gloves and safety shoes.
Page 14: Assembly
Assembly Required tools  Slotted screwdriver  Hose clamp pliers  Flat spanner, SW 10 mm Assemble the table 1. Each of the table legs must be 2. Insert the screw from the outside mounted to the angle bar with a with washer and tighten.
Page 15: Mounting The Table On The Dishwasher
QuickDry Mounting the table on the dishwasher ► The table is assembled. 3. Unscrew the table legs about half- way. 1. Check that the holes (arrows, Ø 5.2 mm) on the side of the dish- 4. Mount the table on the side of the washing machine are drilled out.
Page 16: Fitting The Blower Unit
Fitting the blower unit ► The QuickDry drying unit table is 2. With two people, position the mounted and aligned on the dish- blower unit on the table. washing machine. 3. Guide the threaded bolts of the fix- 1. Push the fixing panels with...
Page 17: Connect Electrically
QuickDry 6. Hook in the front cover and close it (1). 7. Secure the front cover with 2 screws at the top (2). ✓ The blower unit is mounted on the table. Connect electrically Do not lay the cables over sharp edges or under tension! ►...
Page 18 (arrow). 7. Feed the electrical supply of the QuickDry drying unit in the dishwashing machine to the connection plate and connect it to the 2 free sockets there. ✓ The QuickDry drying unit is electrically connected.
Page 19: Connect The Drain Hose
QuickDry Connect the drain hose ► The blower unit is mounted on the 2. Push the seal over the connection table. piece and fasten the connection piece with the union nut. 1. Insert the connection piece with sealing ring into the drain.
Page 20: Operation/Use
Operation/use Start up the machine By switching on the dishwashing machine, the QuickDry drying unit is ready for operation. Putting in washware 1. Hollow containers must be loaded upside down in the crockery rack. ✓ The washware is loaded. Note •...
Page 21: Automatic Operation
QuickDry Automatic operation ► The wash programme is completed. The blower of the QuickDry drying unit starts automatically. The button [On] lights up. 1. Place the crockery rack with the washed dishes in the centre under the blower of the QuickDry drying unit.
Page 22: Assistance In Case Of Malfunctions
Assistance in case of malfunctions WARNING – Danger to operator and damage due to improper repairs • Repairs to the product may only be carried out by MEIKO authorised service technicians. The following malfunctions can be remedied by the operating personnel or the in-house technician.
Page 23 QuickDry CAUTION – Material damage to stainless steel due to incorrect clean- Cleaning of parts made of stainless steel with unsuitable detergents, care products and cleaning utensils leads to damage, deposits or discolourations on the machine. • Never use aggressive detergents or scouring agents.
Page 24: Maintenance
Maintenance plan Work when dishwashing machine is switched on Every year Check that the QuickDry drying unit switches on automatically at the end of the dishwashing machine programme. Check the function and illumination of the [On] button. Check the function of the [Off] button.
Page 25: Index
QuickDry Index Misuse ........... 7 Ambient conditions...... 12 Assembly ........14 Notes on the operating instructions ..........4 Assemble the table......14 Connect electrically ......17 illustrations ........... 6 Connect the drain hose .......19 Fitting the blower unit ......16 Mount table on the dishwasher ..15 Operation/use ......
