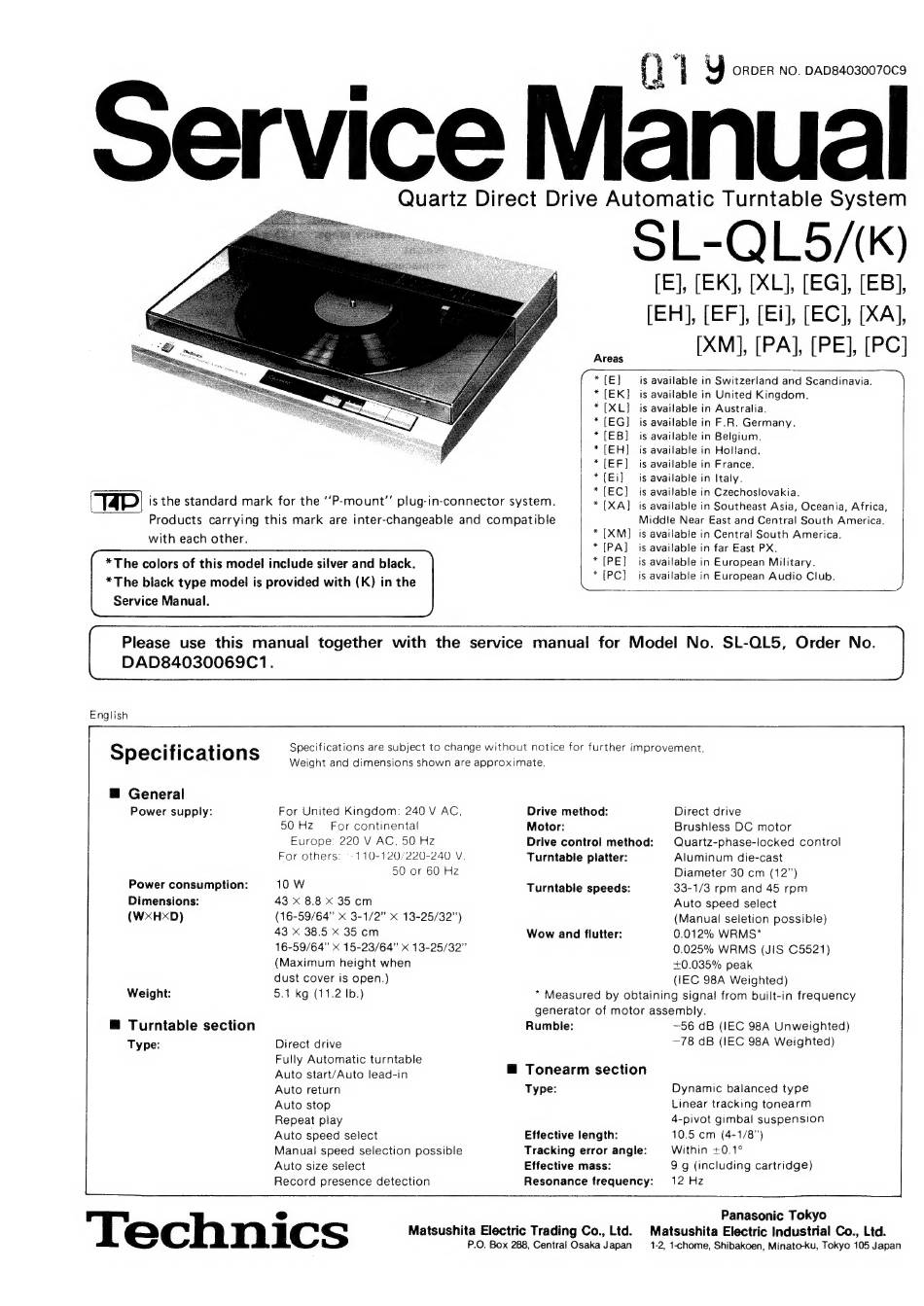

Technics SL-QL5 Service Manual

a ei Ss
( i y ORDER NO. DAD84030070C9
eS)
Service Manual
Quartz Direct Drive Automatic Turntable System
SL-QL5/(k)
[E], [EK], [XL], [EG], [EB],
[EH], [EF], (Ei), [EC], [XA],
= [XM], [PA], [PE], [PC]
*[E] is available in Switzerland and Scandinavia. ne
* [EK] is available in United Kingdom.
* [XL] is available in Australia.
* [EG] is available in F.R. Germany.
* [EB] is available in Belgium.
* [EH] is available in Holland.
* [EF] is available in France.
* [Ei] is available in Italy.
* [EC] is available in Czechoslovakia.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [XM] is available in Central South America.
* [PA] is available in far East PX.
* [PE] is available in European Military.
* [PC] is available in European Audio Club. Jy
is the standard mark for the ''P-mount'' plug-in-connector system.
Products carrying this mark are inter-changeable and compatible
with each other.
*The colors of this model include silver and black.
*The black type model is provided with (K) in the
Service Manual.
Please use this manual together with the service manual for Model No. SL-OL5, Order No.
DAD84030069C1.
English
s: rn Specifications are subject to change without notice for further improvement.
Specifications Weight and dimensions shown are approximate.
@ General
Direct drive
Brushless DC motor
Quartz-phase-locked control
Drive method:
Motor:
Drive control method:
For United Kingdom: 240 V AC.
50 Hz For continental
Europe: 220 V AC, 50 Hz
Power supply:
Power consumption:
Dimensions:
(WxHxD)
Weight:
@ Turntable section
Type:
For others: --110-120/220-240 V.
50 or 60 Hz
10 W
43 xX 8.8 x 35 cm
(16-59/64" x 3-1/2" X 13-25/32")
43 x 38.5 x 35cm
16-59/64" X 15-23/64" x 13-25/32"
(Maximum height when
dust cover is open.)
5.1 kg (11.2 Ib.)
Direct drive
Fully Automatic turntable
Auto start/Auto lead-in
Auto return
Auto stop
Repeat play
Auto speed select
Manual speed selection possible
Auto size select
Record presence detection
Turntable platter:
Turntable speeds:
Wow and flutter:
Aluminum die-cast
Diameter 30 cm (12")
33-1/3 rpm and 45 rpm
Auto speed select
(Manual seletion possible)
0.012% WRMS*
0.025% WRMS (JIS C5521)
+0.035% peak
(IEC 98A Weighted)
* Measured by obtaining signal from built-in frequency
generator of motor assembly.
Rumble:
Tonearm section
Type:
Effective length:
Tracking error angle:
Effective mass:
Resonance frequency:
—56 dB (IEC 98A Unweighted)
~78 dB (IEC 98A Weighted)
Dynamic balanced type
Linear tracking tonearm
4-pivot gimbal suspension
10.5 cm (4-1/8")
Within +0.1°
9 g (including cartridge)
12 Hz
Technics
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
Panasonic Tokyo
Matsushita Electric Industrial Co., Ltd.
1-2, 1-chome, Shibakoen, Minato-ku, Tokyo 105 Japan
