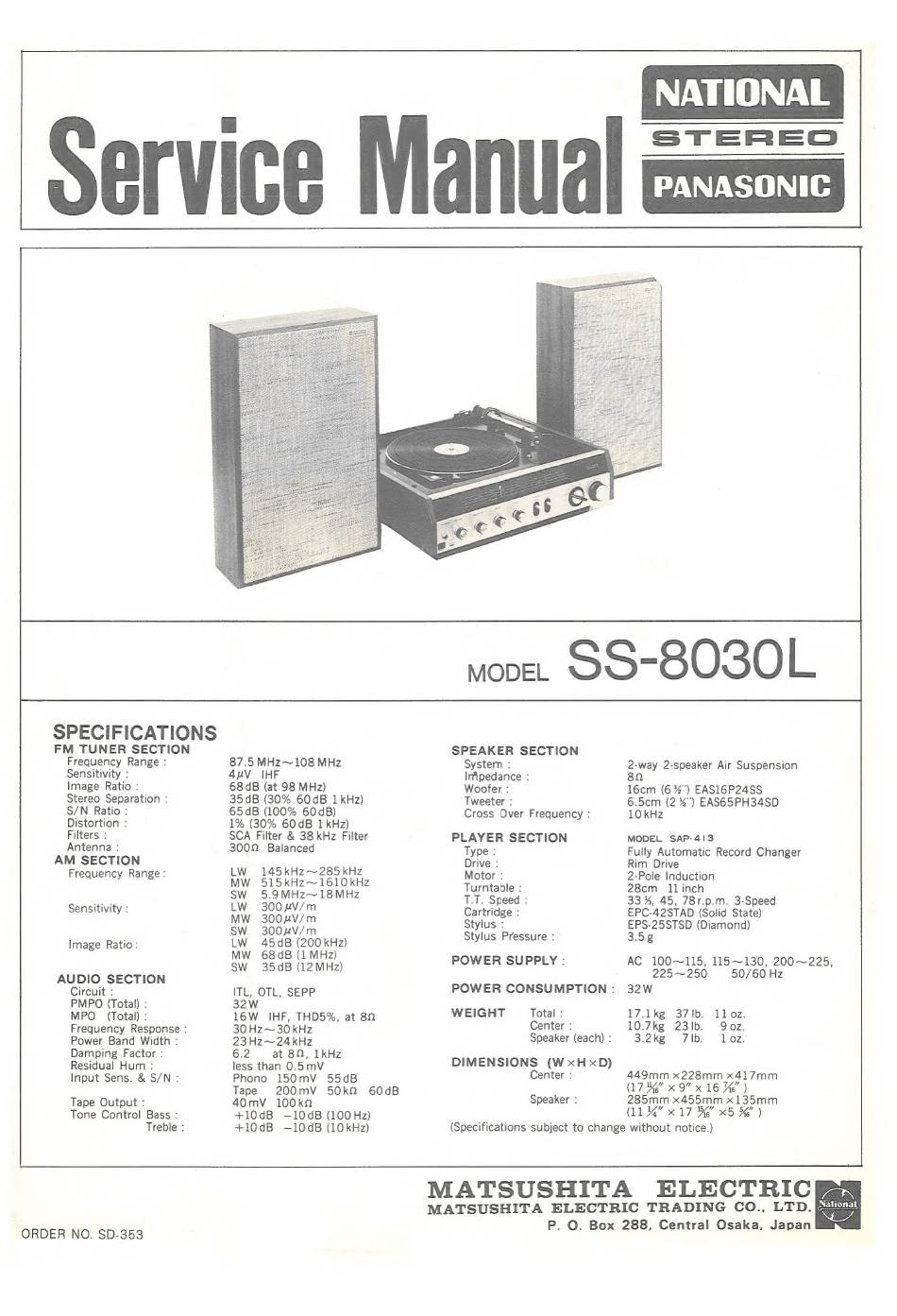

Panasonic National SS-8030L Service Manual

SPECIFICATIONS
FM TUNER SECTION
Frequency Range :
Sensitivity :
Image Ratio :
Stereo Separation :
S/N Ratio :
Distortion :
Filters :
Antenna :
AM SECTION
Frequency Range:
Sensitivity :
Image Ratio:
AUDIO SECTION
Circuit :
PMPO (Total) :
MPO (Total) :
Frequency Response :
Power Band Width :
Damping Factor :
Residual Hum :
Input Sens. & S/N:
Tape Output :
Tone Control Bass :
Treble :
ORDER NO. SD-353
87.5 MHz~108 MHz
4uV_ IHF
68 dB (at 98 MHz)
35dB (30% 60dB 1kHz)
65dB (100% 60dB)
1% (30% 60dB 1kHz)
SCA Filter & 38 kHz Filter
3002 Balanced
LW 145kHz~285 kHz
MW 515kHz~1610kHz
SW 5.9MHz~18MHz
LW 300#V/m
MW 3002V/m
SW 300KV/m
LW 45dB (200 kHz)
MW 68dB (1 MHz)
SW 35dB (12MHz)
ITL, OTL, SEPP
32W
16W_ IHF, THD5%, at 82
30 Hz~ 30 kHz
23Hz~24 kHz
6.2 at 89, 1kHz
less than 0.5mV
Phono 150mV 55dB
Tape 200mV 50k 60dB
40mV 100ka
+10dB -10dB (100 Hz)
+10dB -—10dB (10kHz)
Service Manual
STEREO
PANASONIC
SPEAKER SECTION
System :
Inipedance :
Woofer :
Tweeter :
Cross Over Frequency :
PLAYER SECTION
Type :
Drive :
Motor :
Turntable :
T.T. Speed :
Cartridge :
Stylus :
Stylus Pressure :
POWER SUPPLY :
POWER CONSUMPTION :
WEIGHT Total :
Center :
Speaker (each) :
DIMENSIONS (WxHxD)
Center :
Speaker :
2-way 2-speaker Air Suspension
82
16cm (6%) EAS16P24SS
6.5cm (2 %") EAS65PH34SD
10 kHz
MODEL SAP-413
Fully Automatic Record Changer
Rim Drive
2-Pole Induction
28cm llinch
33 %, 45, 78r.p.m. 3-Speed
EPC-42STAD (Solid State)
EPS-25STSD (Diamond)
3.5¢g
AC 100~115, 115~130, 200~225,
225~250 50/60 Hz
32W
17.1kg 37\lb. 1loz.
10.7kg 23lb. 9oz.
3.2kg 7lb. loz.
449mm x228mm x417mm
(17 36" x 9" x 16 4%" )
285mm x455mm x135mm
(114" x 17 56' x5 3%')
(Specifications subject to change without notice.)
MATSUSHITA ELECTRIC
