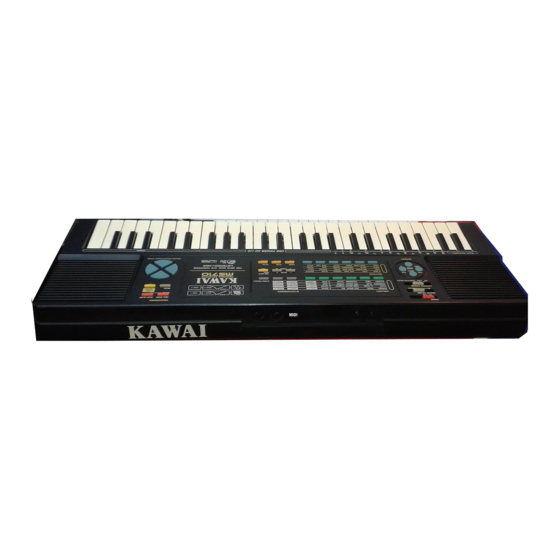

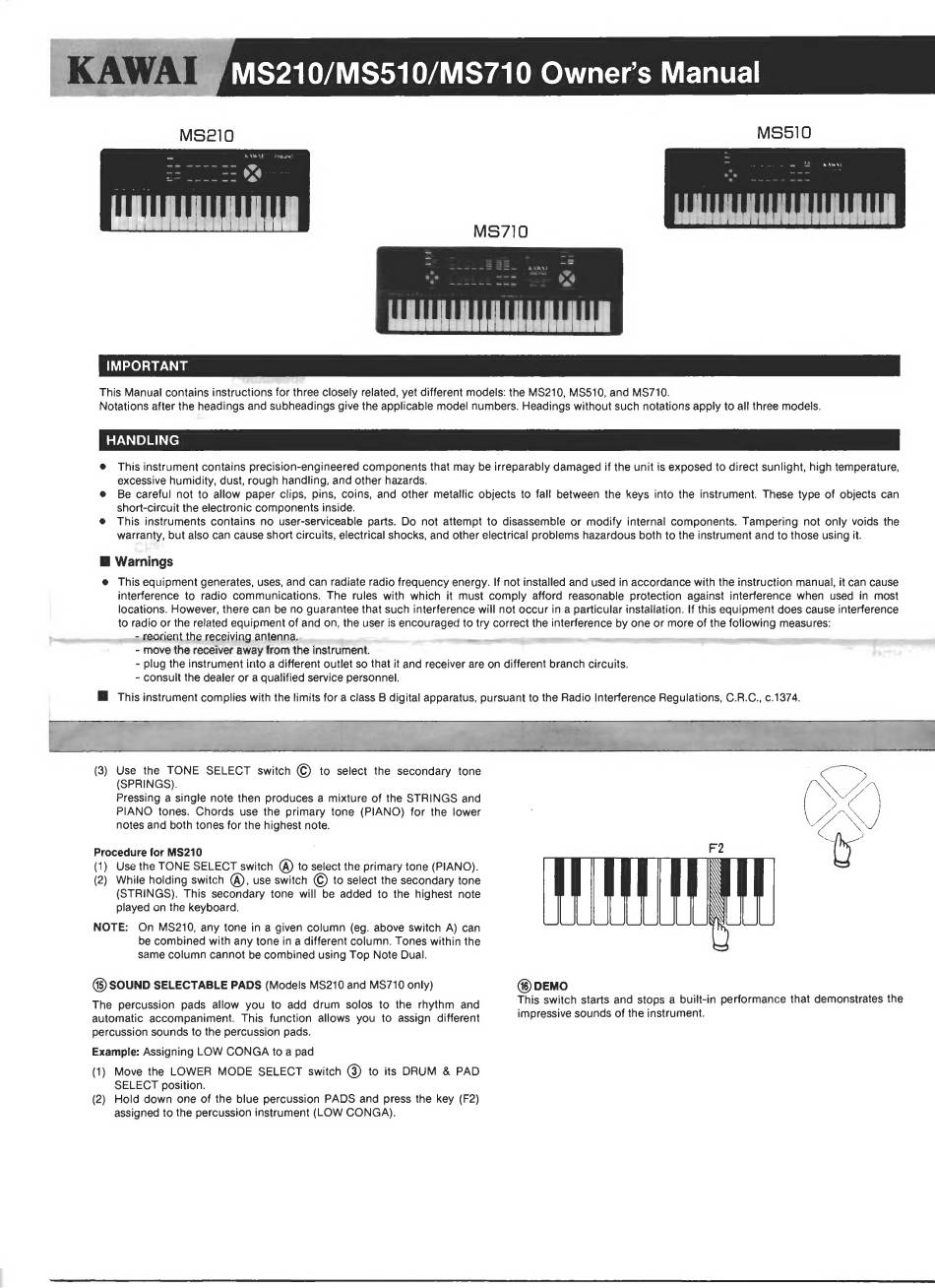

Kawai MS210 Owner's Manual

KAWAI [EA Sa OLsatke tatu eur)
MS510
Ore..1a
IMPORTANT
This Manual contains instructions for three closely related, yet different models: the MS210, MS510, and MS710.
Notations after the headings and subheadings give the applicable model numbers. Headings without such notations apply to all three models.
HANDLING
@ This instrument contains precision-engineered components that may be irreparably damaged if the unit is exposed to direct sunlight, high temperature,
excessive humidity, dust, rough handling, and other hazards.
@ Be careful not to allow paper clips, pins, coins, and other metallic objects to fall between the keys into the instrument. These type of objects can
short-circuit the electronic components inside.
e This instruments contains no user-serviceable parts. Do not attempt to disassemble or modify internal components. Tampering not only voids the
warranty, but also can cause short circuits, electrical shocks, and other electrical problems hazardous both to the instrument and to those using it.
@ Warnings
e@ This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it can cause
interference to radio communications. The rules with which it must comply afford reasonable protection against interference when used in most
locations. However, there can be no guarantee that such interference will not occur in a particular installation. If this equipment does cause interference
to radio or the related equipment of and on, the user is encouraged to try correct the interference by one or more of the following measures:
- reorient the receiving antenna.
- move the receiver away from the instrument.
~ plug the instrument into a different outlet so that it and receiver are on different branch circuits.
- consult the dealer or a qualified service personnel.
M This instrument complies with the limits for a class B digital apparatus, pursuant to the Radio Interference Regulations, C.R.C., ¢.1374.
Ayer
Procedure for MS210 (
{1} Use the TONE SELECT switch ) to select the primary tone (PIANO).
(2) While holding switch (A), use switch ©) to select the secondary tone
(STRINGS). This secondary tone will be added to the highest note
played on the keyboard.
NOTE: On MS210, any tone in a given column (eg. above switch A) can
be combined with any tone in a different column. Tones within the
same column cannot be combined using Top Note Dual.
(5) SOUND SELECTABLE PADS (Models MS210 and MS710 only) DEMO
This switch starts and stops a built-in performance that demonstrates the
The percussion pads allow you to add drum solos to the rhythm and
: é 2 " impressive sounds of the instrument.
automatic accompaniment. This function allows you to assign different
percussion sounds to the percussion pads.
Example: Assigning LOW CONGA to a pad
(1) Move the LOWER MODE SELECT switch 3) to its DRUM & PAD
SELECT position.
(2) Hold down one of the blue percussion PADS and press the key (F2)
assigned to the percussion instrument (LOW CONGA),.
