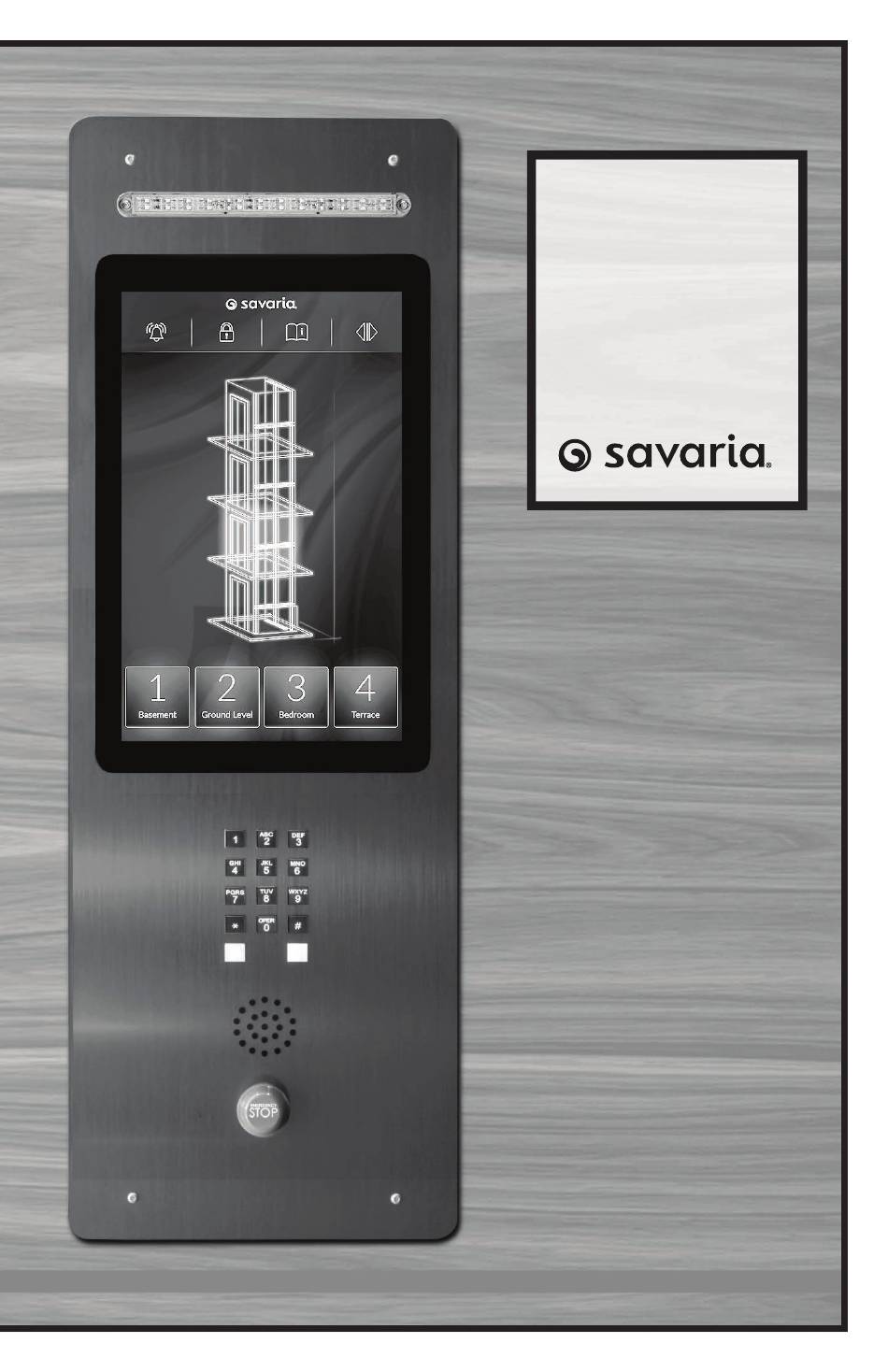

Page 1 Luxury Touch Screen Cab Operating Panel Owner’s Manual...
Page 2 Failure to follow this warning can result in safety system compromises or defeat; this can result in serious injury or death. Savaria accepts no liability for property damage, warranty claims or personal injury, including death, in this circumstance.
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS ..........4 To Ensure Safety .
Page 4: Safety Instructions
• Follow instructions on all equipment labels at all times. Replace any damaged labels immediately. • Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. Touchscreen COP Owner’s Manual Part No. 001410, 29-m05-2024...
Page 5: Description
2. DESCRIPTIONS Exterior View Below shows the exterior view of the Touchscreen COP, with the Green theme. Lock Button Information Tab Floor Buttons Alarm button Emergency Phone Emergency Stop Part No. 001410, 29-m05-2024 Touchscreen COP Owner’s Manual...
Page 6: Cop Ui
COP UI Included with the touchscreen COP are two different themes that can be chosen from. Green (left) and Noir (right). To switch themes, swipe left/right. Touchscreen COP Owner’s Manual Part No. 001410, 29-m05-2024...
Page 7: Icons
Icons Icons Description Brings up general information on the elevator: • Capacity • General Operation • Emergency Procedure • Service Contact Lock/unlock button. Press to bring up the keypad to lock/unlock the elevator. Triggers the alarm on the top of the car and opens the car door when the car is within the door zone Part No.
Page 8: Specifications
3. SPECIFICATIONS Touchscreen COP Specifications Weight 260g Screen Size 10.1'' Touch Screen Display Resolution 1280x800p 16.7M Colour Depth Dimensions 257.96 × 168.6 × 14.28 mm Active Area 216.96×135.60 800 cd/m² Screen Brightness Viewing direction Full Angle (IPS) Touch Screen Bonding Air Bonding Technology Touch Screen...
Page 9: Using The Device
4. USING THE DEVICE The Savaria Touch Screen COP (Car Operating Panel) provides control for the operation of your home elevator for desired floor, door opening and alarm functions on the large glass screen. The Touch Screen COP is available for the Savaria Eclipse, Infinity and Zenith home elevators.
Page 10 4 Before exiting the landing, the touchscreen panel can be locked again (if desired) to make it inoperable. a Click the lock icon on the touchscreen COP b Enter the provided pin, 22522. NOTE The outside landing doors must be closed after entering or exiting the cab.
Page 11: Information Tab
INFORMATION TAB The Touch Screen COP Information Tab can be found on the top right corner of th display. Once pressed, the following information will be shown: CAPACITY Depending on which lift is installed, this page will show the details regarding the kg/lbs capacity of the car, as well as the maximum amount of people allowed.
Page 12: General Operation
GENERAL OPERATION The General Operations tab will explain how to operate the elevator and touch screen COP. The information on this page does not change. Touchscreen COP Owner’s Manual Part No. 001410, 29-m05-2024...
Page 13: Emergency Procedure
EMERGENCY PROCEDURE In the event of a power failure, the elevator is equipped with a Battery Back-up system that allows you to lower the elevator from the inside of the cab. This will allow the Touchscreen COP to still be active. 1 Press any landing button below the floor where the elevator is located.
Page 14: Service Contacts
SERVICE CONTACTS This page is pre-programmed with information about the dealer who installed the elevator. In the event that anything happens to your lift, contact information for your dealer can be found here Touchscreen COP Owner’s Manual Part No. 001410, 29-m05-2024...
Page 15: Troubleshooting
5. TROUBLESHOOTING Follow through the items below to determine possible reason for the problems. If any issues persist, please contact your authorized Savaria dealer. WARNING Only qualified technicians are authorized to perform repairs. DO NOT manipulate, modify or remove any safety features.
Page 16: Maintenance
6. MAINTENANCE Cleaning The touchscreen COP is subject to wear and tear. Periodic cleaning of the Touchscreen will ensure optimal performance. DO NOT use any cleaning product anywhere on the entire unit that contain any amount of citrus, ammonia or petroleum. This includes Windex ® and most traditional glass cleaners, as well as many “natural”...
Page 17: Updates
As the touchscreen COP is designed to require little maintenance, regular software updates are not required. In the case that there is a functional problem with the touchscreen, please contact your Authorized Savaria Dealer to request a software update or any changes.
Page 18 THIS PAGE WAS INTENTIONALLY LEFT BLANK Touchscreen COP Owner’s Manual Part No. 001410, 29-m05-2024...
Page 19: Maintenance Record
Maintenance Record Date Time Reason for call Comments Dealer...
Page 20 Owner’s Manual For service or questions about this product, please contact your installing dealer. Dealer Name: Dealer Phone: Authorized Savaria Dealer Savaria Concord Lifts, Inc. savaria.com 2 Walker Drive Brampton ON L6T 5E1 Canada Part No. 001410 ©2024 Savaria Corporation...
