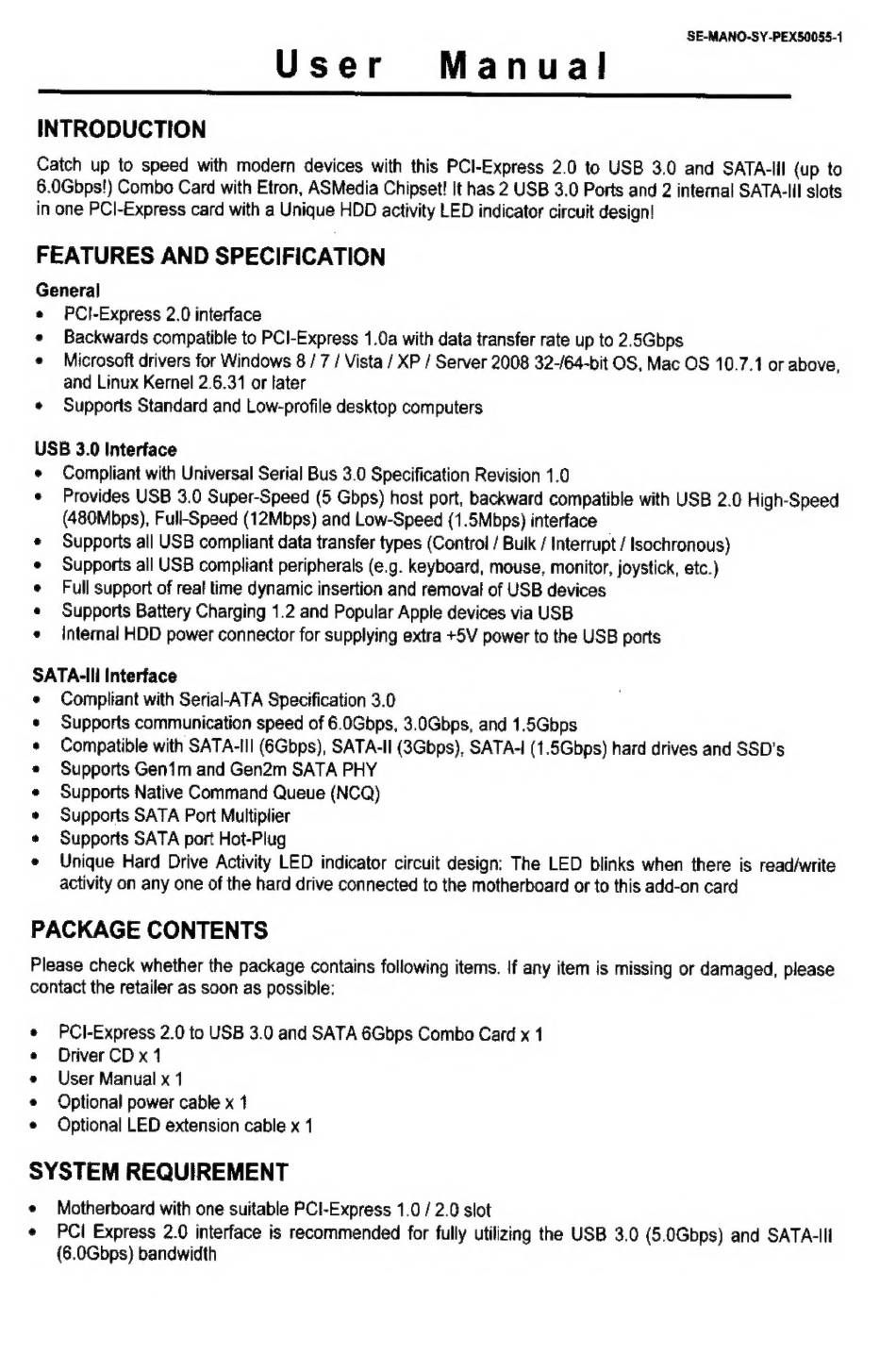

SE-MANO-SY-PEX50055-1
User
Manual
INTRODUCTION
Catch up to speed with modern devices with this PCI-Express 2.0 to USB 3.0 and SATA-II (up to
6.0Gbps!) Combo Card with Etron, ASMedia Chipset! It has 2 USB 3.0 Ports and 2 internal SATA-liI slots
in one PCI-Express card with a Unique HDD activity LED indicator circuit design!
FEATURES AND SPECIFICATION
General
e
PCI-Express 2.0 interface
¢
Backwards compatible to PCI-Express 1.0a with data transfer rate up to 2.5Gbps
+
Microsoft drivers for Windows 8 / 7 / Vista / XP / Server 2008 32-/64-bit OS, Mac OS 10.7.1 or above,
and Linux Kernel 2.6.31 or later
+
Supports Standard and Low-profile desktop computers
USB 3.0 Interface
*
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
e
Provides USB 3.0 Super-Speed (5 Gbps) host port, backward compatible with USB 2.0 High-Speed
(480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) interface
Supports all USB compliant data transfer types (Control / Bulk / Interrupt / lsochronous)
Supports all USB compliant peripherals (e.g. keyboard, mouse, monitor, joystick, etc.)
Full support of reat time dynamic insertion and removal of USB devices
Supports Battery Charging 1.2 and Popular Apple devices via USB
intemal HDD power connector for supplying extra +5V power to the USB ports
SATA-IIl Interface
Compliant with Serial-ATA Specification 3.0
Supports communication speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Compatible with SATA-II (GGbps), SATA-II (3Gbps), SATA- (1 .5Gbps) hard drives and SSD's
Supports Genim and Gen2m SATA PHY
Supports Native Command Queue (NCQ)
Supports SATA Port Multiplier
Supports SATA port Hot-Plug
Unique Hard Drive Activity LED indicator circuit design: The LED blinks when there is read/write
activity on any one of the hard drive connected to the motherboard or to this add-on card
PACKAGE CONTENTS
Please check whether the package contains following items. If any item is missing or damaged, please
contact the retailer as soon as possible:
PCI-Express 2.0 to USB 3.0 and SATA 6Gbps Combo Card x 1
Driver CD x 1
User Manual x 1
Optional power cable x 1
Optional LED extension cable x 1
SYSTEM REQUIREMENT
¢
Motherboard with one suitable PCI-Express 1.0 / 2.0 slot
e
PCi Express 2.0 interface is recommended for fully utilizing the USB 3.0 (5.0Gbps) and SATA-II
(6.0Gbps) bandwidth
