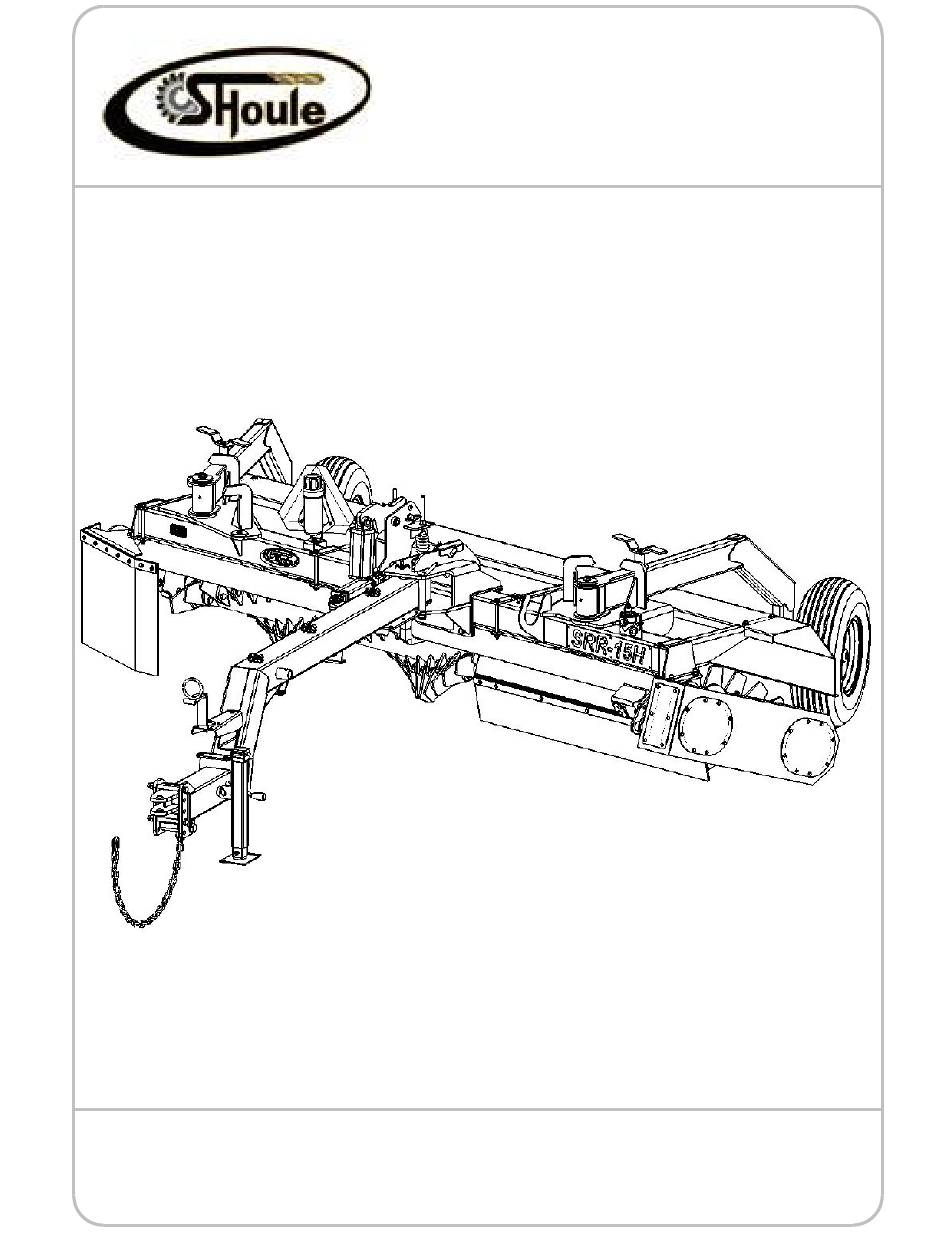

- Page 1 OWNER'S MANUAL CAT # R0315-60007 SRR 15H ROCK RAKE R0315-00008...
-
Page 3: Table Of Contents
Table of contents Introduction........................3 Security ........................4 Dimensions ......................... 10 Adjustments and maintenance .................. 11 Parts ........................... 14 ROCK RAKE SRR - 15 H ..................14 SR R- 1 5H FRAME ASSEMBLY................18 SRR - 15 TEET H KIT ....................22 SRR - 15 HOSE S KIT .................... -
Page 4: Introduction
Introduction Congratulations on your purchase of your new S. Houle inc, equipment! This equipment will advantageously complement your agricultural machinery� It has been designed and built specifically for an agricultural market that is always in need of more efficient, better performing equipment� This Owner’s Manual is your principal reference in regards to your new equipment�... -
Page 5: Security
Security Locate this symbol – it could save your life This symbol is the standard safety symbol� You will find it on most of the decals on your equipment� It is also used throughout this manual� This symbol is used mainly to draw your attention and to warn you of possible dangers and/or potential injuries�... - Page 6 Security As the owner of this equipment, you are responsible for the safety of its users and those who are responsible for its maintenance� You and any other person using or performing maintenance on this equipment must be familiar with its operation and maintenance, as well as the safety measures contained in this manual�...
- Page 7 Security you should: 1� Lower the equipment, stop the tractor’s engine, set controls to neutral, engage the emergency brake, remove the tractor’s ignition key and wait for all moving parts to come to a full stop prior to detaching or servicing the equipment�...
- Page 8 Security 5� Be extremely cautious while servicing or while near high pressure hydraulic systems� Ensure all components are fully sealed and in good working order prior to operating the equipment� Wear appropriate safety gear to protect your eyes and hands� Use a piece of wood or cardboard as a shield when examining a hose or fitting for a leak�...
- Page 9 Security Storage Safety 1� Store the equipment in an area well away from human activity� 2� Store the equipment in the lowered position� 3� Do not allow children to play near the stored equipment�...
-
Page 10: Dimensions
SRR 15H ROCK RAKE Dimensions R0315-00008 182 1/4" 70° 50 1/2"... -
Page 11: Adjustments And Maintenance
To the New Operator or Owner Forward Speed The recommended ground speed varies from 2 to The Fabrication SHOULE SRR-15M Rock Rakes are 6 mph (3,2 - 9,7 km/h) and is determined by rock designed to efficiently windrow rocks from 2 to 12 density and size. - Page 12 Suspension system Remove the hitch pole safety pin The auger is supported on springs to carry part of the weight. The springs provide suspension systems that allow the drum to float over obstacles encountered in the field and reduce the shock loads. To adjust the spring load Turn the nut on each eyebolt until there is approximately 4 inches between the spring and the plate...
- Page 13 Maintenance Wipe the grease fittings with a clean cloth before greasing. Lubricate all greasers for every eight hours of operation. Verify oil level in the gear box once a month. Perform oil change once a year, using gear oil grade 80W90. Verify drive chain tension after first eight hours of operation, and then once a month.
-
Page 14: Parts
SRR 15H ROCK RAKE Parts R0315-00008... - Page 15 SRR 15H ROCK RAKE Parts R0315-00008...
- Page 16 SRR 15H ROCK RAKE Parts R0315-00008 ITEM DESCRIPTION R0315-05E08 SRR15H FRAME ASS. R0315-01E01 SRR-15 AXEL ASS'Y R0315-01E02 SRR-15 AXEL ASS'Y R0315-29E01 SRR15 HOSES KIT R0415-29E03 SWD-15H / SRR-15H HYD. HOSES KIT R-04015 RUBBER GUARD R-04016 GUARD SUPPORT R-04026 GUARD R-04027 GUARD R-04030 GUARD SUPPORT...
- Page 17 SRR 15H ROCK RAKE Parts R0315-00008 ITEM DESCRIPTION 45AA008130108 HEX BOLT 1/2-13NC X 1 1/2" GR5 45AA008130800 HEX BOLT 1/2-13NC x 8" GR5 45AA012100800 HEX BOLT 3/4-10NC x 8" GR5 45AA100080800 HEX BOLT 1-8NC x 8" GR5 45AE006160100 WHIZ-LOCK BOLT 3/8-16NC X 1" 45AE006160108 WHIZ-LOCK BOLT 3/8-16NC X 1 1/2"...
-
Page 18: Sr R- 1 5H Frame Assembly
SRR15H FRAME ASS. Parts R0315-05E08... - Page 19 SRR15H FRAME ASS. Parts R0315-05E08...
- Page 20 SRR15H FRAME ASS. Parts R0315-05E08 ITEM DESCRIPTION R0315-14E01 SRR15 TEETH KIT R0415-06E10 ECCENTRIC ASS. R-05016 SPLIT BUSHING BEARING R-05021 FRAME ASS'Y R-05022 UPPER MODULE DRAWBAR R-05022-08 UPPER MODULE DRAWBAR (PART) R-05023 UPPER MODULE BALANCER R-05023-05 UPPER MODULE BALANCER (PART) R-05027 SHIM 1/8"...
- Page 21 SRR15H FRAME ASS. Parts R0315-05E08 ITEM DESCRIPTION 45AA012100208 HEX BOLT 3/4-10NC X 2 1/2" GR5 45AA006160200 HEX BOLT 3/8-16NC x 2" GR5 46AB010 HARDENED FLAT WASHER 5/8 46AB012 HARDENED FLAT WASHER 3/4" 46AC006 LOCK WASHER 3/8" 46AC008 LOCK WASHER 1/2" 46AC010 LOCK WASHER 5/8"...
-
Page 22: Srr15 Teeth Kit
SRR15 TEETH KIT Parts R0315-14E01 ITEM DESCRIPTION UN-14002 ROCK RAKE TOOTH 45AA012160200 HEX BOLT 3/4-16NF. X 2" GR5 47AC01216 STOVER LOCK NUT 3/4-16NF... -
Page 23: Srr - 15 Hose S Kit
SRR15 HOSES KIT Parts R0315-29E01 ITEM DESCRIPTION UN-29028-138 HYD. HOSE 3/8" LP 3/8" JIC(F) x 1/2" ORB(M) X 138" UN-29028-146 HYD. HOSE 3/8" LP 3/8" JIC(F) x 1/2" ORB(M) X 146" UN-29028-176 HYD. HOSE 3/8" LP 3/8" JIC(F) x 1/2" ORB(M) X 176" UN-29028-186 HYD. -
Page 24: Eccentric Assembly
ECCENTRIC ASS. Parts R0415-06E10 ITEM DESCRIPTION R-06033 ECCENTRIC R-06034 SHAFT R-31016 HYDRAULIC MOTOR SUPPORT UN-28007-11 WASHER 1/2" ID X 2 3/8" OD X 3/8" 31055-2 HYDRAULIC MOTOR 500cc 34007-6 BEARING 65 mm (6313-2RS) 34010-8 OIL SEAL 35002-7 INTERNAL RETAINING RING 140mm 35018-3 O-RING SEAL 45AA008130400... -
Page 25: Swd-15H / Srr-15H Hyd. Hoses Kit
SWD-15H / SRR-15H HYD. HOSES KIT Parts R0415-29E03 ITEM DESCRIPTION UN-29009-024 HYD. HOSE 1/2" LP 1/2" JIC(F) x 1/2" JIC(F) X 24" UN-29031-216 HYD. HOSE 1/2" LP 1/2" JIC(F) x 1/2" ORB(M) X 216" 31002-12 ADAP. 1/2 JIC(M) / 1/2 JIC(M) / 1/2 JIC(F)(RUN TEE) 31013-19 ADAP. -
Page 26: 5000 Lbs Hub 01002
5000 LBS HUB Parts 01002 ITEM DESCRIPTION 01004 5000 LBS HUB 01009 WHEEL BOLT 9/16-18 NF x 1 3/4" 01008 CASTLE NUT 1-14 NF 01E03 5000 LBS HUB BEARING AND SEAL KIT... -
Page 27: Warranty
Revision: October 30, 2018 Warranty Policy on new S Houle equipment S Houle Inc. offers a warranty on all new equipment for a period of 1 year after date of retail purchase, according to the terms listed below: 1. AN APPROVAL FROM S HOULE INC. IS REQUIRED BEFORE ANY REPAIRS OR WARRANTY CLAIMS, WITH ACCOMPANYING PHOTOS AND THE EQUIPMENT’S SERIAL NUMBER;... -
Page 28: Product Registration
ONE YEAR WARRANTY COVER PARTS ONLY, EFFECTIVE WHEN THIS FORM HAS ALL APPLICABLE INFORMATION COMPLETED, IS SIGNED BY BOTH THE OWNER AND THE DEALER AT THE TIME OF DELIVERY, THEN FORWARDED TO S HOULE INC. WARRANTY SERVICE MAY BE DENIED IF THIS FORM CONTAINS FALSE INFORMATIO N IS OR INCOMPLETE. - Page 29 S.Houle inc. S.Houle inc. 300 boul. Industriel, 300 Industrial blvd, St-Germain-de-Grantham, Québec, Canada, J0C 1K0 St-Germain-de-Grantham, Québec, Canada, J0C 1K0T Tél : 819 395-4380 Téléc. : 819 395-5516 Phone : 819 395-4380 Fax. : 819 395-5516 Sans frais : 1 888-404-4380 Toll free : 1 888-404-4380 Courriel : info@shoule.com Site : ww.shoule.com...
