Installation Instructions
Please read before installing

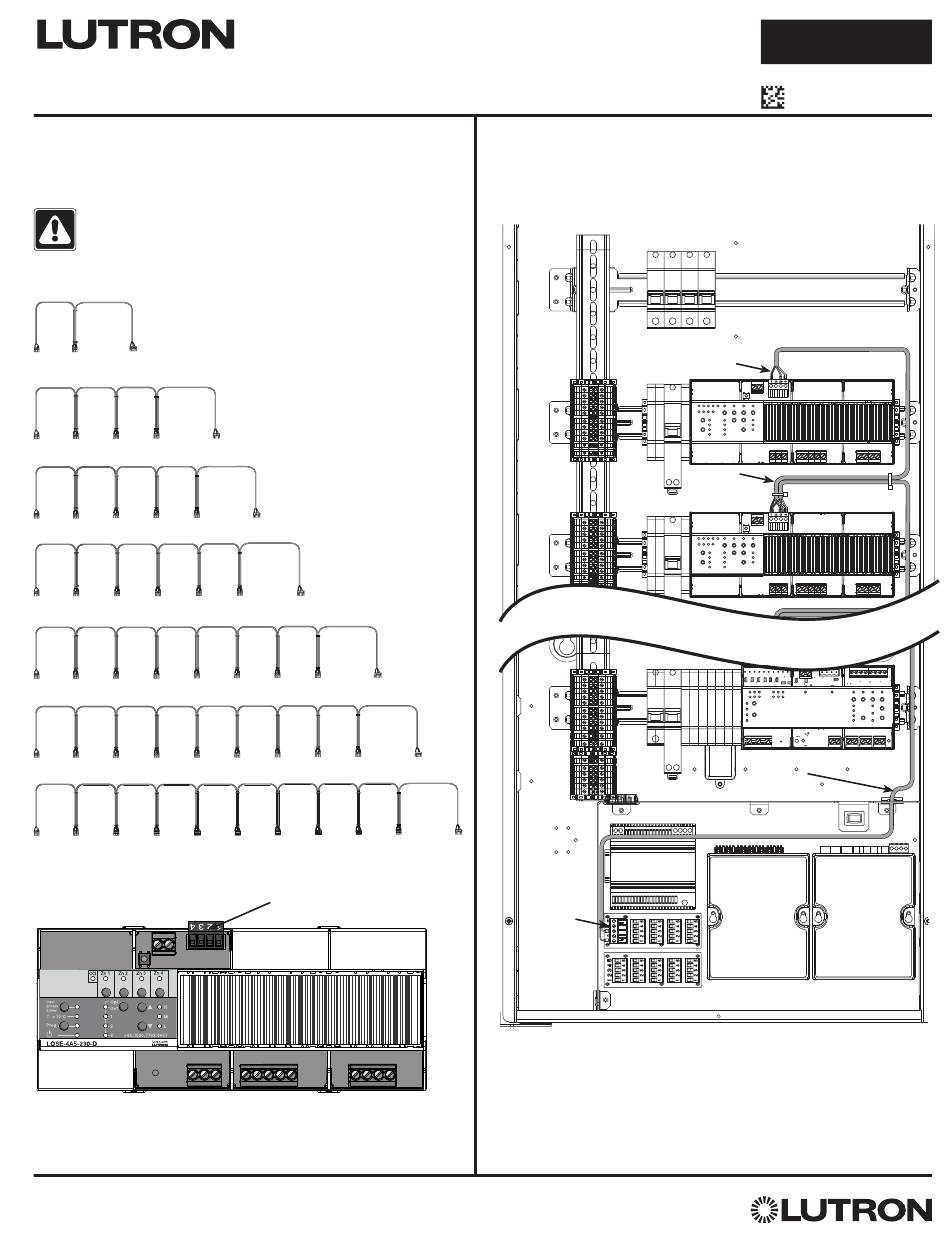

The QS Harness Kit for DIN Panels is meant to connect the QS communication
link between all DIN Power Modules (DPMs) in the panel and terminate to a
wire landing board or processor. The harness connects communication only
(Pins 1, 3, 4).
1. Turn power off to all feeds to the panel.
WARNING – Shock hazard. May result in serious injury or death.
This may be fed by multiple circuits. Locate and lock each supply
breaker in the off position before proceeding.
2. Identify components. Confirm all parts are in the kit.
PDW-QS-2
PDW-QS-4
PDW-QS-5
PDW-QS-6
PDW-QS-8
PDW-QS-9
PDW-QS-10
3. Remove installed 4-position connector shipped with module.
Locate the 4-position connector meant for QS Link wiring on each module in
the panel. Once located, remove all connectors.
4-Position Connector Removal
c
220–240 V~ 50 / 60 Hz 10 A
LQSE-4A5-230-D module shown
Need Help? www.lutron.com/support or call
Customer Assistance
Customer Assistance: USA / Canada: 1.844.LUTRON1 | Mexico: +1.888.235.2910 | Europe: +44.(0)20.7680.4481 | Other Countries: +1.610.282.3800 | www.lutron.com/support
Lutron Electronics Co., Inc. | 7200 Suter Road | Coopersburg, PA 18036-1299 USA
QS Harness Kit for DIN Panels
PDW-QS
Remove
4. Install QS wiring harness. Once all 4-position QS connectors have been
removed from modules, install QS wiring harness as shown below.
Note: Lutron recommends securing any unused connectors.
QS Wiring Harness
5-position
connector
PD8-64-RU10-2L4 panel shown
