Summary of Contents for Custom Audio Cv-DSP Series
- Page 1 Custom Audio SYSTEM Cv-DSP SERIES User's Manual Active DSP-controlled Line Array Revision A0 2023...
-
Page 3: Table Of Contents
Cv-DSP Contents Safety precautions Appearance Technical Features Presets Back panel control and function Suspension process Wire connection Product Application Samples Dimension Specification Trouble Shooting Page... -
Page 4: Safety Precautions
DSP control, as well as speakers made of new materials to design a new set of active line array speaker system with DSP control. Please finish reading the manual before usage, to make sure the best performance of Cv-DSP series. Please keep the manual for reference in the future. - Page 5 • Using mobile phones near the speaker may cause noise. In case of noise, please use the mobile phone far from the speaker. If you need service, please contact Custom Audio service center, agent, or distributor in your area. In order to avoid injury to you or others and loss on equipment or property, please make sure to follow above basic items.
-
Page 6: Appearance
Cv-DSP ♦ Appearance Cv-102DSP Speaker 2. Amplifier module 3. LOGO Coupling bar Mounting hole Grill Rubber feet Handle wheelers Front built-in locking Accessories Back built-in locking Accessories 11. Power led Page... - Page 7 Cv-DSP Cv-122DSP 1. Speaker 2. Amplifier module 3. LOGO 4. Coupling bar Mounting hole 5. Grill 6. Rubber feet 7. Handle 8. Wheelers 9. Front built-in locking Accessories Back built-in locking Accessories Power led Page...
- Page 8 Cv-DSP Cv-182DSP 1. LOGO 2. Handle Hanging pendant Slider Amplifier module Power led Guide hole Grill & Horn Page...
-
Page 9: Technical Features
High efficiency Class D amplifier tech no logy, light weight and more compact. With 3 presets of Cv-DSP Series, users can recall different presets for different applications to get the right sound performance. Powerful protection function with built in DSP processing circuit that can give strong limiter protection to the HF and LF separately. -
Page 10: Presets
• 1st preset: Linear This is the default preset in Cv-DSP series when users operate Cv-DSP for the first time or reset the preset. With this preset, the frequency response of the Cv-1O2DSP between 80Hz-18 KHz is special linear response. -
Page 11: Back Panel Control And Function
Cv-DSP ♦ Back panel control and function ❹ Protect Indicator When the protection system is activated, the LED is on. The protection system will operate in the following situations: The amplifier over heated; DC output; Overload Current; Power activation voltage too high or too low; The amplifier in stand-by mode;... - Page 12 When full range speakers system and subwoofer speaker system are combined, please change the phase according to their distance to get the best sound performance. Presets for Cv-182DSP To match with Custom Audio C series or speaker systems of other brands, Cv-182DSP are designed with 3 different kinds of presets: 80Hz,100Hz and 120Hz.
-
Page 13: Suspension Process

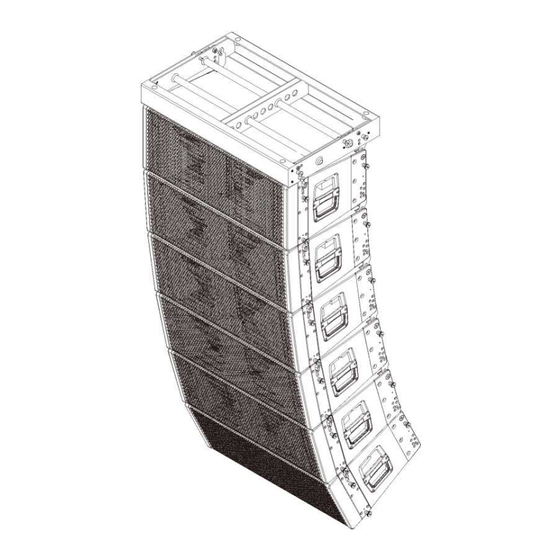

One side of array system can maximum set up 16pcs of Cv-DSP loudspeakers and this is make sure safe when use (Any questions, please contact the service center or agency or dealer of “Custom Audio System” at your area) -
Page 14: Wire Connection
(pops, clicks, thumps). These sounds are unpleasant and can take away from the overall professionalism of the presentation. Always follow the rule that loudspeakers are “last on, first off NOTE: The Cv-DSP series employs a universal power supply, capable of operating the system with input AC power voltages ranging from 100-130VAC(50/60Hz), 220-240VAC(50/60Hz).Use only the power cable that is correct for your location. - Page 15 2. Make sure that the AC mains power cord is not connected. AC mains is the last power connection in the sequence. WARNING!: Do not connect more than five Cv-DSP Series loudspeakers together using POWER the loop-thru power cables (four loop-thru cables, one AC power cord). If you are using 10B-13IV/5B-60IZ loop-thru power cables, make all loop-thru connections prior to connecting to the AC mains.
- Page 16 If either no audio signal is present at the input of a Cv-DSP Series system for 15 minutes, the unit goes into STANDBY and the working station indicator in front of Speaker will from blue (operational mode) to red (standby).
- Page 17 Cv-DSP 16PCS. Notice 2: Make sure the speakers in the line array are aligned, otherwise, it means the pins are not well connected and it will make the speakers detach and thus cause damage of the assembly or injury to people. Notice 3: While hanging up the line array, the speakers and assembly of it should be well- supported.
-
Page 18: Product Application Samples
Cv-DSP ♦ Application Examples Page... - Page 19 Cv-DSP 1. Stacking Guidance Typical application sees below: Notice: Please stack the system on even ground, otherwise it will lose its center of gravity and fall down, thus causing damage of the system or injury of people. Cv-102DSP\Cv-122DSP Cv-102DSP+Cv-182DSP Page...
- Page 20 Cv-DSP 2. Flying Guidance Typical application sees below. Cv-102DSP\Cv-122DSP Page...
- Page 21 Cv-DSP Cv-122DSP 1010 Page...
- Page 22 Cv-DSP Cv-182DSP Page...
-
Page 23: Dimension
Cv-DSP ♦ Technical Specification Cv-102DSP SPECIFICATIONS Cv-122DSP Cv-182DSP Frequency Response (-6dB 55Hz-19KHz 43Hz-20KHz 32Hz-150Hz anechoic chamber) Horizontal Coverage Angle 90° (Symmetrical) Vertical Coverage Angle Depend on the amount of the speaker and curvature of the line array (Symmetrical) Continuous 132dB 132dB 133dB Maximum... -
Page 24: Trouble Shooting
Cv-DSP ♦ Trouble shooting Symptom Possible reasons Solution Power LED not light Cable not connected correctly Connect the cable correctly No sound 1. Cable not connected correctly. 2. Or too small gain. 1. Correct with input socket correctly. 2. Adjust speaker output gain into bigger.
