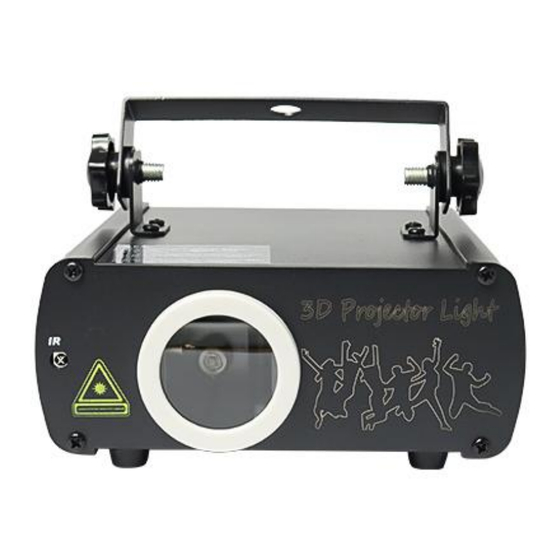

Ehaho L2600 User Manual
  1. Manuals
  2. Brands
  3. Ehaho Manuals
  4. Projector
  5. L2600
  6. User manual

Ehaho L2600 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User's Manual in English
Questions or Concerns?
Our team will solve your any problems in 24hours
Support@ehaho.com
This manual contains important system safety and operation information. Read and understand all instructions
prior to powering on unit the first time, to avoid eye injury and to avoid breaking the law. Keep this manual in
a safe place for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the L2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ehaho L2600

  • Page 1 Questions or Concerns? Our team will solve your any problems in 24hours Support@ehaho.com This manual contains important system safety and operation information. Read and understand all instructions prior to powering on unit the first time, to avoid eye injury and to avoid breaking the law. Keep this manual in...
  • Page 2 TIPS: 1. Please note that all these perfect effects are created "In Smoke Environment". Without smoke, just can see some pattern effects and the dynamic beams and scanning effects will not see. 2. For the best user experience, the sound-activated mode should be used together with a loud volume speaker. Do not use the phone speaker to test the sound-activated mode since the phone speaker is not powerful enough to trigger sound-activated mode.

  • Page 3: Safety Warnings

    General Instructions Unpacking: Thank you for purchasing this product. Please read user guide for safety and operations information before using the product. Keep this manual for future reference. This product can create perfect light programs and effects since it has passed a series of strictly tests before delivery. Please check the attachments listed on the page after opening the carton.

  • Page 4: Installation

    Installation AVOID EYE DIRECT CONTACT! * effects projected 3 meters (9.8 ft) above the audience are eye safe. A survey should be taken to assess the likelihood of any reflective surfaces (such as high windows, chrome bars etc) bouncing stray beams back down into the audience. *Using a fastening clamps on the light and tight to the ceiling in a strong hook..
  • Page 5 *During Assembly, operation, maintenance, please pay special attention to avoid possible exposure to and collateral radiation in excess of the accessible emission limits. *Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. *Protective eye wear is typically required where direct viewing of a Class 3B beam may occur.
  • Page 6 Digital display function: “Menu” is Menu, “Enter” is confirm, “Previous” is UP, “Next” is down. 2. Displaying mode setting: press MENU to switch the modes: preset effects, professional DMX512, simple DMX512. 1-1: preset effects: press ENTER to switch AUTO and Sound mode 1-1-1: Preset AUTO mode: SE+digits, (the fourth Decimal point OFF, digit is the displaying serial number) 1-1-2: preset Sound mode: SE+digits, (the fourth Decimal point ON, digit is the displaying serial number) 1-1-3: press UP/DOWN to change the serial number.
  • Page 7 DMX Control The system only accepts the DMX512 signal of international standard to control the system. DMX Control Parameter Chart Simple DMX mode: Channel Function Value Description ON/OFF 1--255 0--31 Preset effects AUTO mode 32--63 Preset Serial AUTO mode 64--95 Preset mixed AUTO mode Movement 96--127...
  • Page 8 Channel Function Value Description 1-99 AUTO ON/OFF 100-199 Sound active 200-254 Saving Pattern A, OFF 0-49 Out of bounds Crossing 50-99 Out of bounds Reentry Out of bounds and 100-149 Out of bounds Blanking Pattern size 150-199 Pattern zoom out, Out of bounds Blanking 200-255 Saving 0-223 Group 1...
  • Page 9 Channel Function Value Description Original color Fixed Color CH11 setting 1-255 Color change with each n dot Original color 8-15 16-23 yellow 24-31 green 32-39 cyan 40-47 blue 48-55 pink Pattern color CH12 change 65-63 white 64-95 Whole pattern RGB. the bigger value, the faster speed 96-127 Whole pattern YCP.
  • Page 10 Channel Function Value Description 50-99 Out of bounds Reentry 100-149 Out of bounds Blanking Out of bounds and CH19 pattern size 150-255 Saving 0-49 Out of bounds Crossing CH20 No function blank Each value for one pattern; If over the pattern numbers, then CH21 Pattern selections 0-255...
  • Page 11 Channel Function Value Description 32-39 cyan 40-47 blue 48-55 pink 65-63 white 64-95 Whole pattern RGB. the bigger value, the faster speed Pattern color CH29 change 96-127 Whole pattern YCP. the bigger value, the faster speed 128-159 Whole pattern RGBYCPW. the bigger value, the faster speed 160-191 7 Color RGBYCPW.
