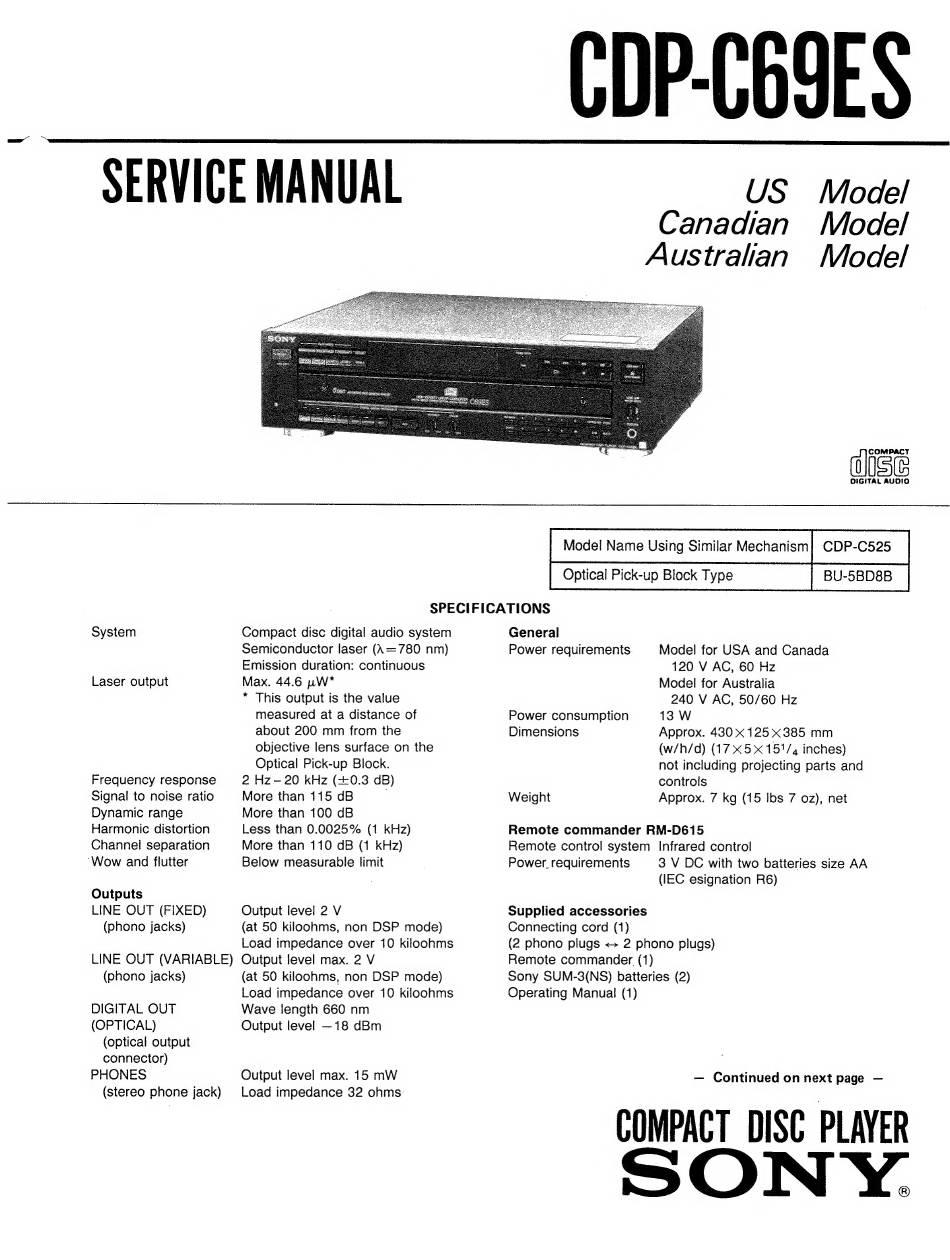

Sony CDP-C69ES Service Manual

SERVICE MANUAL
CDP-CO9ES
US
Canadian
Australian
Model
Model
Mode!
COMPACT
OIGITAL AUDIO
CDP-C525
BU-5BD8B
System
Laser output
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel! separation
'Wow and flutter
Outputs
LINE OUT (FIXED)
(phono jacks)
LINE OUT (VARIABLE)
(phono jacks)
DIGITAL OUT
(OPTICAL)
(optical output
connector)
PHONES
(stereo phone jack)
SPECIFICATIONS
Compact disc digital audio system
Semiconductor laser (A=780 nm)
Emission duration: continuous
Max. 44.6 .W*
* This output is the value
measured at a distance of
about 200 mm from the
objective lens surface on the
Optical Pick-up Block.
2 Hz— 20 kHz (0.3 dB)
More than 115 dB .
More than 100 dB
Less than 0.0025% (1 kHz)
More than 110 dB (1 kHz)
Below measurable limit
Output level 2 V
(at 50 kiloonms, non DSP mode)
Load impedance over 10 kiloohms
Output level max. 2 V
(at 50 kiloohms, non DSP mode)
Load impedance over 10 kiloohms
Wave length 660 nm
Output level —18 dBm
Output level max. 15 mW
Load impedance 32 ohms:
General
Power requirements Model for USA and Canada
120 V AC, 60 Hz
Model for Australia
240 V AC, 50/60 Hz
Power consumption 13 W
Dimensions Approx. 430 x 125x385 mm
(w/h/d) (17X5X151/4 inches)
not including projecting parts and
controls
Weight Approx. 7 kg (15 Ibs 7 oz), net
Remote commander RM-D615
Remote control system Infrared control
Power requirements 3 V DC with two batteries size AA
(IEC esignation R6)
Supplied accessories
Connecting cord (1)
(2 phono plugs < 2 phono plugs)
Remote commander (1)
Sony SUM-3(NS) batteries (2)
Operating Manual (1)
— Continued on next page —
COMPACT DISC PLAYER
SON Y.
