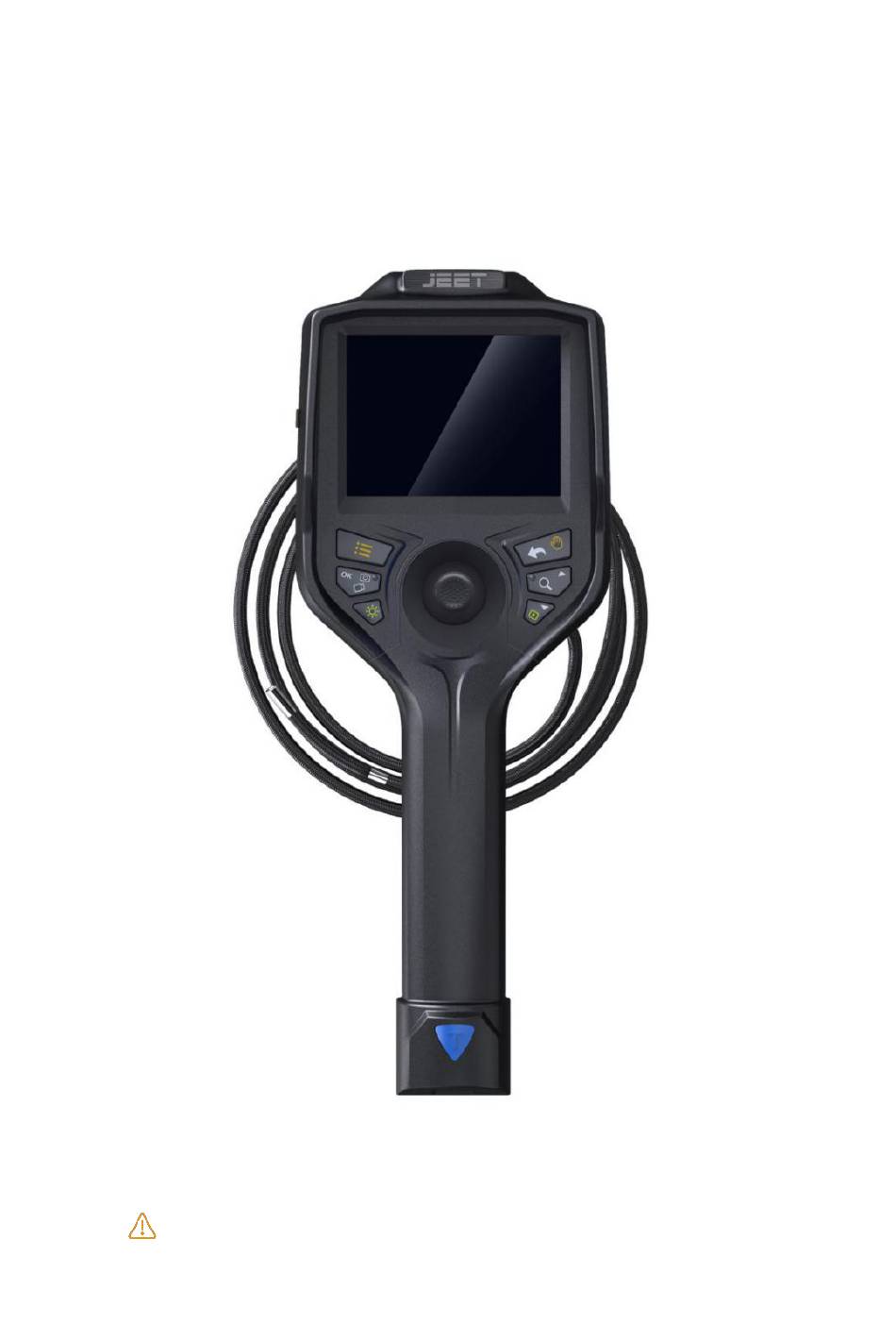

- Page 1 JEET T35H Series Videoscope Product Manual Inspection technology for better future. Please read the manual before using the equipment.
- Page 2 Declaration The manual is only used for T35H series products. All rights reserved. Because the editing time is limited, we do not guarantee that there is no error in this manual. As this manual is used as product series manual, however, the configuration and function of different products may be different, about the specific specification and function, the technic requirements when you purchasing is the only reference.
-
Page 3: Table Of Contents
MENU Instruction Before Use................1 Main Configuration..................1 Button and Port..................2 Application....................4 After-service.....................4 Warning....................4 1 Brief Introduction..................5 1.1 Parameters..................5 2 Operation Steps..................7 2.1 Take out the instrument..............7 2.2 Boot Preparation................7 2.3 Operation................... 8 2.4 Probe articulation control..............8 2.5 After use.....................9 3 Image Capture and Operation.............10 3.1 Photo/Video..................10 3.2 Playback.................. -
Page 4: Instruction Before Use
Instruction Before Use Main Configuration Instrument Case Micro USB/HDMI line Videoscope Base(optional) TF card reader For the specific configuration, please refers to the packing list. Name Specs Note Case 432*386*163 mm Videoscope 277*106*92mm Base 215*84*36mm Optional TF card reader Rechargeable Battery φ18mm×65mm Optional for 2pcs Micro USB Line... -
Page 5: Button And Port
Button and Port working indicator ⑸ playback （6）return （7）zoom in/out ⑴ menu （8）up ⑵ Ok ⑶ scale on/off ⑼ down ⑷ LED light control ⑿ resetting ⒁HDMI ⑽ front view/side view switch ⒂ TF card ⒃ Micro USB port ⒄ Micro USB ⑾... - Page 6 （1） Menu: function setting: image setting/ display setting/language setting/ time setting/version. （2） Ok: in menu setting mode, it serves as a validation button. （3） Scale on/off: in preview mode, long press this button to turn on/off scale function. （4） LED control: control the light from 0-9 levels. （5）...
-
Page 7: Application
Application This product is only applied in the real-time detection and analysis for industrial equipment and automobile production and maintenance. After-service This product has not any spare parts which can be repair by users. Any disassemble, refit or maintenance is not allowed. If damage and losses caused by this, we do not assume any responsibility. -
Page 8: Brief Introduction
1 Brief Introduction 1.1 Parameters Probe Diameter Φ6mm/Φ3.9mm Diameter(mm) Camera Pixels 1,000,000 10mm-100mm 120° Viewing Direction 0° front view / 90°side view (optional) Illuminance ≤50000lx Tube Material tungsten-braided Tube Length 1.5m (customized for other length) Protecting Device of buffer protection device between the host and Durability wear-resistant tube Articulation... - Page 9 Water/Dust Proof probe/tube: IP67 Monitor Structure one hand-held monitor Memory standard TF card 16G, maximum: 32G Data Port HDMI port/Micro USB port Working Time ≥4H, built-in batteries:8H detachable lithium batteries (optional: built-in Batteries lithium batteries) Battery Capacity 3.7V, 3200mAh*2pcs Power Consumption Power Charge DC5V, maximum current:1A Weight...
-
Page 10: Operation Steps
2 Operation Steps 2.1 Take out the instrument Open the instrument case, while taking out the instrument host, set aside and pay close attention to the probe; avoid colliding the probe and scratching probe lens. 2.2 Boot Preparation Check whether the insert tube is well connection with the monitor, the TF card and batteries are installed (one battery also works normally). -
Page 11: Operation
* Connect the monitor with the tube system; * Make sure the monitor contacting with the upper of the handle tightly; * Lock the button on the back of the monitor; * Install the TF card. 2.3 Operation The operation interface is as follows: video mode brightness level TF card... -
Page 12: After Use
The articulation lock device is optional. When the probe is articulated to the suitable position, if screw down this device, the articulation will be locked. front view / side view switch (available for dual lens model) articulation lock device 2.5 After use Before you remove the insert tube from the inspected object, please make sure the probe is reset to be straight. -
Page 13: Image Capture And Operation
3 Image Capture and Operation 3.1 Photo/Video ① Short press “(11) photo/video button” to take photo; ② Long press “(11) photo/video button” to take video. Long press again to exit. In video-taking mode, short press it to capture image. ③ The saved file is named in the form as follows: IMG170725-131702.JPG hour/min./sec. -
Page 14: Connect Pc
3.5 Connect PC When the product is turned off, it can connect PC, plugging Micro USB cable into “(16) Micro USB port”, and plugging the other end USB 2.0 into PC. The monitor will display the following image. 「MSDC」: read the internal storage files; 「... -
Page 15: Solution To Common Problems
4 Solution to Common Problems Problem Reason Solution no battery or power Boot without reaction charge or install battery shortage Auto shutdown battery power shortage charge or change battery system boot failure or remove the battery to re Boot screen freezing battery power shortage install and restart or charge The image cannot be... - Page 16 Manufacturer: Shenzhen Jeet Technology Co., Ltd. Add.: Room 201, No.65 Gaoke Avenue, Nanyue Community, Baolong St., Longgang Dist., Shenzhen, China, 518116 Tel: +86 -755-84863736 Web: www.jeet-videoscope.com...
