Summary of Contents for FREUCAMP W500114

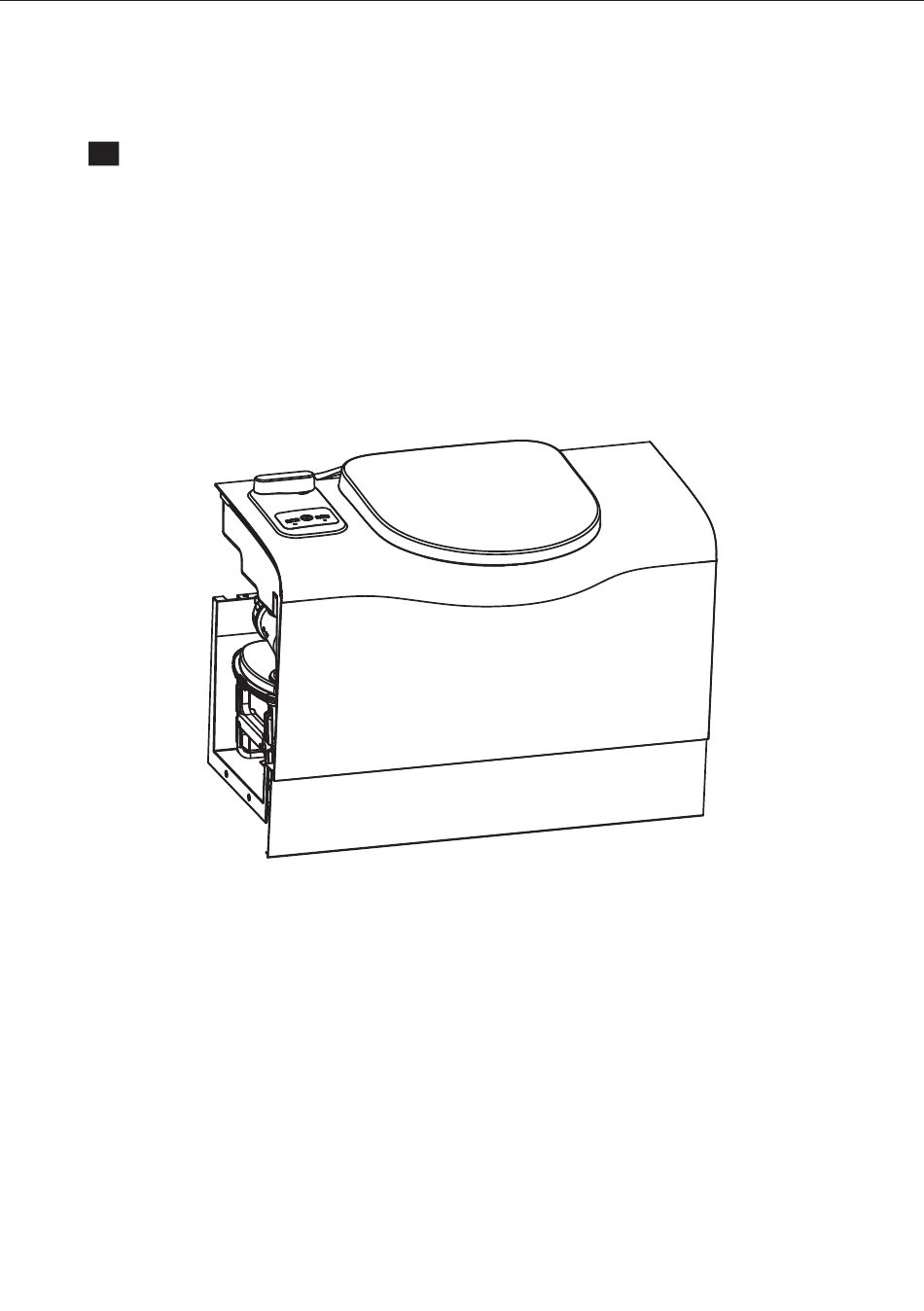

- Page 1 Cassette Toilet User & Installation Manuals Model ： W500114/ W500115 W500116/ W500117...
-
Page 2: Table Of Contents
Contents User Security considerations Main components Before use Control panel logo & indicator Toilet Use Emptying the waste-holding tank Routine Maintenance Maintenance and cleaning Winter use When this product is left unused Installation Technical specifications Installation dimensions Accessories list Service door installation Installation Connecting electricity Others... -
Page 3: Security Considerations
Security considerations Please read this manual carefully before installation and install it in strict accordance with this manual. After reading, please keep this manual properly. In order to avoid injury or property damage to users and others, please strictly observe the safety warnings and cautions. -
Page 4: Main Components
Main components Blade handle Toilet Control panel Water filling funnel Built-in Water filling extension water tank Level indicator Bottom base Decorative board Lower shell of toilet Upper shell of toilet Seat Cover Waste-holding tank Pour out spout Pull handle Tank Wheel Vent button Automatic pressure... -
Page 5: Before Use
Before use Add the cleaner to the waste-holding tank Ensure that all packaging materials have been removed. 1. Remove the waste-holding tank through the service door. 2. Place the waste-holding tank upright and turn the pour out spout upwards. Remove the cap from the pour out spout. - Page 6 Before use Filling the flush-water tank with water (Only suitable for model W500116/W500117) 1. Rotate the water filling extension horizontally and remove the cap. 2. Place the water filling funnel and add water to “MAX” mark. 3. Drag the water filling extension along its direction and drain excess water. +15L 4.
-
Page 7: Control Panel Logo & Indicator
Control panel logo & indicator Flush button Status light Status light Flush button: Press and hold it to flush the toilet. Release it to stop flushing. Light off: Indicates the holding tank is not full and it can be used normally. Flashing red light: Indicates the holding tank is full, need to empty it on time. -
Page 8: Emptying The Waste-Holding Tank
Emptying the waste-holding tank The waste-holding tank has liquid level indicator and water full alarm. When the left light on the control panel blinks red, you will hear a series of beeps by pressing the flushing button, it means the waste-holding tank is too full and must be emptied. When the alarm sound appears, the flushing button will stop after 5s delay. -
Page 9: Maintenance And Cleaning
Maintenance and cleaning 1. Recommends cleaning the toilet regularly to prevent scale. Please wipe the dirty area with a wrung-out soft cloth. Never use household cleaners to clean the toilet. These may cause permanent damage to the gasket and the other components. -
Page 10: Winter Use
3. Empty and dry the waste-holding tank. 4. Rinse and dry the entire toilet thoroughly. 5. Slide the waste-holding tank back into its original position and close the blade. Technical Specifications Model W500114/W500115/W500116/W500117 Direction Dimensions(mm) Net weight(kg) 10.0 Capacity of waste-holding 20.0... -
Page 11: Installation Dimensions
Installation dimensions Unit: mm 273.9 48.1 67.4 86.7 86.7... -
Page 12: Accessories List
Accessories list Screw ST3.5*25mm Toilet Service door Double-thread Self-tapping Wall Bracket Screw ST3.9*24mm Screw ST4.2*25mm Cassette Toilet User & Installation Manuals Model ： W500114/ W500115 W500116/ W500117 Wall Seal Degradation Liquid User Manual... -
Page 13: Service Door Installation
Service door installation 1. Service door dimensions Unit:mm 331.2 2. Opening position Suitable wall thickness: 30-50mm Interior floor... - Page 14 Service door installation 3. Service door installation. This product is only suitable for flat wall installation. And other special walls need to be treated flat before installation. The four sides of the opening must be solid enough to bear the door installation strength. Installation steps: Unit: mm Door opening dimension...
-
Page 15: Installation
Service door installation Installation steps: Unit: mm 5) Fix the four screws on the left after 6) Fix the upper and lower screws. confirmation. 7) Check whether the opening and closing of the door is smooth, whether the rubber strip is compressed after the door is closed, and check the appearance. - Page 16 Installation 1. Install shower 26.8 Unit:mm tray (if applicable) 29.6 2. Install the wedge buckle into the Wall Bracket and install the Wall Bracket to the appropriate height of the vehicle wall with 4 ST3 9 * 24mm screws, and hang the toilet with Wall seal on the pre-installed Wall Bracket in front (both sides need to be hung in place).
- Page 17 floor (if applicable). These screws are not delivered with the machine and need to be purchased additionally. 4. Connecting the water hose (Only suitable for model W500114/W500115) Diameter Inside: 10 mm Outside: 16.5 mm Left-hand toilet:330mm from the side of the toilet...
-
Page 18: Connecting Electricity
Installation 5. Adjust flush pressure (if applicable). Meet the required pressure for the remote pump at the toilet inlet to ensure correct flush. If the pressure is too high, use a slotted screwdriver to adjust the “water pressure control” knob on the solenoid valve. - Page 19 Connecting electricity 2. Use the following parameters to connect the power supply correctly. Connector 4 terminal blocks Blue Brown Position wiring Black Blue Brown Black Cable connections 4 terminal blocks when the toilet is connected to a pressure system 12V DC The red cable is positive.
-
Page 20: Troubleshooting
Troubleshooting Malfunctions Possible reasons Solutions 1.Blade (partially) not closed 1.Fully close the blade Unable to pull out the 2.Due to the clip of waste-holding 2. Lift the clip, then pull out waste-holding tank tank not lifted 1. When the waste-holding tank 1. -
Page 21: Warranty Regulations
Warranty regulations 1. The whole machine of this product is guaranteed free of charge for one year. 2. During the warranty period, the fault caused by normal use in accordance with the instructions (determined by the official staff of the company) will be repaired free of charge. 3. -
Page 22: Product Warranty Card
Product Warranty Card Product name: Product style: Factory number: Manufacture Date: Customer name: Phone: Customer address: Warranty contents: Customer Service Executive: Customer signature: Satisfied Dissatisfied Warranty contents: Customer Service Executive: Customer signature: Satisfied Dissatisfied Warranty contents: Customer Service Executive: Customer signature: Satisfied Dissatisfied... - Page 24 The images of the product may be slightly different from the material objects due to the continuous research and improvement efforts.
