Summary of Contents for Chameye E300

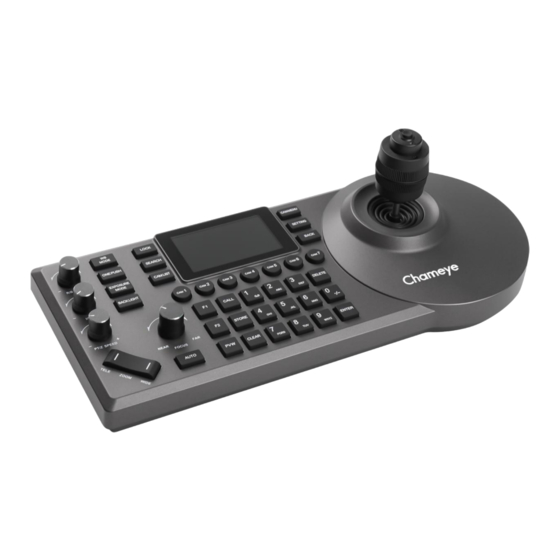

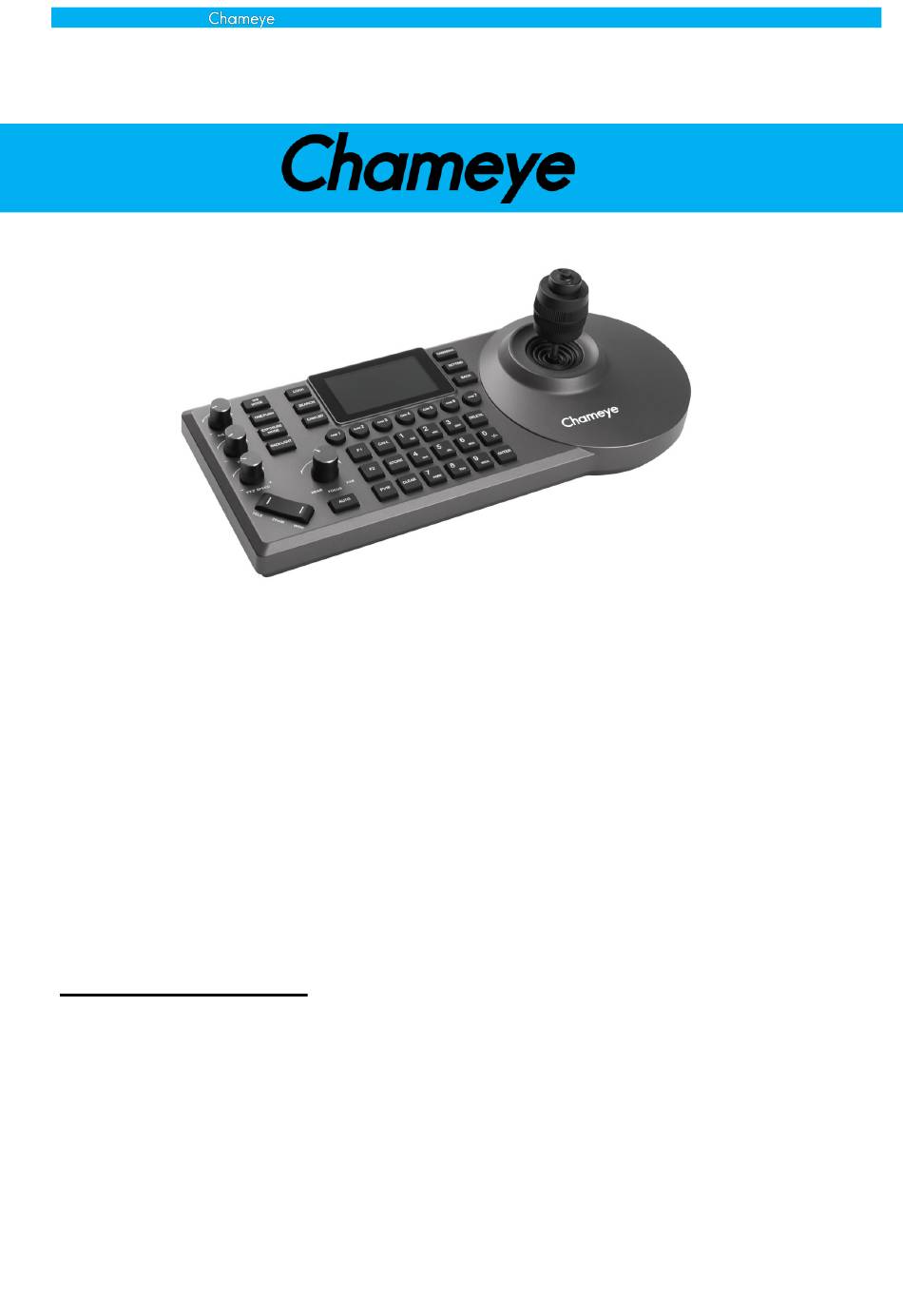

- Page 1 Professional Live Streaming PTZ Camera www.chameye.net IP PTZ Camera Controller >> E300 E300N << （User Manual V1.0) Technical Support: E-Mail: Sandy@chameye.net Website: www.chameye.net Phone: 0086-18588412232 Notice : NDI control protocol can only be used for NDI camera and NDI controller.
- Page 2 You have to change camera or controller’s ip address , to make the first three parts become the same. Chameye cameras and controller are optimized, normally, you don’t need change ip address for them. Add Cameras to Controller ...
- Page 3 PVW function uses camera’s RTSP streaming function. So, you need know your camera’s RTSP streaming URL. Let’s use Chameye camera for example: Chameye camera’s RTSP streaming URL is : Main streaming: rtsp://192.168.1.88/1 Second Streaming: rtsp://192.168.1.88/2 Please change ip address 192.168.1.88 to your camera’s ip address.
-
Page 4: Table Of Contents
Professional Live Streaming PTZ Camera www.chameye.net Contents 1、Contents........................1 2、Tips/Precautions/Affirm.................. 2 3、Feature........................3 4、Product diagram....................4 5、Interface pin definition................... 6 6、Power supply/IP connection/Serial connection........7 7、Keyboard OSD menu settings/Keyboard input /Menu introduction..9 8、Camera assignment..................14 9、Edit shortcut/Interact with the camera/Camera menu control....16 10、Camera menu control..................17 11、NDI protocol control.................. -
Page 5: 2、Tips/Precautions/Affirm
Professional Live Streaming PTZ Camera www.chameye.net Tips Thank you for using our products. In order to enable you to operate this machine proficiently as soon as possible, please carefully read the instruction manual we provide for you, from which you can obtain product safety precautions, product introduction and product usage methods and other related knowledge. -
Page 6: 3、Feature
Professional Live Streaming PTZ Camera www.chameye.net Feature 4D precise Joystick+3D knobs+ergonomic zoom button: Camera parameters control such as white balance, exposure, focus and zoom etc. Built-in 3-inch LCD screen: Support real-time PVW of current camera viewing through up streaming (NDI HX2 and RTSP only). -
Page 7: 4、Product Diagram
Professional Live Streaming PTZ Camera www.chameye.net Product diagram The Frontboard: Button Function: White balance adjustment “WB MODE” white balance mode selection “ONE PUSH” trigger, white balance is triggered when the controller is in “ONE PUSH” mode. “R/B GAIN”white balance adjustment 2. - Page 8 Professional Live Streaming PTZ Camera www.chameye.net Product diagram Screen: Network connection indicator icon“ ”indicates that the network has been connected successfully; Preview video indicator icon“ ” indicates that current device you control has the preview video streaming; Control camera through network, it shows device name, control protocol, device IP address respectively;...
-
Page 9: 5、Interface Pin Definition
Professional Live Streaming PTZ Camera www.chameye.net Product diagram Interface: 1. Tally interface; 2. RS-422/485 interface; Connect with RS-422 cable, up to 7 cameras can be controlled through VISCA protocol; Connect with RS-485 cable, up to 7 cameras can be controlled through VISCA protocol and up to 255 cameras through PELCO protocol. -
Page 10: 6、Power Supply/Ip Connection/Serial Connection
Professional Live Streaming PTZ Camera www.chameye.net Power supply Supply controller ’s power by the following methods 1.DC power adapter power supply (standard 12V) 2.POE power supply (connect the Ethernet IP port to the POE switch) Use CAT6 cable, the maximum distance is 100 meters (802.3af) IP connection Connect “LAN”... - Page 11 Professional Live Streaming PTZ Camera www.chameye.net Serial connection Phoenix head for RS-422 connection Phoenix head for RS-485 connection — 8 —...
-
Page 12: 7、Keyboard Osd Menu Settings/Keyboard Input /Menu Introduction
Professional Live Streaming PTZ Camera www.chameye.net Keyboard OSD menu settings Press the "SETTING" button to open / exit the keyboard menu Use the joystick to operate the keyboard menu a. Move the joystick cursor up and down b. Move the joystick to the right to enter the next menu / switch parameters c. - Page 13 Professional Live Streaming PTZ Camera www.chameye.net Menu introduction 1. Hot Key Camera Information Hot Key √.Device Name Camera 1> √.CAM1 > VISCA √.Protocol √.CAM2 > VISCA √.Address √.CAM3 > Pelco D Pelco 9600 √.Baudrate √.CAM4 > P VISCA Over √. RS-485 √.CAM5...
- Page 14 Professional Live Streaming PTZ Camera www.chameye.net Menu introduction 3. Protocol settings Protocol settings Authorization and information management for the √.NDI > corresponding protocol of the controller. 4. Network DHCP: DHCP ON means network-related IP address Network can be attained automatically (dynamic address), DHCP √.DHCP...
- Page 15 Professional Live Streaming PTZ Camera www.chameye.net Menu introduction 6. Display Theme color: Modify the display color of the controller Display theme (after the modification, power off and reboot to √.Theme Color Green take effect) ; High √.Brightness Brightness: Modify the screen brightness; Key brightness: √.Key Brightness...
- Page 16 Professional Live Streaming PTZ Camera www.chameye.net Menu introduction 10. Language Set the keyboard display language. Language English √.Language English 简体中文 11. About Device Firmware version: display the current program About Device version of the keyboard; √.Firmware Version V0.0.24 > Authorization: display the current authorization status Authorized √.Authorization...
-
Page 17: 8、Camera Assignment
Professional Live Streaming PTZ Camera www.chameye.net Camera assignment Add IP camera to keyboard 1. Search the local network and add the IP camera to the keyboard; Press "SEARCH" button to search IP camera; The keyboard screen displays "Searching for devices, please wait";... - Page 18 Professional Live Streaming PTZ Camera www.chameye.net Camera assignment 2. Manually add VISCA_IP, VISCA_TCP cameras to the keyboard: Click "SETTING" to open the keyboard menu, select the "Device List" column, select the "Add Device" column, modify thecorresponding camera parameters and click"Save" (when the IP address needs to fill in an odd number, add 00 before the odd number, such as 005);...
-
Page 19: 9、Edit Shortcut/Interact With The Camera/Camera Menu Control
Professional Live Streaming PTZ Camera www.chameye.net Edit shortcut Click "SETTING" to enter the menu, select the "Shortcut Key" column, you can edit 7 shortcut keys, take the shortcut key CAM1 as an example, you can manually modify the device parameters;... -
Page 20: 10、Camera Menu Control
Professional Live Streaming PTZ Camera www.chameye.net Camera menu control Set, recall and delete preset position set preset position .Move the camera to the desired position; b.①Thepreset position mode is 10: first press the "STORE" key, and then press the number "1"... -
Page 21: 11、Ndi Protocol Control
Professional Live Streaming PTZ Camera www.chameye.net Camera menu control Adjust image parameters Use the image adjustment panel to set or adjust image parameters (only applicable to VISCA and VISCA_IP protocols, PELCO /ONVIF/NDI protocol image adjustment function isincomplete); Backlight compensation Turn on/off the camera's backlight compensation via the "BACK LIGHT" button;... -
Page 22: 12、Specifications
Professional Live Streaming PTZ Camera www.chameye.net Specifications Keyboard Parameters Joystick 4D precision Joystick 3Dknobs,support scale rotation to addjust parameters, support button Knobs Buttons High-Quality silicone buttons, support white and red two-color backlight Screen 3″LCDcolordisplay Shortcut Button Support 7 camera shortcut button settings...
