Summary of Contents for HULME MARTIN HEAT SEALERS HM1800CD

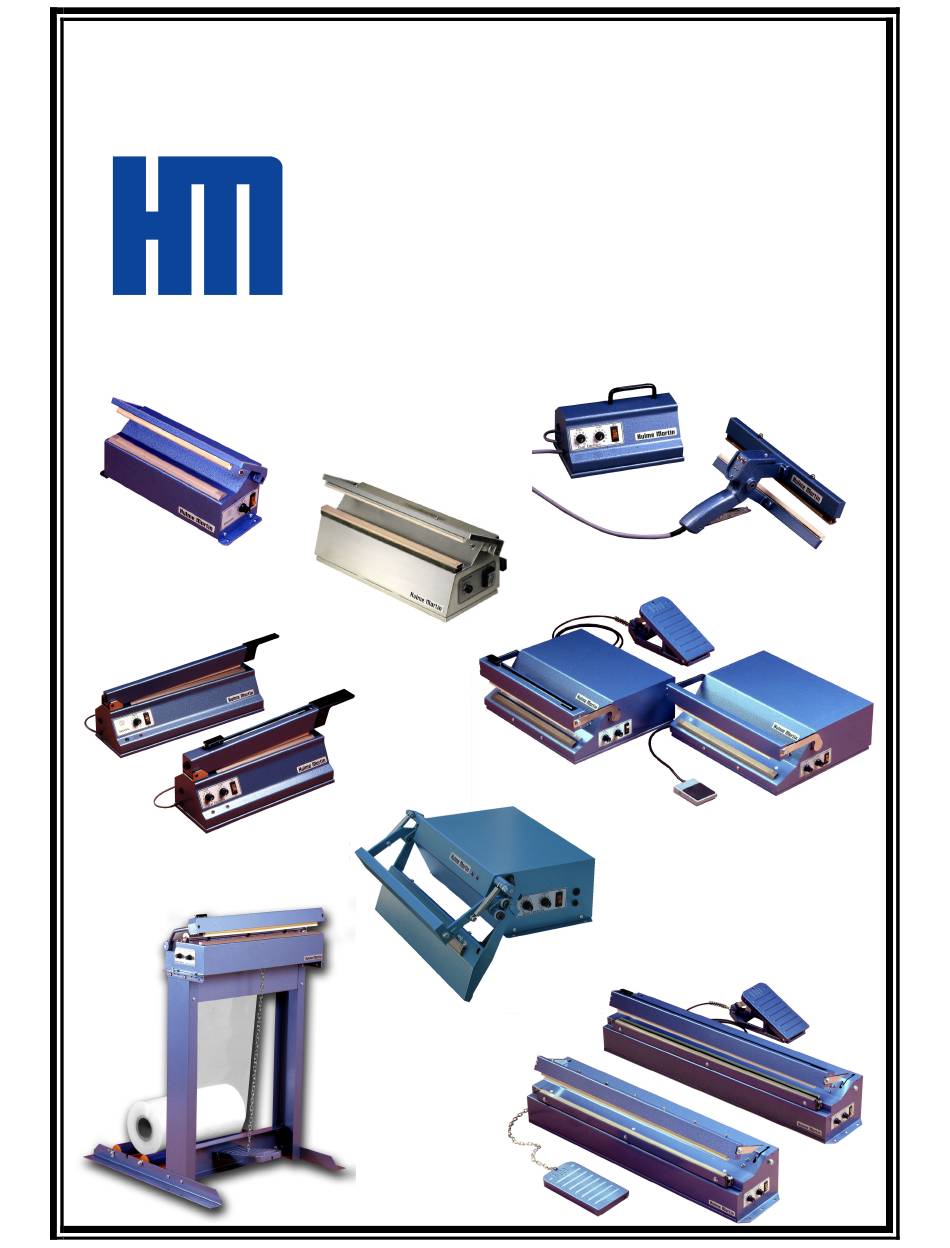

Page 1
HM1800CD Operating Instructions HULME MARTIN HEAT SEALERS www.hulmemartin.co.uk HULME MARTIN HEAT SEALERS...
Page 3
SAFETY INSTRUCTIONS – HEAT SEALING EQUIPMENT Protection against hazards arising from the electrical equipment Safety warnings and instructions in the operators instruction sheets and attached to the machine should be followed with care. The equipment has an earthed power cable with integral 13-amp fuse to BS 1363/A fitted with a 5-amp fuse.
Page 4
Protection against non electrical hazards 1. The equipment is designed to be operated on a flat, level surface to ensure machine stability. In the case of chain operated machines, the equipment should be securely screwed to the workbench using the flanges provided, to avoid dislodging the machine when the pedal is depressed.
Page 5
IMPULSE SEALING EQUIPMENT To ensure that satisfactory sealing performance is achieved and that service life of consumable spares (such as element wire, Teflon and rubber pressure pads) are maximised, it is necessary to understand the operating principles of this type of equipment. 1.
Page 6
6. If the Teflon is not replaced when showing signs of wear, the polythene will stick and seal quality will deteriorate. Also the rubber pressure pad will start to wear and if this is allowed to continue to the stage where the surface of the pad is burnt and uneven, the resulting ‘air gap’...
Page 7
1800 CD POLYTHENE HEAT SEALER OPERATING INSTRUCTIONS General Before connecting the machine to the electricity supply, check the operating voltage on the name plate attached to the rear of the machine. The wires in the mains lead are coloured in accordance with the following code:- Green &...
Page 8
The heating time is variable between 0 and 3.5 seconds using the external control knob. The cooling cycle is also adjustable to allow a sufficient cooling time before the pressure bar is released. If the foot pedal is released before the LED lights go out, insufficient cooling can result in premature wear of the teflon barrier tape and other consumable spares.
Page 9
SPARES The following consumable spares will enable the machine to be serviced as required. 180211 Element Assembly complete - for Duo model each 180111 Element Assembly complete - for CD model each 180203 Teflon Barrier Tape pkt 5 180205 Rubber Pressure Pad each 180204 Underwire Insulating tape...
Page 10
Spare Items For: 1800 Cutter Element Bar Assy 180111 Teflon Barrier Tape 180203 Element Wire Strip 180206 Insulating Tape 180204 Soft Rubber Pad 180205 Black Neoprene Pad 180265 Chain Hook 130010 Safety Cutter Assembly Cutter Blades...
Page 11
Using the 445 Safety cutter assembly Safety Tab For transportation and additional safety, the manual cutting device is fitted with a locking ‘safety tab’, which must be removed before the cutter can be used. To remove the safety tab hold it firmly and pull it horizontally, with a small rocking motion, away from the blade carrier marked ‘caution cutter’...
CHANGING THE BLADE Safety Cutter Assembly part No.445 Safety Tab Activating spring part No. 446 Blade carrier marked ‘Caution cutter’ Black carrier handle Retaining button Cutter Blade part No.490 Always use caution when changing the blade...
Page 13
ISO 9000 Quality Management Hulme Martin Heat Sealers Ltd operates from documented quality management systems to ensure we meet our customers’ requirements. We conform to the required directives as listed above, and our equipment meets CE requirements. Customers are welcome to visit our factory to inspect our documentation and manuals.
Page 14
Teflon barrier tapes, rubber pressure pads and transportation costs are excluded from the warranty. HULME MARTIN HEAT SEALERS LTD Unit 5B, Country Business Centre, White Cottage Farm, Lucas Green Road,...
