Taramps CR X5 Plus Instruction Manual

Electronic 5 way crossover
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

The installation of this product must be made by a qualified professional.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR X5 Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Taramps CR X5 Plus

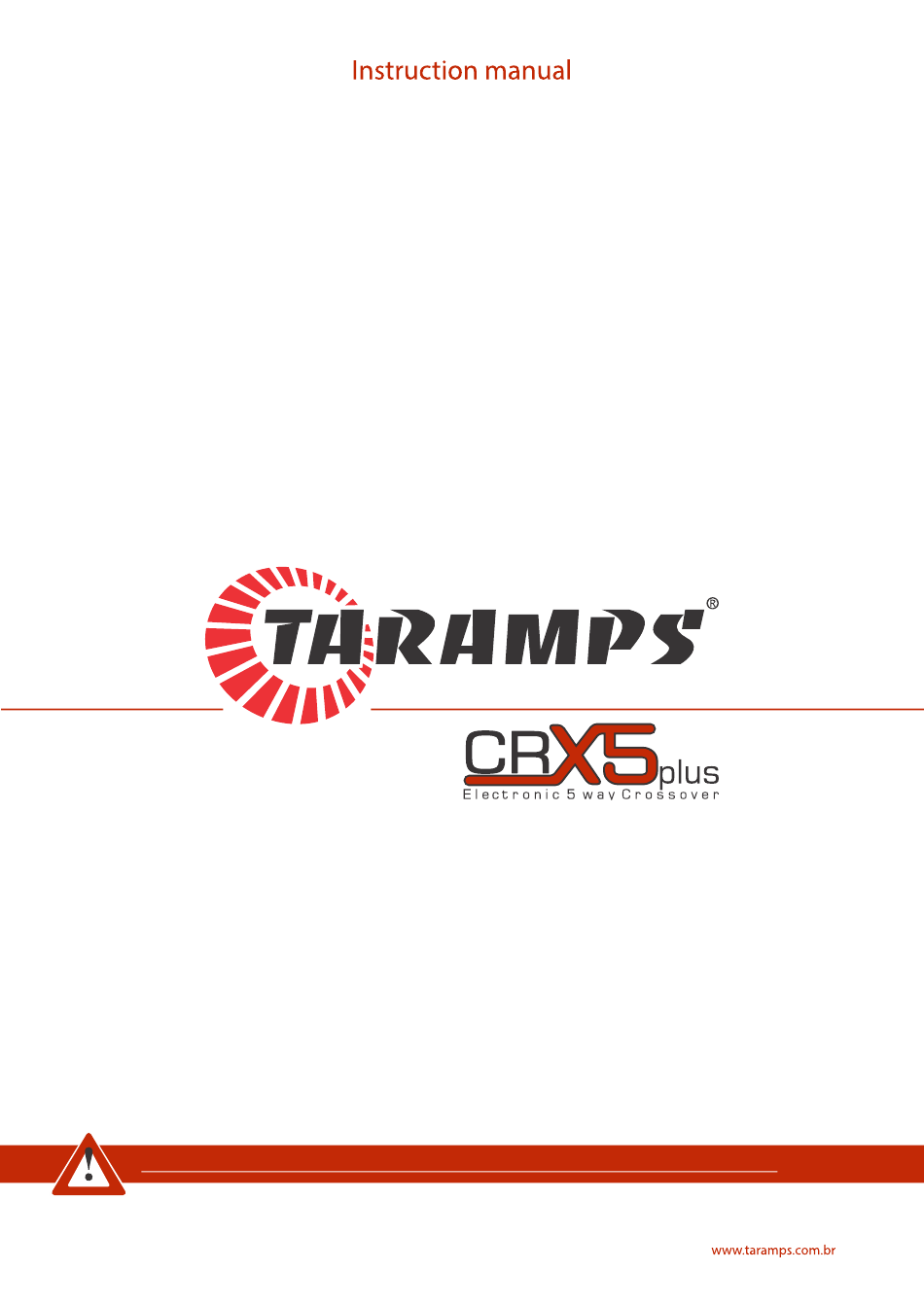

  • Page 1 The installation of this product must be made by a qualified professional.

  • Page 2: Term Of Warranty

    07 • Technical features Term of warranty TARAMPS, located on Abilio Daguano Street 274, Res. Manoel Martins – Alfredo Marcondes, SP - Brazil, ZIP CODE 19180-000, guarantees this product against any defects on terms of project, making, assembling, and/or with solidarity, due to project vices which cause it improper or inadequate to its original use within 12 months from the date of purchase.

  • Page 3: Safety Requirements

    Failure to heed the instructions will result in risk of injury to user or product damage. Taramps reserves the right to modify the contents of this document at any time without prior notice and does not have the obligation to apply the changes in units which were previously produced.
  • Page 4 Crossover overview 1 Signal output (R + L) 2 Signal inputs sent directly from a CD / DVD Player 3 Signal inputs (SUB) sent directly from a CD / DVD Player (Optional) 4 Signal output, bass / subwoofer (LOW) (R + L) 5 Signal output, LOW MID (R + L) 6 Way signal output HIGH MID (R and L) 7 Way signal output HIGH (R and L)
  • Page 5 PASS THRU PHASE (0 and 180°) - Inverts the phase from 0 to 180°, to help reduce cancellations from one path to another, or from one system to another. Polarity inversion FASE 0º FASE 180º LEVEL - PASS THRU output volume control. PASS THRU - FLAT signal output, that is, without any frequency cut, normally used to send the signal to another sound system.
  • Page 6 LOW MID WAY HPF - Adjustment of the lower cutoff frequency. Variable from 30Hz to 600Hz that determines the beginning of the operating frequency of the LOW MID path. Audio track - 12dB 600Hz 10KHz 30Hz LPF - Upper cutoff frequency adjustment. Variable from 600Hz to 10KHz that determines the end of the operating frequency of the LOW MID track.

  • Page 7: Input And Output Connections

    It is mandatory to install a 1A protection fuse closest to the battery. CAUTION IMPORTANT: Any connection to the Crossover must be made with it turned off. RCA Cables Taramps SUB OUTPUT (opcional) OTHER AMPLIFIER OTHER SYSTEM SOUND Compression Subwoofers...

  • Page 8: Technical Features

    Technical features Number of ways:..................4 + 1 Pass Thru Via Pass Thru (R+L) Selectable phase:..................0/180 degrees Variable level....................-infinite ~ +6dB Via Low (R+L) Mono Subsonic Filter:...Selectable (Bypass/40/60/80Hz) (-24dB/8ª butterworth) Low Pass Filter:......Variable 100Hz ~ 2KHz (-12dB/8ª Linkwitz-Riley) Bass Boost:................Variable 0 ~ +10 dB (40Hz) Selectable Phase::..................0/180 degrees Selectable Phase:...................-infinite ~ +10dB Via Low Mid (R+L) Mono...
  • Page 9 Manufactured by: TARAMPS ELECTRONICS LTDA CNPJ / TAX ID: 11.273.485/0001-03 Street: João Silvério, 121 • Res. Manoel Martins Alfredo Marcondes - SP Made in Brazil...
