INFOSEC UPS SYSTEM SNMP II Pro Quick Install

Quick Install
Guide d'installation rapide
SNMP II Pro agent / Agent SNMP II Pro
(Ref. 61812)
Suitable for / Compatible avec :
E3 Live

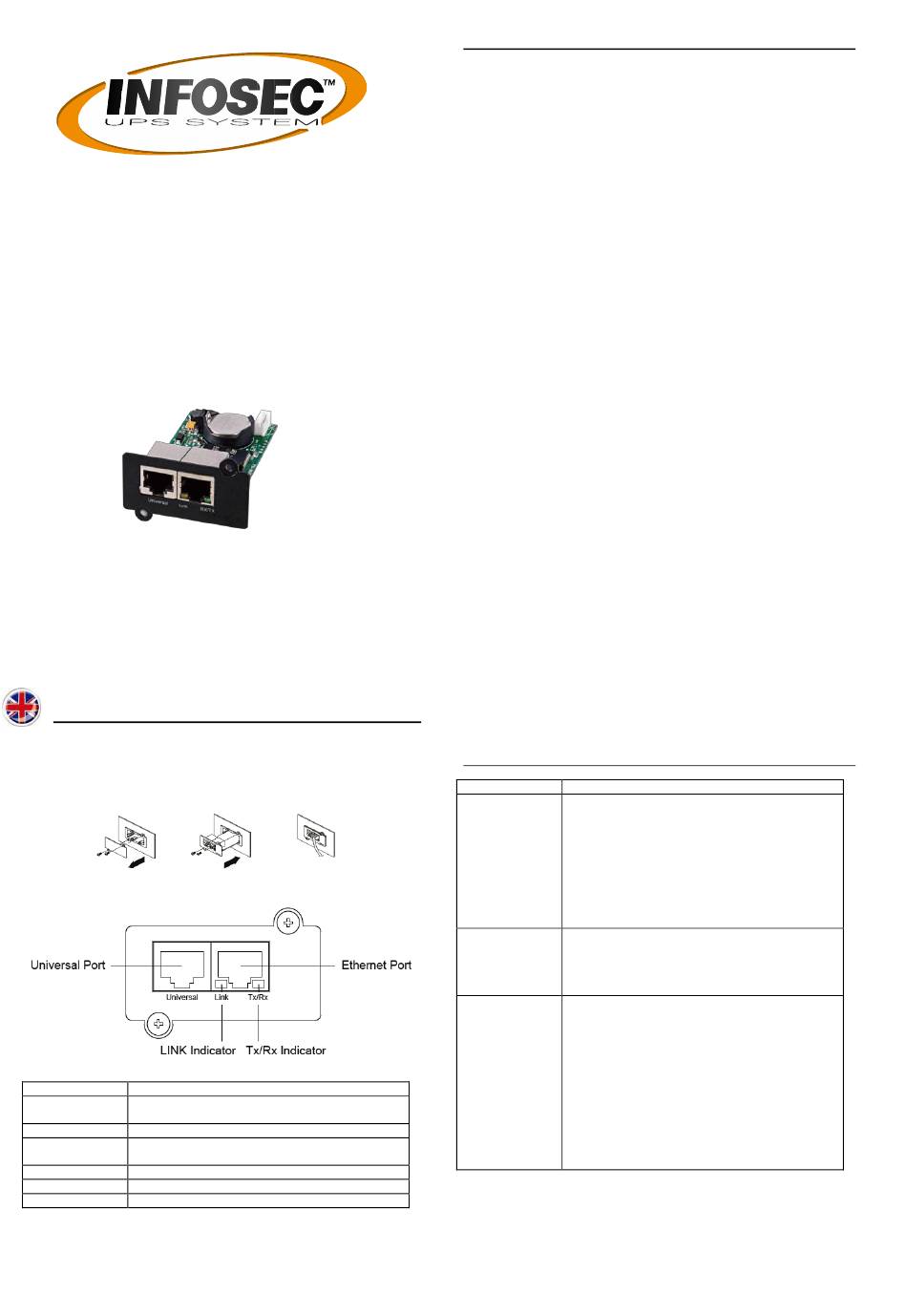

1. Hardware Installation
1. Remove the two retaining screws of the expansion slot, and then remove
the cover.
2. Install the SNMP II Pro Card into the expansion slot.
3. Insert and tighten the retaining screws.
4. Connect an Ethernet cable to the Ethernet port of the SNMP II Pro Card.
NOTE: The SNMP II Pro Card is hot-swappable, so you do not need to turn
off the device to install it.
Definitions for LED Indicators
Link LED color Condition
Off The SNMP II Pro Card is not connected to the
Network/ or the SNMP Card power is off
On(Yellow) The SNMP II Pro Card is connected to the Network
Tx/Rx LED
color
Off The SNMP II Pro Card power is off
On(Green) The SNMP II Pro Card power is on
Flash Receiving/transmitting data packet Reset finished
1
INFOSEC UPS SYSTEM – 15 rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
Hot Line Tel: +33 (0)2 40 76 15 82 – fax: +33(0)2 40 94 29 51 – hotline@infosec.fr – 07 19 AA 36 203 17
2. Configure the IP address for the SNMP II Pro Card
Method 1: Using the Power Device Network Utility
1. Install the Power Device Network Utility available for download on the
Network SNMP product web page at www.powermonitor.software.
2. After installation completes, run the "Power Device Network Utility".
3. The main dialog of the Power Device Network Utility program is shown in
Figure 1. The configuration tool will display all SNMP devices present on
the same network subnet. The "Refresh" button is used to search the local
network subnet again.
4. Select the SNMP Card you are setting up. Click on the Tools menu and
select "Device Setup" or double click the SNMP Card you want to configure.
5. You can modify the IP Address, Subnet Mask, and Gateway address for
the Device MAC Address listed in the Device Network Settings window, as
shown in Figure 2. The factory default IP Address is 192.168.20.177 and
the default Subnet Mask is 255.255.255.0
6. Modify the IP, subnet mask or gateway address. Enter the new
addresses into the corresponding fields and then click "Save".
7. You will need to enter a User Name and Password for the SNMP Card in
the authentication window:
- Default user name: admin
- Default password: admin
8. If the IP address change is successful, you will see a message
confirming the IP set up is OK
Method 2: Using a command prompt
1. Obtain the MAC address from the label on the SNMP Card. Each
Management Card has a unique MAC address.
2. Use the ARP command to set the IP address. Example:
To assign the IP Address 192.168.10.134 for the SNMP Card, which has a
MAC address of 00-0C-15-00-FF-99 you will type in the following in the
command prompt from a PC connected to the same network as the SNMP
Card. (1) Type in "arp -s 192.168.10.134 00-0C-15-00-FF-99" then press
Enter.
3. Use the Ping command to assign a size of 123 bytes to the IP. (1) Type
in "ping 192.168.10.134 -l 123" then press Enter. (2)
received, your computer can communicate with the IP address.
WEB INTERFACE Login User Account
You will need to enter a User Name and Password to login to the interface.
There are two user account types:
1. Administrator
- Default username: admin
- Default password: admin
2. View only
- Default username: device
- Default password: device
The administrator can access all functions, including enable/disable the
view only account. The viewer can access read only features but cannot
change any settings.
3. Troubleshooting
Problem Solution
Unable to Check the LED status, the condition is normal
configure the when the yellow and green LEDs are both on. If
SNMP Card by green LED is off :
►Check if the SNMP Card is properly seated in
method 1 or
method 2 the device and the device power is turned on.
If yellow LED is off :
►Ensure the network connection is good.
Ensure the PC being used is on the same network
subnet as the device you are trying to
communicate with.
Unable to ping Use method 1 and/or method 2 to get/set a correct
the SNMP Card IP address for the SNMP Card.
If the PC being used is on a different network
subnet from the SNMP Card, verify the setting of
subnet mask and the IP address of gateway.
Lost the user Follow below steps to reset to the default setting.
name and Remove the card from the UPS without turning the
password UPS off.
Remove the jumper from the reset pins. Do not
dispose of the jumper. Insert the card into the
expansion port.
Wait until the Green LED is flashing (the frequency
of the ON/OFF flashing is once per second).
Remove the card again.
Place the jumper back onto the Reset pins.
Install card into the expansion port again and
tighten the retaining screws.
If the replies are
K01-C000599-01
