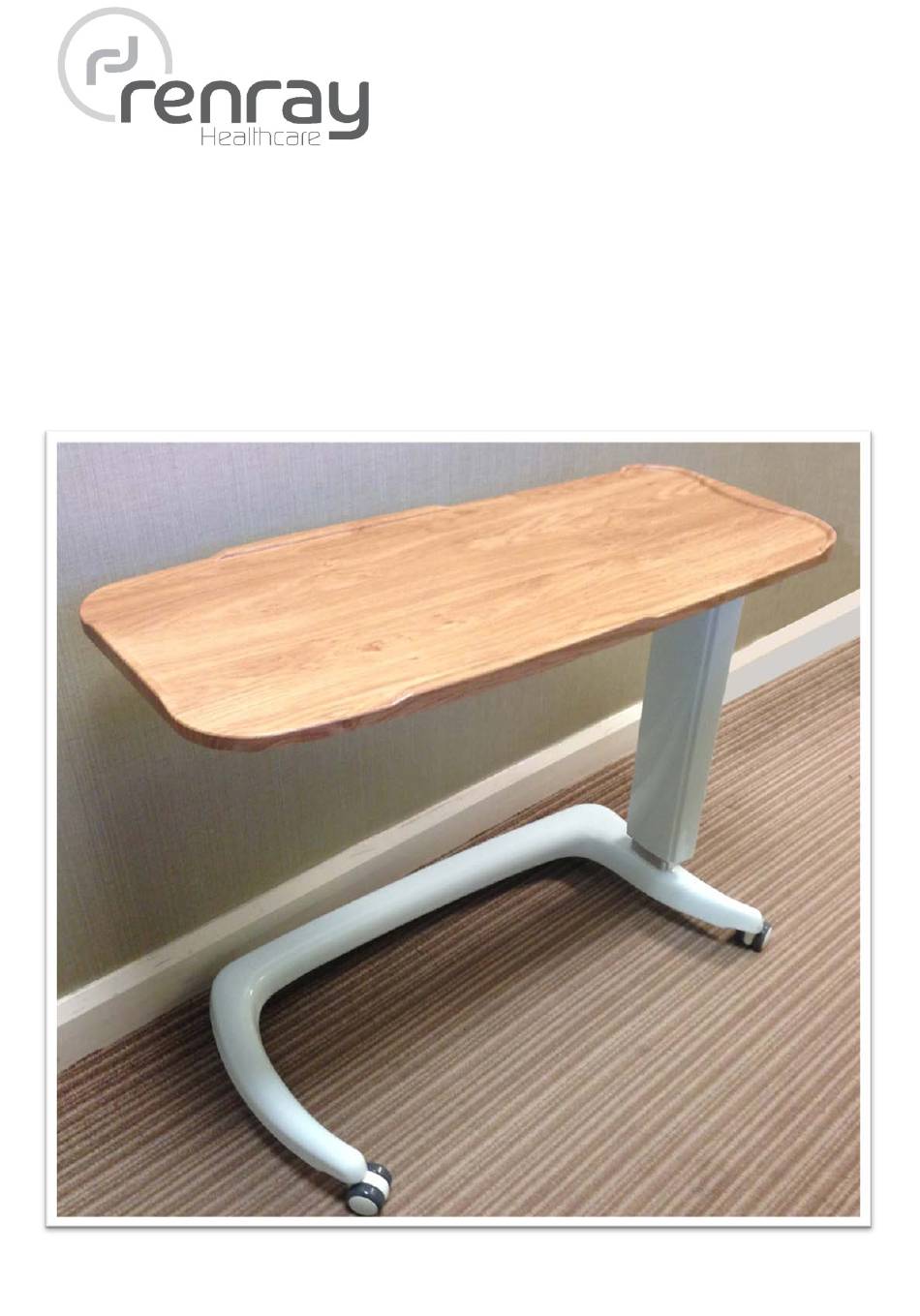

- Page 1 ELITE OVERBED TABLE RANGE Models: E10 – Elite Overbed Table Non Tilting Top E11 – Elite Overbed Table Tilting Top INSTRUCTIONS FOR USE Designed with you in mind Mar 2022...
-
Page 2: Table Of Contents
Contents Introduction .................. 2 Assembly ..................3 Operation ..................4 Cleaning and Maintenance ............7 Warranty and Service ..............8 Dimensions and Data ..............9 Warnings and Cautions WARNINGS given in this manual identify possible hazards in procedures or conditions, which if not correctly followed, could result in death, injury or other serious adverse reactions. -
Page 3: Introduction
1. Introduction The Elite E10, and E11 are overbed / overchair tables that provide patients with a firm, flat surface suitable for eating, writing, reading, etc. Single-column construction and adjustable height makes them suitable for use with most types of beds and chairs. -
Page 4: Assembly
2. Assembly General The table may be supplied with the castors packed separately to prevent transit damage. Fit the four castors by pushing the castor stems (A) into the sockets on the table base (B) until the castors lock into position. Fitting the castors... -
Page 5: Operation
3. Operation To lower the table height: Height Adjustment Lift the height adjustment lever (C) and push the table down. To raise the table height: Lift the height adjustment lever (C) and allow the table to rise under the action of the internal gas spring. - Page 6 Tilt Adjustment The tilt angle of the table may be adjusted to one of (models E11) six positions. To increase the tilt angle: Hold the edge of the table as shown (D). Lift the table until the ratchet (E) engages at the required position.
-
Page 7: Cleaning And Maintenance
12 months. All service or repair activities must be carried out by properly qualified and trained persons approved by Renray Healthcare. Check that the height adjustment mechanism functions smoothly and that the table locks securely in position over the full range of table height. -
Page 8: Warranty And Service
4. Warranty and Service Renray Healthcare’s standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this, or any other... -
Page 9: Dimensions And Data
5. Dimensions and Data E10 and E11 Overbed / Overchair Tables Table top dimensions 90 x 42 cm max. Height adjustment range 71 to 108 cm Tilt angles (approx.) 0/24/31/37/42/47 ( E11 only) Product weight (approx.) 17 kg Safe working load 25 kg evenly distributed... - Page 10 Renray Healthcare Road Five Winsford Industrial Estate Winsford Cheshire CW7 3RB Telephone 01606 593456 01606 861354 E-mail sales@renrayhealthcare.com Internet www.renrayhealthcare.com As our policy is one of continuous development we reserve the right to modify designs and specifications without prior notice.
