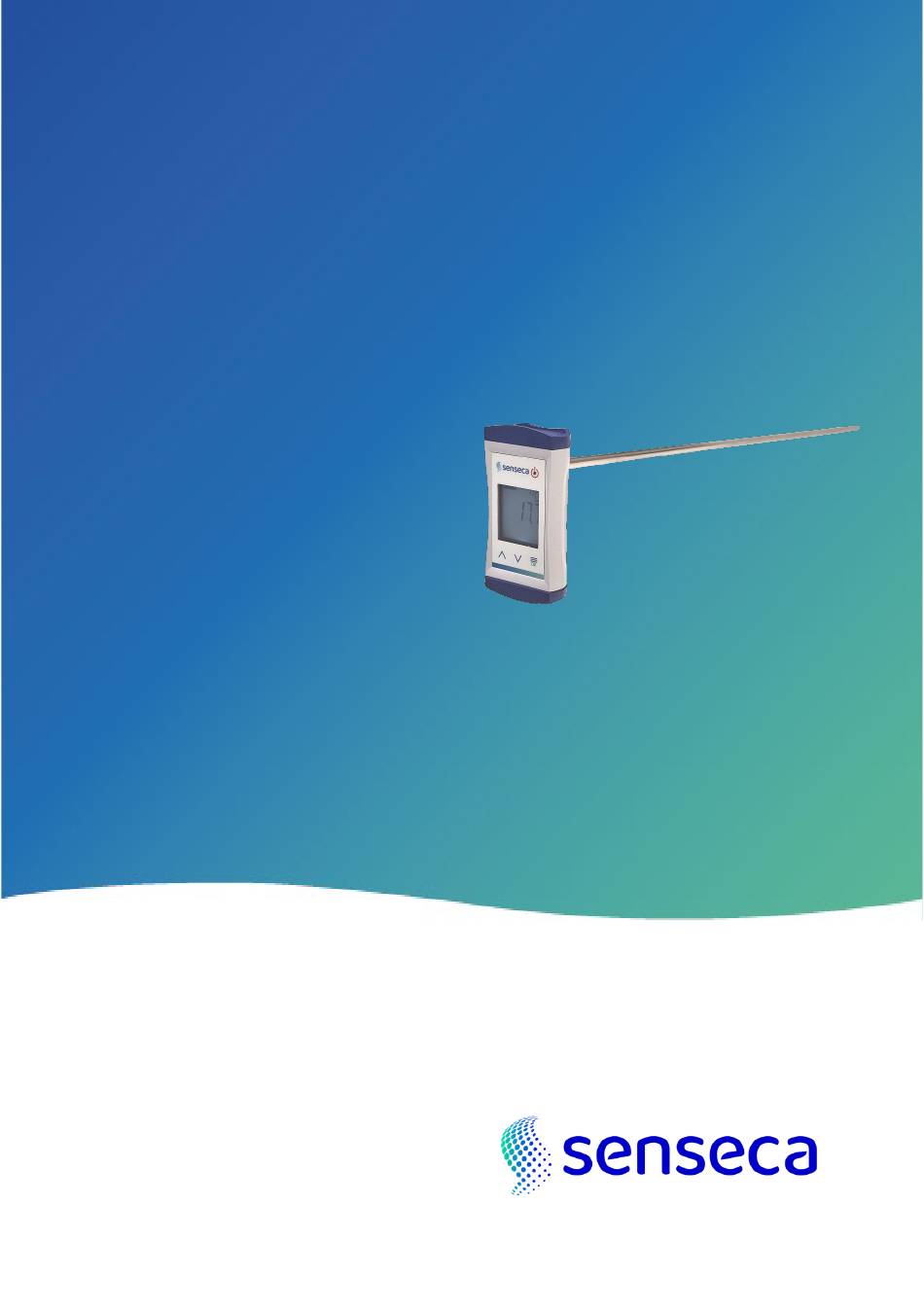

- Page 1 OPERATING MANUAL ECO 122 One-hand soil-/compost- thermometer B-H86.0.08.DK2-4.0...
-
Page 2: Table Of Contents
ECO 122 - One-hand soil-/compost-thermometer Contents Contents About this documentation ....................... 4 Foreword ..............................4 Legal notices............................4 Further information ........................... 4 Safety ..............................5 Explanation of safety symbols ....................... 5 Foreseeable misuse ..........................5 Safety instructions ..........................6 Intended use ............................7 Qualified personnel .......................... - Page 3 ECO 122 - One-hand soil-/compost-thermometer Contents Error and system messages ....................16 Technical data ........................... 17 Disposal ............................18 Service ............................19 10.1 Manufacturer ............................ 19 10.2 Calibration and adjustment service ..................19 B-H86.0.08.DK2-4.0 Page 3 of 20...
-
Page 4: About This Documentation
ECO 122 - One-hand soil-/compost-thermometer Safety 1.1 About this documentation Foreword Read this document carefully and familiarize yourself with the operation of the device before you use it. Keep this document ready to hand and in the immediate vicinity of the device so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 122 - One-hand soil-/compost-thermometer Safety Safety Explanation of safety symbols Danger! This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Caution! This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
ECO 122 - One-hand soil-/compost-thermometer Safety Safety instructions Caution! Risk of injury at the temperature sensor! Devices with insertion probes entail the risk of stab injuries due to the pointed probe design. Handle insertion probes with care! Fit a protective cap on the measuring probe if probe is not in use! ... -
Page 7: Intended Use
ECO 122 - One-hand soil-/compost-thermometer Safety Intended use The device is a water-protected thermometer for precise temperature measurements . The special design of the ECO 122 makes it to a convenient insertion thermometer for: soft soils • compost • agricultural windrows •... -
Page 8: The Device At A Glance
ECO 122 - One-hand soil-/compost-thermometer The device at a glance The device at a glance LCD Display Front view Display elements Battery indicator Evaluation of the battery status Unit display Display of units or type of mode, min/max/hold Main display... -
Page 9: Operating Elements
ECO 122 - One-hand soil-/compost-thermometer The device at a glance Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button... -
Page 10: Operation
ECO 122 - One-hand soil-/compost-thermometer Operation Operation Opening the configuration menu 1 Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Alarm No alarm active... -
Page 11: Adjustment Of The Measuring Input
ECO 122 - One-hand soil-/compost-thermometer Operation Parameter Values Meaning L,TE Backlight Backlight deactivated 15, 30, 60, 120, 240 Automatic shut-off of the backlight after a select-ed time in seconds, during which no buttons have been pressed No automatic shut off of the backlight °(... - Page 12 ECO 122 - One-hand soil-/compost-thermometer Operation Parameter Values Meaning T.SL Gradient correction of the temperature 0.00 No gradient correction of the temperature -5.00 … 5.00 Gradient correction in % Formula used by device: Display = (measured value - T.OF) * (1 + T.SL / 100) Temperature = °C:...
-
Page 13: Measurement Basics
ECO 122 - One-hand soil-/compost-thermometer Measurement Basics Measurement Basics Sensor/device accuracy Penetration into the medium to be measured should be done with- out exerting much force. Try to exert the force in the axis of the probe tube to avoid creating a lever effect on the housing. -
Page 14: Response Time
ECO 122 - One-hand soil-/compost-thermometer Operation and maintenance 5.2.4 Response time An adequate wait time must be observed for the measuring process before reading the measured value. The response time t describes the time in which the displayed measured value reached 90% of the end value. - Page 15 ECO 122 - One-hand soil-/compost-thermometer Operation and maintenance Caution! Damage! If the batteries have different charge levels, leaks and thus damage to the device can occur. Only use high-quality and suitable alkaline batteries! Do not use different types of batteries! ...
-
Page 16: Error And System Messages
ECO 122 - One-hand soil-/compost-thermometer Error and system messages Error and system messages Display Meaning Possible causes Remedy ---- Measurement far Measurement • Stay within allowable outside of the outside of the measurement range measuring range measuring range Probe defect Measuring probe or •... -
Page 17: Technical Data
ECO 122 - One-hand soil-/compost-thermometer Technical data Technical data Measuring range -70.0 .. +250.0 °C (-94.0 .. +482.0 °F) Accuracy -20 .. +100 °C: ± 0.1 K ± 1 Digit -70 .. +250 °C: ± 0.2 % of measured value ± 2 digits... -
Page 18: Disposal
ECO 122 - One-hand soil-/compost-thermometer Disposal Directives and standards The devices conform to the following Directives of the Council for the harmonization of legal regulations of the Member States: 2014/30/EU EMC Directive 2011/65/EU RoHS Applied harmonized standards: EN 61326-1:2013 Emission limits: Class B Immunity according to table A.1... -
Page 19: Service
ECO 122 - One-hand soil-/compost-thermometer Service 10 Service 10.1 Manufacturer If you have any questions, please do not hesitate to contact us. 10.2 Calibration and adjustment service The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. - Page 20 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE reg. no.: DE 93889386...
