Takstar WTG-650 Quick Start Manual

Dear Customer,
Thank you for purchasing Takstar WTG-650 Tour Guide System. To better
understand and use the product, please read this manual thoroughly. If you
have any questions or suggestions, please contact our local sales outlet.
■ Features
• UHF transmission for stable use up to 100m in open areas.
• Detachable mic with high sensitivity and clear sound.
• 50 adjustable channels to prevent crosstalk between systems.
• Transmitter enables remote one-button receiver pairing and powering off.
• Wireless playback of audio from phones and computers.
• Non-in-ear receiver design, lightweight, comfortable and hygienic.
■ Package Contents
n × WTG-650 Transmitter
n × Charging Case
1 × User Manual
Note: Quantity n is defined by client requirements.
Applications
■
Tourism, religious activities, simultaneous interpretation, reception visits,
large conferences, lectures, industrial workshop, etc.
■ Specifications
Transmitter
• Frequency Range: 960-1000MHz
• No. of Channels: 50CH
• Transmission Power: 18dBm
• UHF Operating Current: 220mA
• Bluetooth Mode Current: 260mA
• Frequency Response: 20Hz-4kHz
• Distortion: <1%
• Signal-to-Noise Ratio: 80dB
• Input/Output Interface: 3.5mm
• Battery Capacity: 2000mAh
• Charging Current: DC 5V/400mAh
• Dimensions: 86*50*18.5mm
• Weight: Approx. 81g
• Charging Indicator: LED display
• Playtime: Approx. 10 hours
• Antenna: External antenna
• Effective Distance: Approx. 150m
Charging Case
• Charging Slots: 54 RX + 2 TX
• AC Input: 110-220V/AC
• DC Output: 5V/DC
• Dimensions: 560*130*370mm
• Weight: Approx. 5.2kg
• Functions: Storage & Charging
Note: The above data are measured by Takstar laboratory which has the
final interpretation right!
Guangdong Takstar Electronic Co., Ltd.
Address: No. 2 Fu Kang Yi Rd., Longxi Boluo Huizhou, Guangdong 516121 China
Tel: +86 752 6383644
n × Earhook Receiver
n × Headset Mic (HM-700)
Earhook Receiver
• Frequency Range: 960-1000MHz
• No. of Channels: 50CH
• Operating Current: 15mA
• Frequency Response: 20Hz-4kHz
• Distortion: <1%
• Signal-to-Noise Ratio: 80dB
• Battery Capacity: 260mAh
• Charging Current: DC 5V/230mA
• Dimensions: 52*27*12.5mm
• Weight: Approx. 16g
• Function Indicator: LED light
• Storage Capacity: 512MB
• Operating Distance: Approx. 150m
Fax: +86 752 6383952
WTG-650
■ Function Descriptions

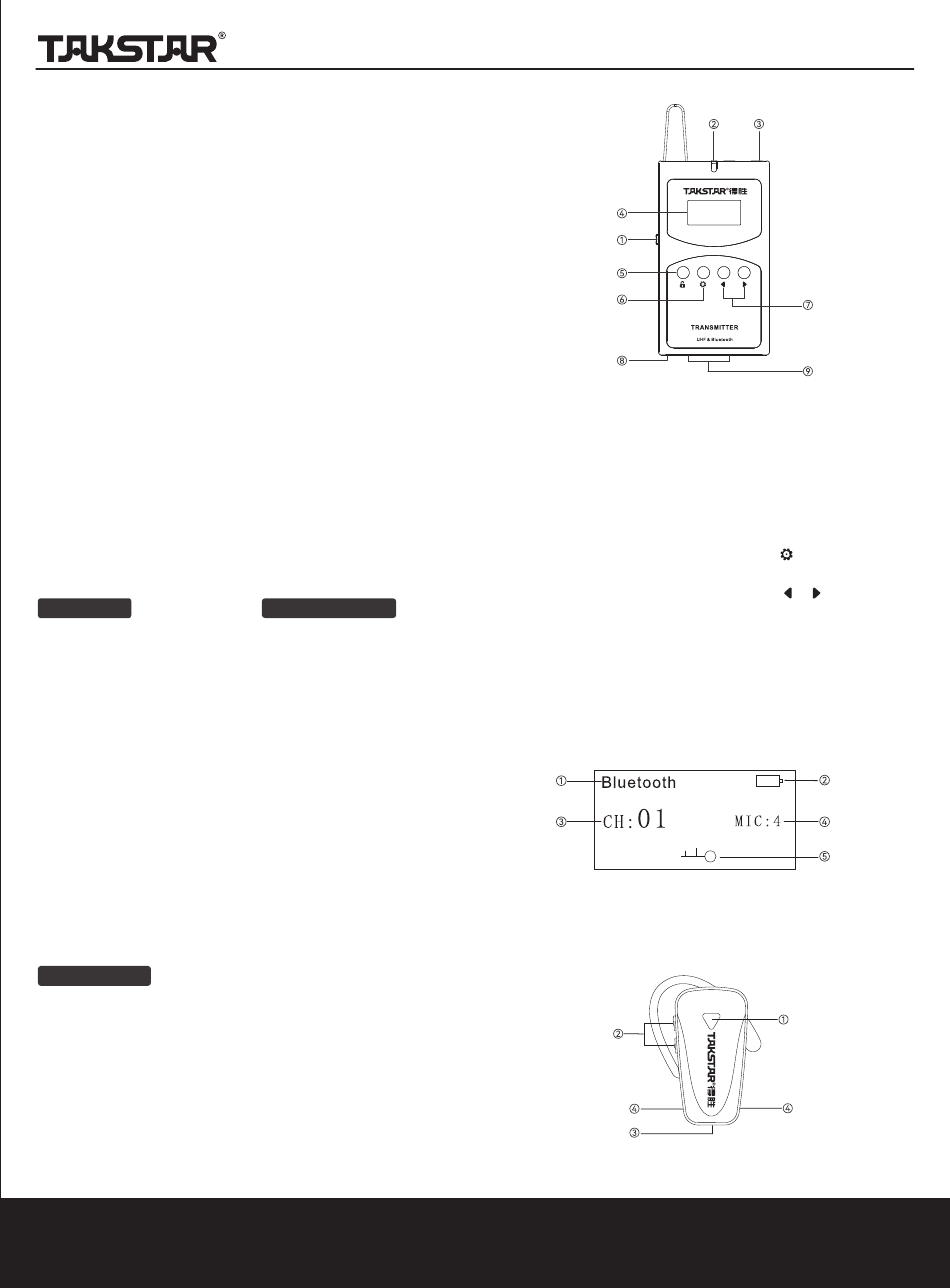

Transmitter
① Power Switch: Set to ON or OFF to power on/off the device respectively.
② Indicator Light: Shows device status such as pairing, wireless playback
pairing and battery level via different light colors and patterns.
③ Mic Interface: Insert a ø3.5mm mic plug for sound pickup.
④ Display Screen: Real-time display of current battery level, operating
channel, mic volume, wireless connection status, etc. Screen off if idle for
one minute, press any key to wake up screen.
⑤ Lock/Unlock Key: Long-press to lock or unlock the device.
⑥ Volume Adjustment Key: While unlocked, short press
cycle through 4 mic volume levels.
⑦ Channel Adjustment Key: While unlocked, short press
to the desired channel, 50 channels in total.
⑧ Type-C Interface: Insert a Type-C charging cable to connect a USB power
source for charging.
⑨ Charging Contacts: Place the transmitter in the charging slot of the
charging case. The charging contacts on the transmitter will connect with
the contacts in the charging slot to charge the transmitter.
Transmitter Display
① Wireless Playback Status
③ Current Channel
⑤ Lock Symbol
Earhook Receiver
① Power Button & Indicator Light: Long-press to turn the power on or off.
While powered on, indicator light illuminates solid blue if no transmitter
Website: www.takstar.com
Tour Guide System
key to adjust and
or key to adjust
② Battery Level
④ Mic Volume
E-mail: sales@takstar.com
