Summary of Contents for Orlaco 0504812

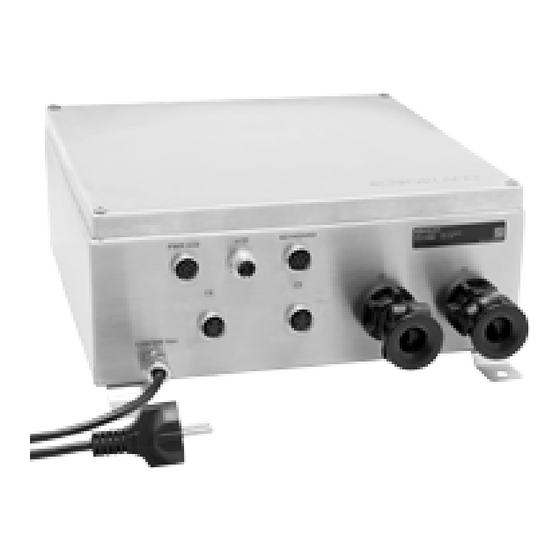

- Page 1 Control box Ex Cameras Installation manual No. IM0973250 A 02 Art No: 0504812 02/2013 English...
- Page 2 • If there have been alterations or changes to this equip- ment that have not been specifically approved by Orlaco, use of this equipment is not permitted. • Warning for the User: It is not allowed to open the cable glands.
- Page 3 Orlaco Products BV Service department. The camera/display systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations. All products are manufactured in accordance with the ISO 9001 quality manage- ment system, ISO/TS16949 quality automotive and ISO 14001 environmental management systems.
- Page 4 Installation manual 3. Mounting the Ex board and parts together in the Control box Ex Cameras NOTE: Ex PCB’s are not mounted! PCB’s will be sent with cameras as a set The Mains terminal may facilitates the replacement of the power IMPORTANT: supply cable For connecting the Ex camera,...
- Page 5 Installation manual Ex board C3 / C4 CCCEX camera 1 = White = video (coax center) 2 = Blue = video GND (coax screen) 3 = Red = +12V/DC 4 = Black = PWR GND 5 = N.C. 6 = N.C. 123456 123456 Part supplied...
- Page 6 5 = Green 5 = Rx 6 = Brown 6 = Tx 7 = Grey 7 = N.C. Pin Layout Video Monitor 7p; Art. no 0504812 7 pins Function 1 = Coax core 1 = Video 2 = Coax shield...
-
Page 7: Specifications
Orlaco. This also applies to the associated drawings and figures. Orlaco reserves the right to make changes to components at any time without informing customers beforehand or directly. All dimensions given are for commercial purposes. - Page 8 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
