Acaia Orion Nano
User Manual
AON301 / AON302 / AON303
FW 1.0.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AON302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for acaia AON302

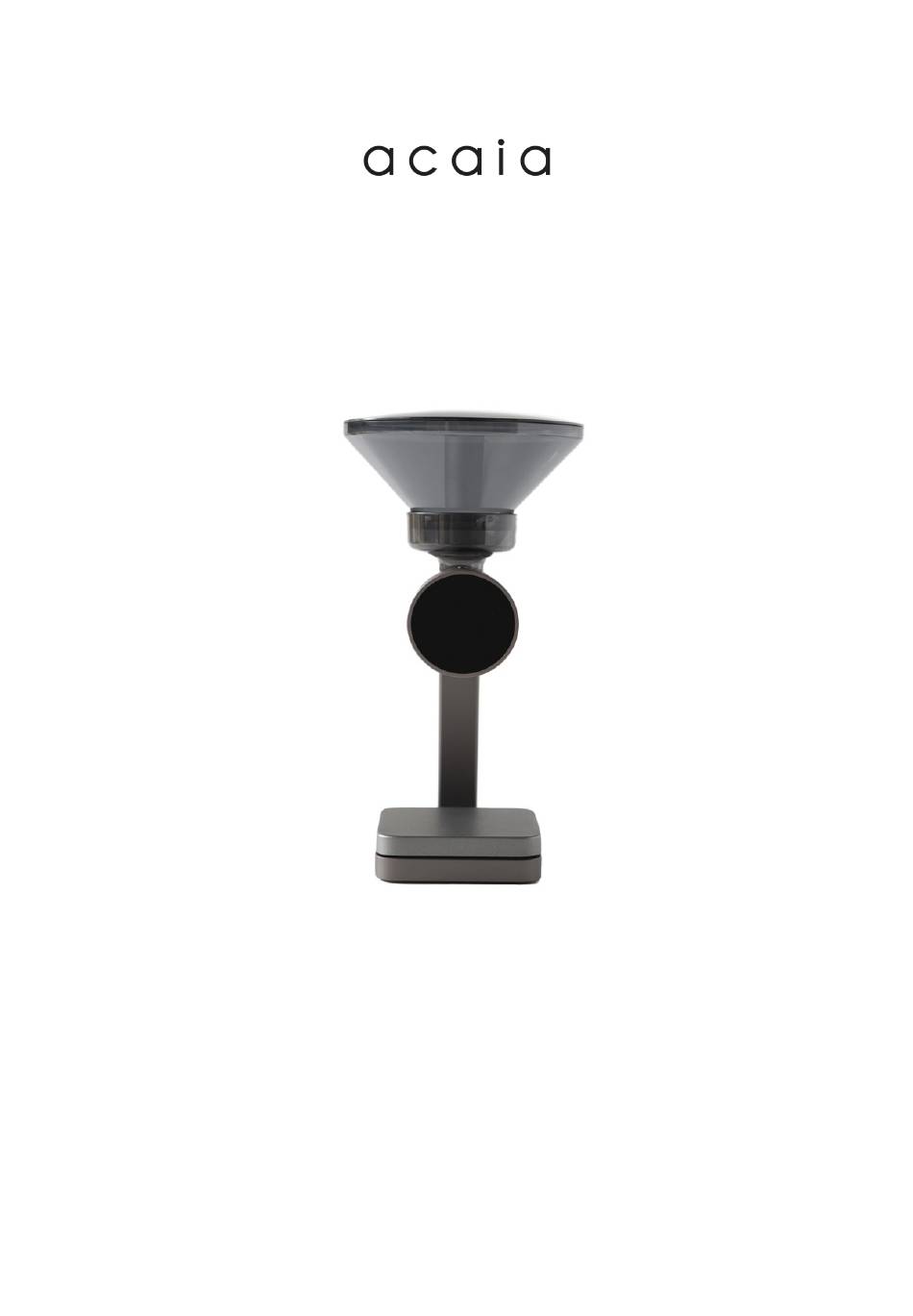

  • Page 1 Acaia Orion Nano User Manual AON301 / AON302 / AON303 FW 1.0.02...
  • Page 2: Table Of Contents

    Contents Introduction Features Unpacking your Orion Nano Orion Nano Overview Interface Overview Interface Overview LED Indicators Setting Up the Orion Nano Getting Started Product Care Information Charing your Orion Nano Care and Cleaning Mode Introduction Mode 1 - Manual Dosing Mode Mode 2 - Auto Dosing Mode Mode 3 - Weighing Mode Mode 4 - Belt Mode...
  • Page 3: Introduction

    Introduction Welcome to your new Acaia Orion Nano. Designed for achieving precise and customizable coffee bean dosing. The Orion Nano is ideal for cupping sessions and seamless on-demand dosing in cafes. Achieve effortless coffee blending through its innovative connectivity feature, Orion’s Belt.
  • Page 4: Unpacking Your Orion Nano

    Unpacking your Orion Nano Acaia Orion Nano Type-C Charging Cable Universal Power Adapter Orion Nano Overview 250 g Hopper Hopper Adapter Adjustment Dial Power Button Dose Button Spotlight Weighing Pan Charging Port...
  • Page 5: Interface Overview

    You may want to add some beans with the pulse function or remove some. Red Light - System message indicator When the red light is displayed, there is a system error with the Orion Nano. Restart the Orion Nano. If the problem persists, please contact us at support@acaia.co.
  • Page 6: Setting Up The Orion Nano

    Setting Up the Orion Nano Initial Setup Rinse and clean the bean hopper Place your Orion Nano on a flat, stable with warm soapy water before your surface. first use. Dry immediately after cleaning. Attach the Orion Nano hopper on the Before dosing, make sure to position hopper adapter.
  • Page 7: Getting Started

    Getting Started Power On/Off [Press] Power to turn on device. [Double press] Power to turn off device. Start Dosing [Press] Dose to start dosing, and press again to stop if you want to end before the session is complete. Pulse At the end of dosing, you may [press] Dose several times to pulse and add a few beans if needed.
  • Page 8 Dial Interface / Adjust Weight [Rotate] the dial to toggle between different preset weights. [Press] Power and the preset starts flashing. Turn the Dial to adjust the preset weight and [press] Power again to save your setting. Toggle Modes Switch between modes [Press and hold] Power to see the current mode.
  • Page 9: Product Care Information

    Product Care Information Charing your Orion Nano When the Orion Nano shows “Low Bat”, please charge the Orion Nano with the type-C charger included in the package. The Charging indicator will display when the battery is charging and will turn off when the Orion Nano is fully charged. can be used without a charging cable.
  • Page 10: Mode Introduction

    Mode Introduction Mode 1 - Manual Dosing Mode This is the default dosing mode. The Orion Nano allows you to store three presets for your desired weights. For instance, you can set preset 1 to 10g, preset 2 to 20g, and preset 3 to 30g. The minimum weight for the preset is 4g.
  • Page 11: Mode 2 - Auto Dosing Mode

    Mode 2 - Auto Dosing Mode Auto dosing mode dispenses coffee whenever a container is placed on the platform. When in Auto mode, you will see an ‘A’ indicator in the top left corner of the display. Press Dose and a [ rEADY ] message will appear on the display.
  • Page 12: Mode 3 - Weighing Mode

    Mode 3 - Weighing Mode The weighing mode is the Orion Nano’s smart scale mode, functioning as an industrial weighing scale with a 500-gram capacity. Action Operation Reset Mode/Zero Press Power Press Dose Tare 1. To enter the weighing mode, rotate the Dial until a ‘W’ indicator appears in the top left corner of the display.
  • Page 13: Mode 4 - Belt Mode

    Mode 4 - Belt Mode Orion’s Belt Connection With the Orion Nano, you can craft your custom coffee blend with exceptional precision. Connect up to 3 Orion Nanos to create an on-demand coffee-blending station. Our Orion’s Belt innovative feature represents our latest development, and we are dedicated to ongoing improvements.
  • Page 14 Rotate the dial to display [ bELt.p ], Press Dose again to show [ PAir 1 ]. then press Dose, it will be display This unit will serve as the master unit. [1]. Repeat steps 3 to 4 on the second Select [ 2 ] in [ bELt.p ] setting, press unit you wish to pair.
  • Page 15 Go back to the first unit and enter Repeat steps 3 to 4 on the third the [ bELt ] mode. Rotate the dial unit you wish to pair, rotate the dial to select [ 1 ] in [ bELt.p ] setting, to select [ 3 ] in [ bELt.p ] setting, press Dose.
  • Page 16: Configuration

    Configuration Accessing the Orion Nano’s Settings 1. With Orion Nano powered on, press and hold Power to enter the Settings mode. The display will show [ SEt ]. 2. Press Dose to enter the Settings Menu. It will show the first setting for [ SPEEd ]. Action Operation Press and hold Power...
  • Page 17 Zero Tracking is a function to help compensate the weight readout fluctuations at zero point to improve the usability of the scale. The Acaia Orion Nano is allowed to compensate fluctuations by up to 2d according to industrial weighing guidelines.
  • Page 18 Note: You may use a 100 g or 500 g weight for calibration. To ensure accuracy, use Acaia calibration weights or F1 or F2 Class calibration weights. About [ About ] Shows the current Orion Nano Firmware version.
  • Page 19: Appendix

    Appendix Buttons Button Example Press to turn on the Orion Nano Double press to turn off the Orion Nano Press to set/save preset weight Power Button Press and hold to switch to Manual/Auto Mode Press to save the Setting and go back to Menu Press to start dosing when in Manual/Auto mode Press and hold for 5 seconds to empty the hopper Dose...
  • Page 20 Updating the Orion Nano’s Firmware Use the Acaia Updater app to learn about the latest firmware releases and updates for the Orion Nano. To update the firmware, please do the following: Use the Acaia Updater When the Orion Nano In the Acaia Updater...
  • Page 21: Error Codes

    Error Codes Error Code Description Error 100 Code error Error 101 EEPROM error AD read error Error 102 Unable to make zero point because the initial weight exceeds the limit (250% Error 303 of capacity). Overload: The weight is over the maximum capacity. Underload: The weight is under the minimum capacity.
  • Page 22: Specifications

    Up to 12 hours when fully charged Display Aluminum, PC, Stainless Steel Material Bluetooth 5.0 Connectivity Acaia Orion Nano Bean Doser x 1 250 g Hopper x 1 Inside the Package Type-C charging cable x 1 Universal Power Adapter x1...
  • Page 23 This User Manual is protected by copyright. All rights reserved. No part of the manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other method, in particular electronic means, without the written agreement of Acaia. © Acaia, California, 2024.
