Summary of Contents for nardi LVR 12 E

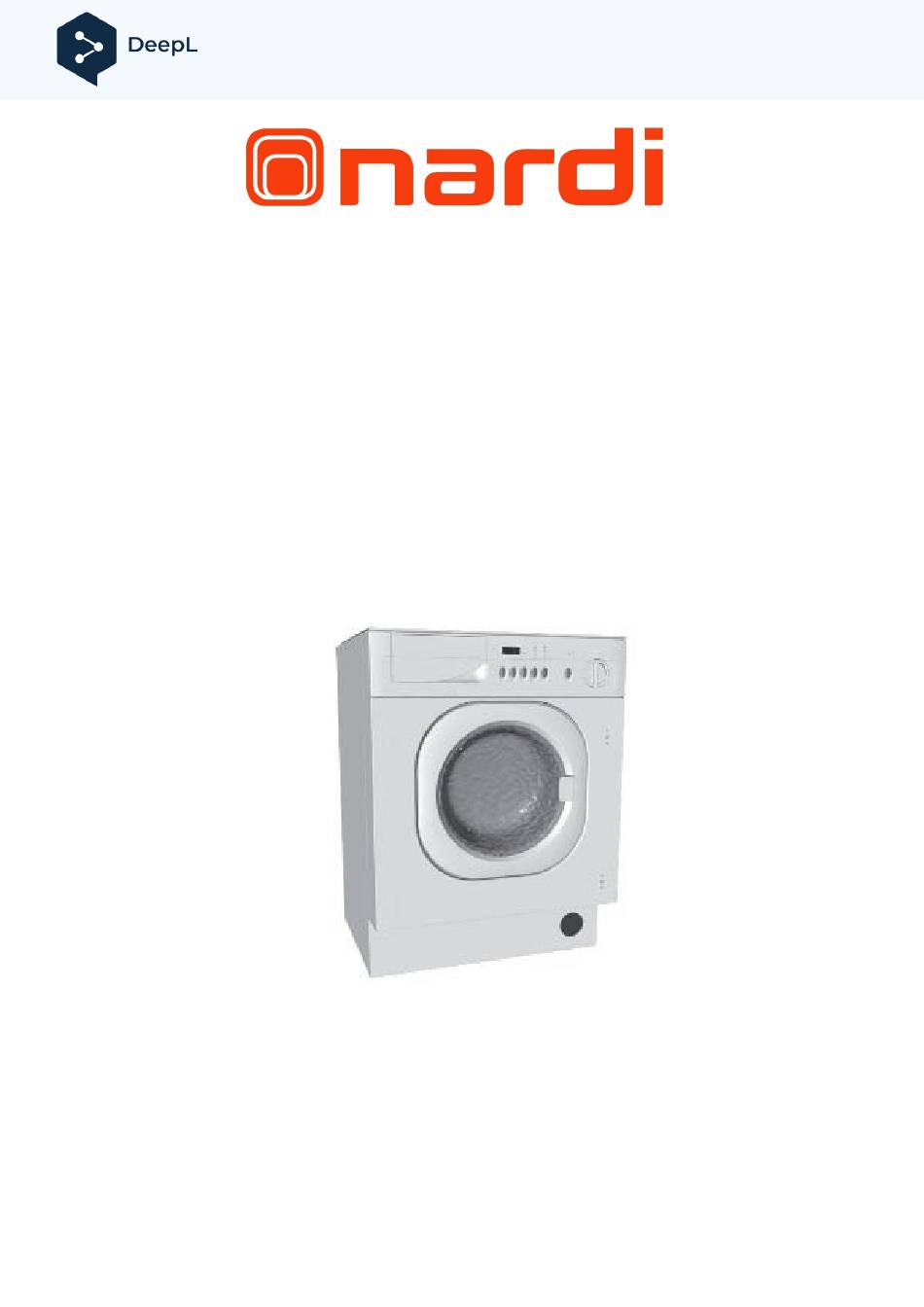

- Page 1 Subscribe to DeepL Pro to translate larger documents. Visit www.DeepL.com/pro for more information. Instructions for use and maintenance LVR 12 E Built-in washing machine 2010_23_CZ...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ..............................1 Safety instructions............................2 Using the appliance ...........................3 Appliance installation..........................4 APPLIANCE CONTROL PANEL......................6 Guide to choosing programmes.........................8 APPLIANCE MAINTENANCE........................11 ....................13 ROUBLESHOOTING APPLIANCE PROBLEMS ELECTRICAL WIRING DIAGRAM ......................14 TECHNICAL DATA..........................15... -
Page 3: Safety Instructions
• Please read these instructions carefully and keep them for future reference. Safety instructions A separate electrical outlet equipped with proper grounding is required to connect the appliance. The socket should be close to the appliance so that the supply cord can reach it. -
Page 4: Using The Appliance
10. Do not place the appliance directly on the carpet or near walls or furniture. 11. The sun should not shine directly on the appliance, as it could cause the plastic materials to "age". 12. When installing, make sure that the power cord is not pinched or otherwise trapped to prevent damage to the cord. -
Page 5: Appliance Installation
9. After each wash cycle, turn off the water tap to prevent water leakage. Unplug the appliance and wipe the bottom of the door opening dry. 10. After each wash cycle, turn off the water tap to prevent water leakage. Unplug the appliance and wipe the bottom of the door opening dry. - Page 6 • Remove the transport screws (Fig. 2) b e f o r e use! The transport screws are only used to protect the appliance components during transport. FIG. 2 Before using: 1. remove the back cover, 2. remove the three transport screws from the back of the rear cover and remove the plastic hose, 3.
-
Page 7: Appliance Control Panel
• Installing the drain hose The height of the drain hose location must be 80 - 100 cm. Lock the drain hose against displacement by locking it into the clip on the back of the washing machine. Secure the drain hose at the end with a fixing hook to prevent it f r o m shifting and overflowing. - Page 8 After plugging in the appliance and setting the desired programme, gently touch this button, then the wash cycle will start. If you touch this button during the wash cycle, the wash cycle will be interrupted and the display will flash. When the button is touched again, the programme starts again. C - Temperature selector Press this button gently to select the desired temperature (the corresponding indicator light will illuminate for the selected temperature).
-
Page 9: Guide To Choosing Programmes
A guide to choosing programmes Detergents Notes Programme Suitable Length Standard selection fabrics/l Temperatur of the settings program (position of the inen programme selector) easily * / 40 C / 50 C 1200 rpm. // Prewashing 2:59 polluted / 60 C / 90 C 60 C centre... - Page 10 Laundry 1. Loading the washing machine Open the door and load the washing machine drum piece by p i e c e . Close the door firmly. Remark: 1) Before first use, run one wash programme without laundry to eliminate any oil or other contamination of the laundry;...
- Page 11 the temperature control to the desired position (see section Programme selection guide).
- Page 12 5. Selection of optional functions To set up one of the additional features, follow the Program Selection Wizard. 6. Laundry The set wash cycle starts when you gently press the start/pause button. 7. End of the programme When the wash cycle is complete, the wash will automatically stop and the display will show "End". Open the door and remove the laundry.
-
Page 13: Appliance Maintenance
Other features Special features 1. Lock the control panel: Ensures that settings are not accidentally changed, for example by children. Press the start/pause button and the delayed start button at the same time, the control panel lock is activated and the lock pictogram appears on the display along with the current setting. - Page 14 moisture and unpleasant odours. When the appliance has not been in use for a long period of time, drain the water from the appliance and replace the drain hose. 2. Always disconnect the appliance from the power supply before starting maintenance and cleaning operations. Use a soft, damp cloth soaked in water and a little detergent to clean the exterior.
- Page 15 7. When you are not going to use the washing machine for a long time, unplug it from the mains, turn off the water supply and leave the door open to prevent moisture and unpleasant odours. APPLIANCE TROUBLESHOOTING The problems listed in the table do not indicate a malfunction of the appliance and there is no need to contact the service Centre.
-
Page 16: Electrical Wiring Diagram
The symbol on the product or on the packaging material means that the product cannot be treated as household waste. It should be taken to the appropriate collection points for recycling of electrical and electronic equipment. By ensuring that waste is disposed of correctly, you will help to protect against potential negative environmental and human health impacts that could otherwise result from improper handling of this product. -
Page 17: Technical Data
TECHNICAL DATA Items Model: LVR12E Power (220 - 240) V ~ / 50 Hz Max. working current (A) Water pressure (Mpa) 0,03 ≤ P ≥ 1 Washing power (W) Centrifuging power (W) Maximum washing capacity (kg) Maximum spin speed (rpm) 1200 Number of washing programmes Power max. - Page 18 2010_23_CZ CS COMPANY CZ, s.r.o. náměstí Svobody 93/22 602 00 Brno (Czech Republic) Tel. +421 - 283 930 700...
