- Page 1 Harmony User Manual Model No.: WSSP-5308...
-
Page 2: Video Guide
Schritt-für-Schritt-Anleitung. Guide Vidéo Vous préférez un didacticiel vidéo? Scannez le code QR ci-dessous ou visitez avantree.com/harmony/video pour un guide pas à pas. Videoguida Preferisci guardare un video tutorial? Scansiona il codice QR qui sotto o visita avantree.com/harmony/video per una guida dettagliata. - Page 3 Buchen Sie einen Termin Vereinbaren Sie einen persönlichen Einrichtungstermin mit einem Support-Mitarbe- iter unter avantree.com/book-a-call und wählen Sie Ihre passende Zeit. Prenez Rendez-Vous Vous pouvez également réserver un rendez-vous d’installation individuel avec l’un de nos agents de support via avantree.com/book-a-call...
- Page 4 User Manual HARMONY Table of Contents Box Contents ...
-
Page 5: Box Contents

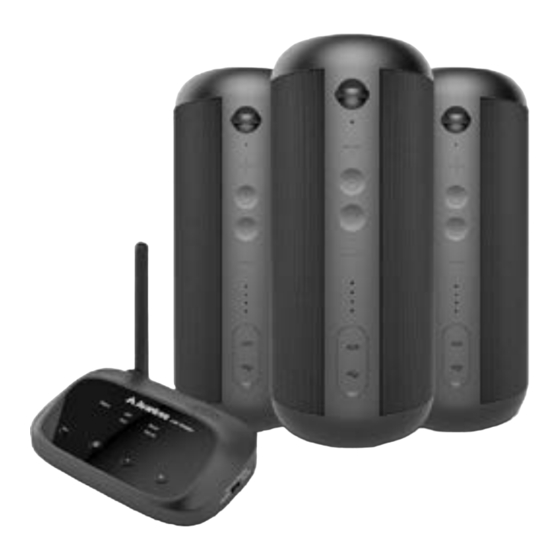

User Manual HARMONY Box Contents Speakers X 3 Transmitter Power Cable for Charging Cables Transmittet(1.5M) for Speakers X 3(1M) Optical Audio AUX 3.5mm Audio Cable Cable To view and purchase Harmony accessories, please visit avantree.com/ harmony/accessories. -
Page 6: Product Overview
User Manual HARMONY Product Introduction (Speakers) Product Overview Status Indicator Status On/Off/Play/Pause Working Mode Switch/Pairing TV / Phone Battery Indicators Charging Port/AUX Input Port... -
Page 7: Button Functions
User Manual HARMONY Button Functions Button Function Click or hold to adjust volume Press and hold to turn the speaker on / off Click to play / pause music (Bluetooth mode) Click to switch between TV mode and Bluetooth(Phone) mode, you will hear “TV mode / Bluetooth mode”. - Page 8 User Manual HARMONY Product Introduction (Transmitter) Product Overview Indicators Volume Mode ON/OFF Switch Pair Button to Add New Speakers OPT/AUX Input Volume Control Switch Buttons Power port...
- Page 9 Button Function Switch to turn the transmitter on / off Press & hold for 2 seconds to add more Harmony-Extra speakers Press once to switch between AUX / OPT audio input Volume Setting Switch between normal and boosted volume modes...
- Page 10 User Manual HARMONY Setting up Connecting the Transmitter to Your Audio Source The transmitter must be connected to a USB power port via the provided power cables in order to function. Once the transmitter is connected to a power source, next is to connect it to your audio source’s audio output ports.
- Page 11 User Manual HARMONY NOTE: Most TVs support audio output through only one digital output port at a time, so if your TV’s HDMI ARC port is in use, the optical port may be disabled. You can either unplug the HDMI ARC cable, or try connecting the transmitter via RCA / AUX.
- Page 12 User Manual HARMONY Connecting the Speakers to the Transmitter Now that your transmitter is set up, all that’s left is to connect the speakers. STEP 1 Power on the transmitter by sliding the ON / OFF switch to the ON position.
- Page 13 Audio Out Optical Out Audio Format Dolby - OFF If you’re having trouble finding these settings, you can scan the QR code cor- relating to your TV’s brand OR visit avantree.com/harmony/tv-audio-settings for a more detailed guide. SONY SAMSUNG NETFLIX/ AMAZON PRIME NOTE 1: Smart TVs automatically reset their settings after system updates.
-
Page 14: Advanced Features
User Manual HARMONY Advanced Features Listening with a Soundbar The pass-through function allows you to listen through both the speakers and an external soundbar / stereo AVR simultaneously. STEP 1 Set up the transmitter and connect it to your TV. - Page 15 User Manual HARMONY Adding More Speakers You can add up to 100 Harmony speakers to your setup while maintaining low latency. Please note that ONLY Avantree Harmony speakers are compatible due to private protocol connections. STEP 1 On your transmitter, press and hold the button for 2 seconds, the LED indi- cator “Link”...
- Page 16 7 seconds to manually enter pairing mode. STEP 2 Turn on your Phone’s Bluetooth and select “Avantree Harmony” from the Blue- tooth menu. Charging the Speakers Charge the speakers using the provided USB C charging cable and 5V/2A rated USB adapter.
- Page 17 Why aren’t my speakers connecting to the transmitter? Why aren’t I getting sound when watching Netflix / Amazon Prime? …… For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/harmony, or you can contact us directly for additional assistance.
-
Page 18: Specifications
User Manual HARMONY Specifications Transmitters & Speakers Carrier frequency 2.4GHz Frequency response 20Hz - 20KHz Operating range Up to 100ft / 30m Power port Type C Speakers Wireless tech 2.4G RF & BT5.1 BT supported profiles A2DP, AVRCP, HSP, HFP... - Page 19 DE +49 322 2109 7297 11am-9pm CET Mon-Sat FR +33 17 634 0312 11am-9pm CET Mon-Sat +39 069 4803 330 9am-6pm CET Mon-Sat +34 93 1786 261 9am-6pm CET Mon-Sat AU +61 2 8310 9897 11am-7pm AEST Mon-Fri avantree.com/support/harmony Video Guide avantree.com/harmony/video...
- Page 20 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
Need help?
Do you have a question about the Harmony and is the answer not in the manual?
Questions and answers
i have wssp 5308 base it will not connect to any source, there is no "phone" button to connect the speakers via bluetooth. Is this only able to connect all the speakers if base is hard wired to a tv? Thats what instructions appears to say?
The Avantree Harmony transmitter requires a wired connection to a TV or audio source using one of three options: optical, AUX, or another compatible wired connection. There is no mention of the transmitter receiving audio via Bluetooth from a source like a TV. However, the speakers can connect via Bluetooth to a phone for pairing.
