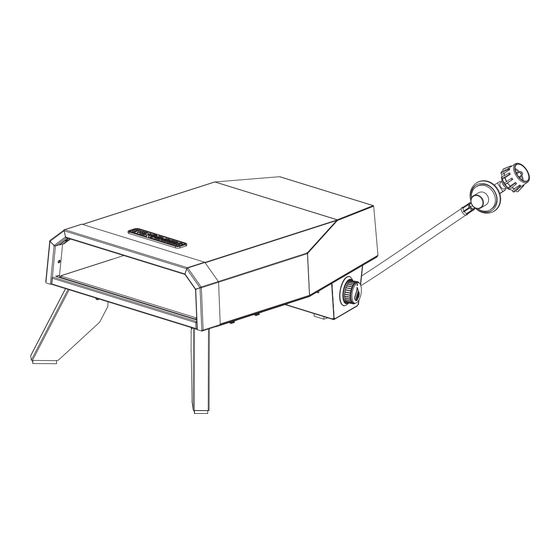

GAS PIZZA OVEN
OWNER'S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
KEEP THIS MANUAL FOR FUTURE REFERENCE
Model GAS3120ASP
WARNING
NOTICE TO INSTALLER:
HAZARDOUS EXPLOSION MAY RESULT IF THESE
LEAVE THESE INSTRUCTIONS
WARNINGS AND INSTRUCTIONS ARE IGNORED. READ
WITH THE OVEN OWNER FOR
AND FOLLOW ALL WARNINGS AND INSTRUCTIONS
FUTURE REFERENCE .
IN THIS MANUAL TO AVOID PERSONAL INJURY,
INCLUDING DEATH OR PROPERTY DAMAGE.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT INFORMATION NECESSARY FOR
THE PROPER ASSEMBLY AND SAFE USE OF
THE APPLIANCE. READ AND FOLLOW ALL
WARNINGS AND INSTRUCTIONS BEFORE
ASSEMBLING AND USING THE APPLIANCE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS
WHEN USING THE APPLIANCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Even Embers GAS3120ASP
Summary of Contents for Even Embers GAS3120ASP
- Page 1 GAS PIZZA OVEN OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Model GAS3120ASP WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE LEAVE THESE INSTRUCTIONS WARNINGS AND INSTRUCTIONS ARE IGNORED. READ WITH THE OVEN OWNER FOR AND FOLLOW ALL WARNINGS AND INSTRUCTIONS FUTURE REFERENCE .
- Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR OVEN AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR OVEN. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR OVEN.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: General Warnings ..........3-4 LP Gas Cylinder (Tank) Specifi cations and Installation . -
Page 4: General Warnings
GENERAL WARNINGS: WARNING • Leak test all connections before fi rst use, even if oven was purchased fully assembled and after each tank refi ll. Check propane tank rubber seal for damage. • Always check oven and propane tank prior to each use as indicated in “Checking for Leaks” & “Pre- Start Check List”... -
Page 5: Lp Gas Cylinder (Tank) Specifications And Installation
• Oven is hot when in use. To avoid burns: • DO NOT attempt to move oven. • Wear protective gloves or oven mitts. • DO NOT touch any hot oven surfaces. • DO NOT wear loose clothing or allow hair to come in contact with oven. •... - Page 6 LP GAS CYLINDER (TANK) SPECIFICATIONS: LP gas cylinder (not supplied with this oven) The LP (Liquid Propane) gas cylinder specifi cally designed to be used with this oven must be 12” (30.5 cm) diameter x 18” (45.7 cm) tall and have a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-fi lling protection device (OPD).
-
Page 7: Hose & Regulator Specifications And Installation
LP GAS CYLINDER (TANK) RUBBER SEAL INSPECTION: • Inspect propane tank valve rubber seal for cracks, wear or deterioration prior to use. A damaged rubber seal can cause a gas leak, possibly resulting in an explosion, fi re or severe bodily harm. •... -
Page 8: Leak Testing
HOSE AND REGULATOR: Your oven is equipped with a Type 1 connection device with the following features: 1. The system will not allow gas fl ow from cylinder until a positive connection to valve has been made. Note: The cylinder valve and oven burner knob must be turned OFF before any connection is made or removed. - Page 9 DANGER To prevent fi re or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS in a well ventilated area that is protected from the wind. • Never perform a leak test with a match or open fl ame.
-
Page 10: Pre-Start Check List
PRE-START CHECK LIST: DANGER Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the oven has been assembled and prior to each use. DO NOT operate this oven until you have read and understand ALL of the warnings and instructions in this manual. -
Page 11: Assembly Instructions
MATCH LIGHTING THE BURNER: 1. Make sure the control knob is “OFF” . 2. Place a paper match in the end of the matchlighter. Strike match and place match approximately 1/2” (1 to 2 cm) from the burner. 3. Turn burner control knob to “LOW” position and continue to push in the control knob for 5 seconds after the burner is lit. -
Page 12: Operating The Oven
OPERATING THE OVEN: WARNING • Read and follow all warnings and instructions contained in the preceding sections of this manual. • DO NOT cover cooking grates or other components with aluminum foil, as this blocks ventilation and damage to oven or personal injury may occur. •... -
Page 13: Proper Care And Maintenance
PROPER CARE & MAINTENANCE: WARNING: If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on the cooking surfaces prior to ovening as loose bristles may attach to food. CLEANING INTERIOR OF OVEN: •... -
Page 14: Transporting And Storage
BURNER ASSEMBLY/MAINTENANCE: • Although your burner is constructed of stainless steel, it may corrode as a result of the extreme heat and acids from cooking foods. Regularly inspect burner for cracks, abnormal holes, and other signs of corrosion damage. If found, replace burner. Debris •... -
Page 15: Trouble Shooting
TROUBLE SHOOTING: Problem Possible Cause Prevention/Cure Burner will not light LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank, turn LP gas tank valve to “OPEN” LP gas tank is low or empty Check if LP gas tank is empty. - Page 16 WARRANTY Fair Game Group warrants to the original pur chas er that the Even Embers Portable Gas Pizza Oven is free from defects due to workmanship or materials for: Ten-year: on stainless steel tube burner...
