JPW WILTON MECHANICS PRO Series Manual

MECHANICS PRO Series Vises (880M/8100M)
Replacement parts

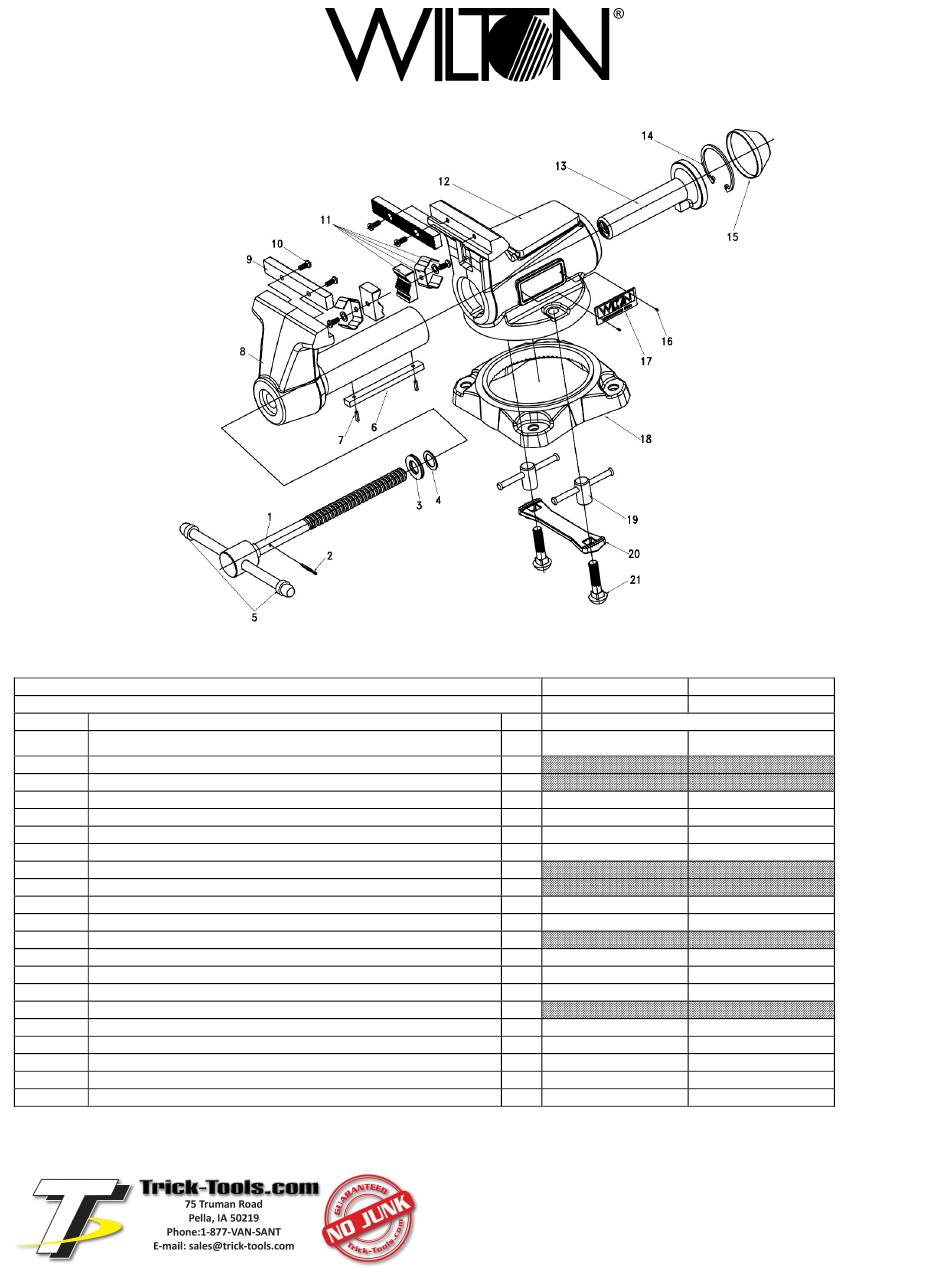

ITEM DESCRIPTION
1~5 Spindle and Handle Assembly, Complete
1 Spindle and Handle (provided in assembly only)
2 Roll Pin (provided in assembly only)
3 Needle Roller Thrust Bearing (provided in assembly only)
4 Spindle Washer
5 Rubber Ring (provided in assembly only)
6 Guide Key
7 Elastic Cylinder Pin 4x14 mm
8 Moving Body
9,10 Jaw Inserts (set of 2) with Screws
11 Pipe Jaws (set of 2) with Clips/Screws/Washers
12 Stationary Body
13 Spindle Nut
14 C-Retaining Ring, Internal
15 End Cap
16 Plate Rivet
17 Wilton Logo Plate
18~21 Base Plate Assembly, Complete
18 Base Plate
19,21 Locking Nut Assembly (one set)
20 Locking Pad
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
(provided in assembly only)
Stock no. 28813
Model no. 880M
QTY. PART NO.
1 28813-001
1
1
1 BB-AXK2542
1 GB95-85
2 748M-JQ
1 1780-09
2
1
1 28813-008
1 28813-010
1
1 748M-04
1 F006093
1 748M-05
4
2 745M-10
1 28813-017
1 748M-06
2 28813-018
1 748M-07
28814
8100M
28814-001
BB-AXK2542
GB95-85
750M-JQ
750M-06
28814-008
28814-010
750M-05
F006093
748M-05
745M-10
28814-017
748M-06
28814-018
748M-07
Part No. M-28813
Edition 1 02/2020
Copyright © 2020 WILTON
