Klafs 21028 Operating Instructions Manual

Klafs 21028 Operating Instructions Manual

Sauna controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

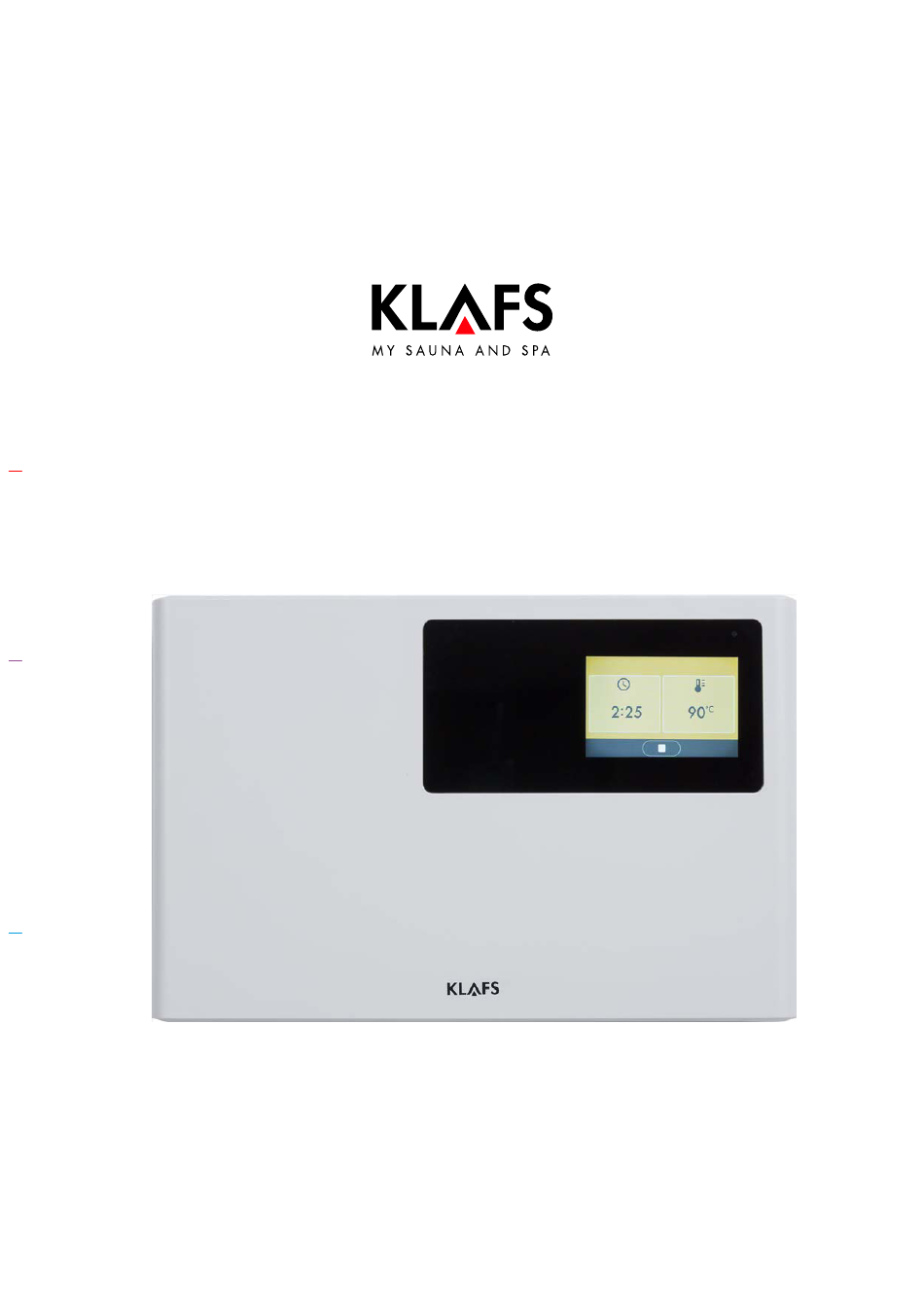

Operating instructions
KLAFS SAUNA with controller model 21028, 21028 T
90 °C
60 °C
40 °C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21028 and is the answer not in the manual?

Questions and answers

Related Manuals for Klafs 21028

Summary of Contents for Klafs 21028

  • Page 1 Operating instructions KLAFS SAUNA with controller model 21028, 21028 T 90 °C 60 °C 40 °C...

  • Page 2: Table Of Contents

    CONTENTS Quick reference guide - SAUNA controller Bathing mode 2.1. SAUNA Technical data Intended use General safety precautions Controller 90 °C 6.1. Operating and display elements 6.2. Touchscreen 6.3. Touchscreen - Basic operation and display symbols 6.4. Touchscreen - Section 1: Title line 6.5.
  • Page 3 CONTENTS Cleaning and maintenance 9.1. Cleaning the sauna cabin 9.2. Cleaning the touchscreen 90 °C 60 °C 40 °C...

  • Page 4: Quick Reference Guide - Sauna Controller

    QUICK REFERENCE GUIDE - SAUNA CONTROLLER The KLAFS SAUNA controller enables you to operate your sauna quickly and easily. The temperature can be changed within the allowed adjustment range before and during the bathing session. Only operate the touchscreen with your fingers.

  • Page 5: Bathing Mode

    BATHING MODE All bathing modes in your KLAFS sauna have been designed to improve your general health and well-being. However, you should still take into account any pre-existing health conditions when choosing your bathing program. This includes: Bathing time Temperature.

  • Page 6: Technical Data

    TECHNICAL DATA Controller model 21028, 21028 T: 3/N/PE 400 V - 50/60 Hz, max. 9 kW. Room conditions: Temperature 0 °C to 40 °C, max. 80% relative humidity. INTENDED USE The controller is intended for use with the heaters tested and approved by the German VDE (Association for Electrical, Electronic and Information Technologies) or TÜV (Technical Inspection...
  • Page 7 Never use undiluted essential oils. Only use the indicated concentration (approx. 20 - 30 drops of oil in one litre of water). Only use KLAFS essential oil extracts. Never store the bottle containing the essential oil inside the sauna cabin.

  • Page 8: Controller

    CONTROLLER 6.1. Operating and display elements 90 °C 60 °C Item Description Controller/Controller T main switch. The main switch switches off the mains power to the controller. Cabin light switch. When the controller is connected to the mains, the cabin light may be switched on independently of the main switch.

  • Page 9: Touchscreen

    6.2. Touchscreen Section Title line. Navigation, menu display. See page 11. Bathing parameters. Display of the active bathing 90 °C parameters. To set the bathing parameters, see page 11. Footer. Start and stop the bathing mode. Confirm entries. See page 11. 60 °C 40 °C Page 9 / 24...

  • Page 10: Touchscreen - Basic Operation And Display Symbols

    6.3. Touchscreen - Basic operation and display symbols Example Symbol: Display/function: The control panel must be switched on at the main switch. See page 13. Operate the control panel by pressing on the touchscreen with your finger. The touchscreen is divided into display sections and function symbols. Functions are activated by pressing the symbols displayed.

  • Page 11: Touchscreen - Section 1: Title Line

    6.4. Touchscreen - Section 1: Title line Operating symbol, display Symbol for the setting dialogue currently selected. 6.5. Touchscreen - Section 2: Bathing mode, bathing parameter Bathing parameter SAUNA Bathing time (2) To set the bathing time, see 90 °C page 16.

  • Page 12: Touchscreen - Bathing Parameter Symbols

    6.7. Touchscreen - Bathing parameter symbols Symbol: Display/function: Setting the bathing time. See page 16. Setting the bathing temperature. See page 17. 90 °C 60 °C 40 °C Page 12 / 24...

  • Page 13: Basic Functions And Settings

    BASIC FUNCTIONS AND SETTINGS 7.1. Switching the power supply on/off at the main switch Switching the power supply on Press the touch key (1). The controller goes into standby mode and shows the bathing program symbols. 90 °C For standby, see page 14. Switching the power supply off Press the touch key (1).

  • Page 14: Standby Mode

    7.3. Standby mode The touchscreen displays the start screen in standby mode: The backlighting switches off automatically after five minutes of non-use. The controller can be operated via the touchscreen at any time whilst in standby mode. 90 °C 60 °C 40 °C Page 14 / 24...

  • Page 15: Bathing Mode Sauna

    7.4. Bathing mode SAUNA Risk of fire Before commissioning the controller, always check that there are no flammable objects near the sauna heater in the cabin. Starting SAUNA bathing mode Press the key " (1). The background colour (2) changes to blue during the heat-up phase.

  • Page 16: Setting The Bathing Time

    7.5. Setting the bathing time Risk of fire Before commissioning the controller, always check that there are no flammable objects on or near the sauna heater. Changing the bathing time Set the bathing time (1) using the slider (2). Bathing time setting 90 °C HOUR:MINUTE.

  • Page 17: Setting The Temperature

    7.6. Setting the temperature Changing the temperature Set the temperature (1) using the slider (2). SAUNA: Temperature 10 °C-100 °C. The temperature can also be adjusted using the +/- keys (3 90 °C and 4). Slider at the far right = maximum temperature;...

  • Page 18: Vent Flap For Airing And Ventilating The Cabin (Optional)

    Vent flap for airing and ventilating the cabin (optional) Correct airing and ventilation ensure an optimum climate. The KLAFS vent wall with adjustable vent flap (optional) allows you to regulate the air flow rate. Ventilation: Heating mode Vent flap, level 1 There is only a low air flow at this setting.

  • Page 19: If Something Does Not Work

    Repairs and maintenance must only be carried out by KLAFS service engineers or by technicians expressly authorised by KLAFS. customerservice@klafs.de. KLAFS can only provide repairs and servicing work under warranty if this work is carried out by KLAFS service engineers.

  • Page 20: Other Possible Errors

    Replace light fuse F3 (1.6 AT) or contact KLAFS service engineers. 60 °C Light fuse F3 has blown. customerservice@klafs.de Replace fuse AG F1 (1.6 AT) or contact KLAFS service engineers. Fuse AG F1 has blown. customerservice@klafs.de No power at output AG.

  • Page 21: Rectifying Faults, Resetting Error Messages

    8.3. Rectifying faults, resetting error messages Notice: Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. Switch the controller off, disconnect it from the mains and make sure that it cannot be switched on again.
  • Page 22 CLEANING AND MAINTENANCE 9.1. Cleaning the sauna cabin The high humidity in SOFTCLIMA bathing mode does not damage your cabin's wood. A prerequisite is that the cabin is well ventilated after use and the drying phase is completed. Never use a hose or pressure washer on the inner cabin walls, benches or seats. 90 °C Dirty loungers Wipe the wooden surfaces with a damp cloth.
  • Page 23 NOTES 90 °C 60 °C 40 °C Page 23 / 24...
  • Page 24 ÖSTERREICH | SONNWIESENWEG 19 | A-6361 HOPFGARTEN/TIROL TELEFON +43 (0)5335 23 30-0 | FAX +43 (0)5335 23 30-36 | INFO@KLAFS.AT | WWW.KLAFS.AT SCHWEIZ | OBERNEUHOFSTRASSE 11 | CH-6340 BAAR TELEFON +41 (0)41 760 22 42 | FAX +41 (0)41 760 25 35 | BAAR@KLAFS.CH | WWW.KLAFS.CH...

This manual is also suitable for:

21028 t
