Assembly Instructions

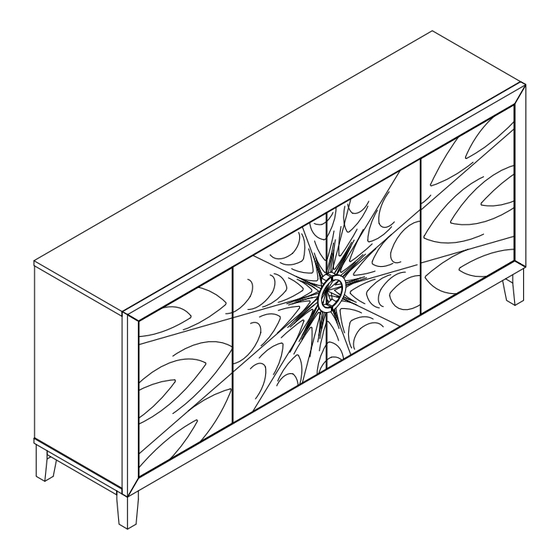

909331 TV Stand - White
Product Issues? Please Call Us Before Contacting Your Retailer At 1-800-549-3300.
Email customerservice@mshome.co, or visit www.mshome.co
We can help with Assembly Issues, Part Requests, Damages, & All Other Product
Related Questions
MSH - USA
1-8
Advertisement
Related Manuals for MSH 909331
Summary of Contents for MSH 909331

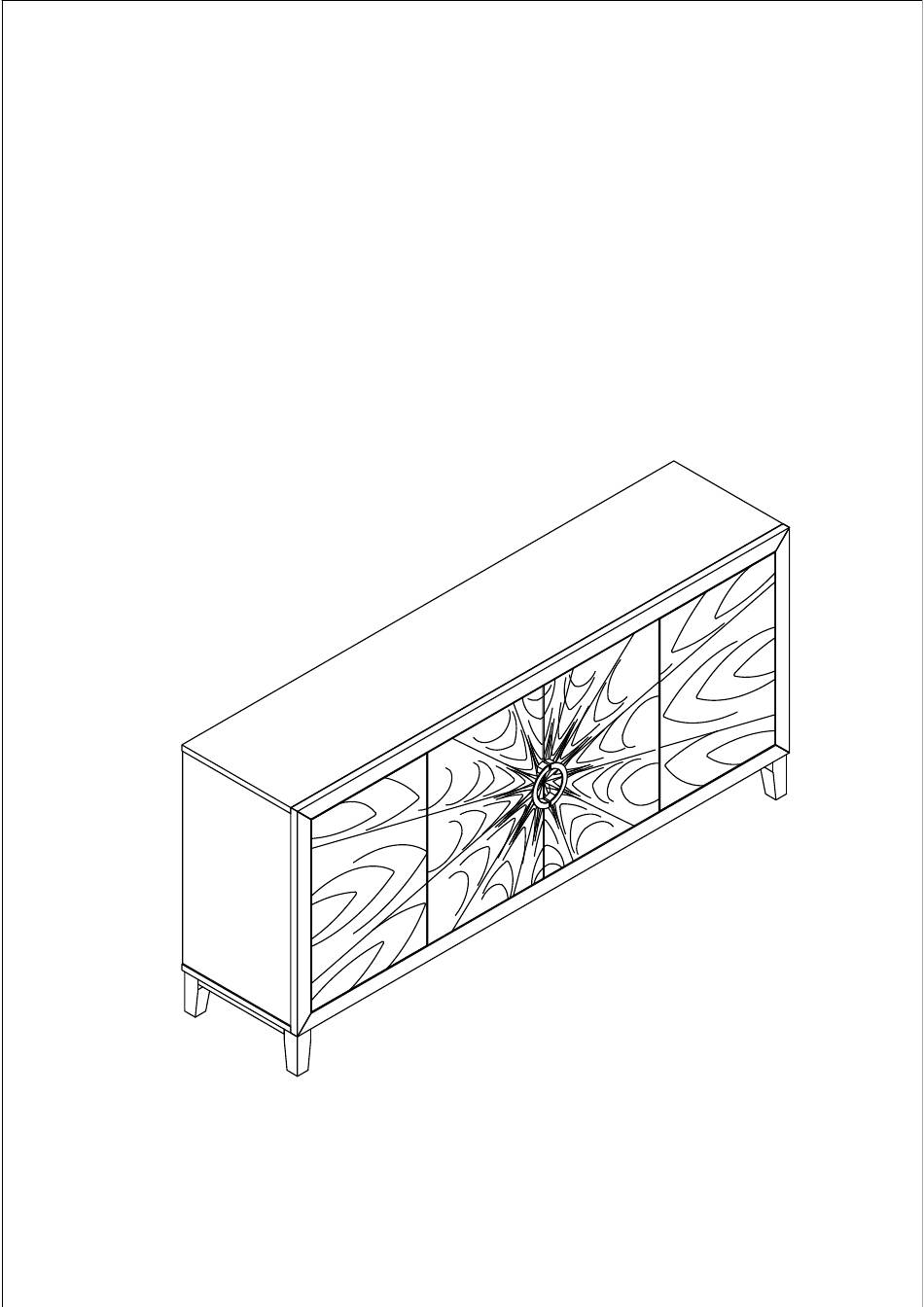

- Page 1 Assembly Instructions 909331 TV Stand - White Product Issues? Please Call Us Before Contacting Your Retailer At 1-800-549-3300. Email customerservice@mshome.co, or visit www.mshome.co We can help with Assembly Issues, Part Requests, Damages, & All Other Product Related Questions MSH - USA...
- Page 2 Two People Required for Assembly 15 min Approxiamate space required Phillips Head Not Provided Do Not Use Power Tools...
-
Page 3: Parts Included
909331 PARTS INCLUDED: · (C1) Top Panel x 1 · (C2) Left side panel x1 · (C3) Right side panel x 1 · (C4) Front Frame x1 · (C5) Partition Panel x 2 · (C6) Bottom Panel x 1 ·... - Page 4 Please lay all components on smooth flat surface to prevent scratches. Use the EPE foam to protect the plastic hardware before assembly.
- Page 5 Open Lock Open Lock Make sure all latches are in the open position before installing Bottom Panel (C6)
- Page 6 Lock Make sure all latches are in the locked position Open Lock Lock Open Make sure all latches are in the open position before installing Top Panel (C1)
- Page 7 D x 4 C x 2 Ø4x30 (mm) 4pcs 2 pcs Lock Make sure all latches are in the locked position Ø6x30 (mm) E x 6 F x 1...
- Page 8 A x 12 B x 12 Ø3.5x15 (mm) Adjustable floor leveler...
