Contents:
Installation
1.0
The Twisterflasher explained
1.1
The CFA6 (Cardflasher) explained
1.2
How to connect the Twister to your PC
1.3
USB Driver installation
Twistersuite
2.0
Twistersuite installation
2.1
Activate software modules
2.2
Usage Nokia DCT-3 & DCT-4 (DCTx software module)
2.3
Usage Acer/Motorola (Moto_Acer software module)
2.4
Usage SonyEricsson (RTP)
2.5
Usage Samsung (Sam) (not ready in this manual, to be continued)
Usage Nokia software (DCTx)
3.0
Reset sec code/user lock
3.1
Unlock SP lock (simlock)
3.2
DCT-3 Flash (update or change language)
3.3
DCT-4 Flash (update or change language)
Usage SonyEricsson (RTP)
4.0
Put phone in „Secure Boot" mode
4.1
Read phone (backup firmware)
4.2
Unlock phone (SP lock and user lock)
4.3
Flash the phone + Remove provider specific software
Usage Acer/Motorola (Moto_Acer)
5.0
Read SW and HW information
5.1
Read a flex file for backup proposes
5.2
Flash and flex the phone + Remove provider specific software
5.3
Repair IMEI
5.4
Unlock phone (SP lock and user lock)
Various functions
6.1
Reset counter
6.2
Credits
www.twisterflasher.com

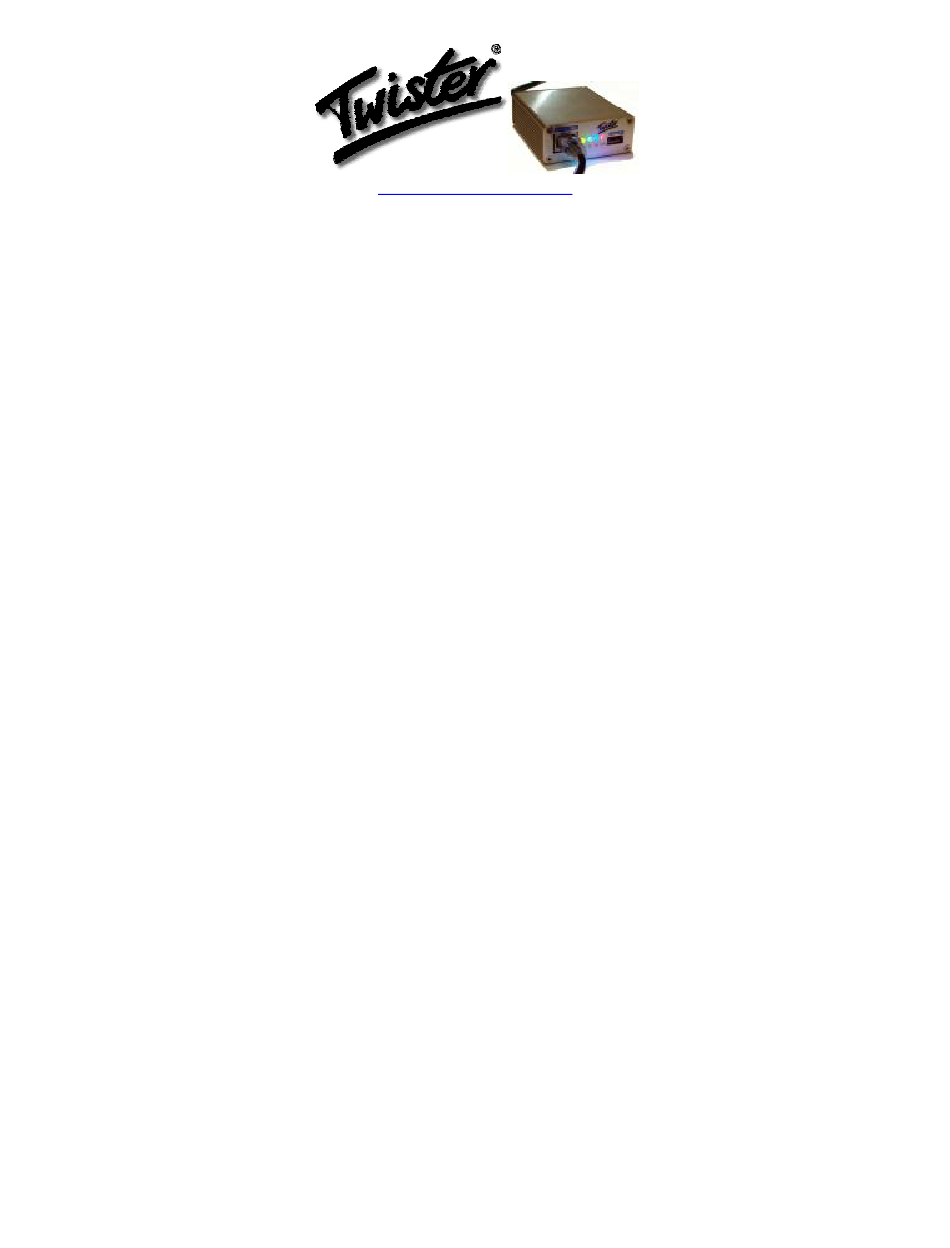

Twisterflasher installation and user manual
Revised : 01.Feb .2004 Ver. 1.1 EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Twisterflasher and is the answer not in the manual?

Questions and answers

Summary of Contents for Twister Twisterflasher

  • Page 1 Twisterflasher installation and user manual Contents: Installation The Twisterflasher explained The CFA6 (Cardflasher) explained How to connect the Twister to your PC USB Driver installation Twistersuite Twistersuite installation Activate software modules Usage Nokia DCT-3 & DCT-4 (DCTx software module)
  • Page 2 UTP10 (service cable connector, 10 pin) USB PORT (to connect other USB devices) 4 LEDs (PWR (Power), RX (receive), TX (transmit) and USB Rear : Connections : USB PORT (to connect other USB devices) USB UPLINK to connect the Twister with your PC...
  • Page 3 ONLY with FPS-8 ATTENTION: The CFA-6 is powered by Twister, Griffin, FLS-4 ! If you are using it with external power you will DAMAGE THE CFA-6. The external power supply is ONLY for usage with FPS-8 box !!!!!
  • Page 4 You must install the USB drivers before you will be able to use Twister, please follow the step by step installation and you will find it very easy. The USB hardware of Twister uses USB 1.1 but if your pc has USB2.0 ports this should be no problem as all USB-2.0 ports are also 1.1 compatible.
  • Page 5 “Search for the best driver locations” and also enable “Include this location in the search” then choose the path shown below using the “Browse” button, then click “NEXT” C:\Program Files\SarasSoft\Twister\USBDriver 6. You should then see the window as shown below:...
  • Page 6 7. If you get this message as shown below press “Continue Anyway” to continue. 8. Press FINISH to complete the installation. 9. In the bottom bar you might see the follow message. Your Twister is ready to use.
  • Page 7 After the installation, the installer will create 4 icons on your desktop. Note: The only place where you can download updates and a valid exe for the Twisterflasher is www.twisterflasher.com/support If you don‘t have a login and password for the support area, please contact your dealer or password@twisterflasher.com...
  • Page 8 2.1 Activation Strings You may need to activate your Twister box for each application. In most cases your dealer will have already activated the box prior to delivery. To be able to use each Twister software module you will need an activation string.
  • Page 9 Usage DCTx software module Nok. DCT-3 & DCT-4 DCTx screenshot and explanation 1 : Check – To check the flash mode 2 : Info – To check the functionality of M/F Bus (Use this to confirm a good connection) 3 : Flash – Button to be used for manual mode 4 : UI Settings –...
  • Page 10 Quickbuttons : Connect/Disconnect: You have to press the connect button to connect the software module with the Twister hardware. Without this connection you can not use any software module with Twister. Check: You can test the ‘Flash’ mode with this button.
  • Page 11 Main window (left side) : Autodetect Product : Use this option if you are not sure what kind of phone it is, it will auto detect it for you Auto Clear Result Window : Will clear all results displayed in main window before commencing each function. You can manually clear this by doubleclicking inside the window.
  • Page 12 PPM : Choose the PPM flash file (language pack firmware, must match MCU version) PMM : PMM is the extension used in Twister for “VIRGIN EEPROM” etc most of us know virgin eeproms in Dejan format with extension FLS. WUG :...
  • Page 13 Convert Files : Convert FLS files to original Nokia files. (Use this feature to convert FLS virgin Eeproms for use with Twister) Erase Flash : Erase the whole flash AND eeprom. After your will need to flash MCU, PPM and PMM files, and REBUILD IMEI etc.
  • Page 14 Action window for DCT-4 : Product : Choose your handset model, for example. 8310 NHM-7 etc. MCU : Choose the MCU flash file (main handset firmware file to be flashed) PPM : Choose the PPM flash file (language pack firmware, must match MCU version) CNT : Choose the CNT flash file This allows you to flash the standard factory walpapers, ringtones games and other...
  • Page 15 Enable BT Flashing : Flash the bluetooth firmware BT Hw: You can choose AUTO, OLD or NEW. Default is AUTO, however in some cases such as some 7650s it is necessary to use the OLD option if the BT function does not work correctly. UI Options : You can double-click these items to execute each one individually and immediately.
  • Page 16 AUX Functions : Read UEM : Create an *.ASK File Write UEM St. : Write a *.RPL File Write PM : Write a PM file. PLEASE DO NOT DO EXPERIMENTS WITH THIS FUNCTION, YOU MAY DAMAGE YOUR PHONE. Erase Flash : Erase the whole flash! NOTE: All flash will be erased, inclusive the PM area, you may damage your phone! Create Ini File :...
  • Page 17 Raskal. Very special thanks goes also to: Dr.Sha, #2, Odia, GsmAudi, Thomas, DM and some other good friends PLEASE ENSURE YOU BUY YOUR TWISTER BOX ONLY FROM ONE OF OUR www.twisterflasher.com RESELLERS LISTED ON OTHERWISE NO WARRANTY, NO REPLACEMENT, NO UPGRADES,...
