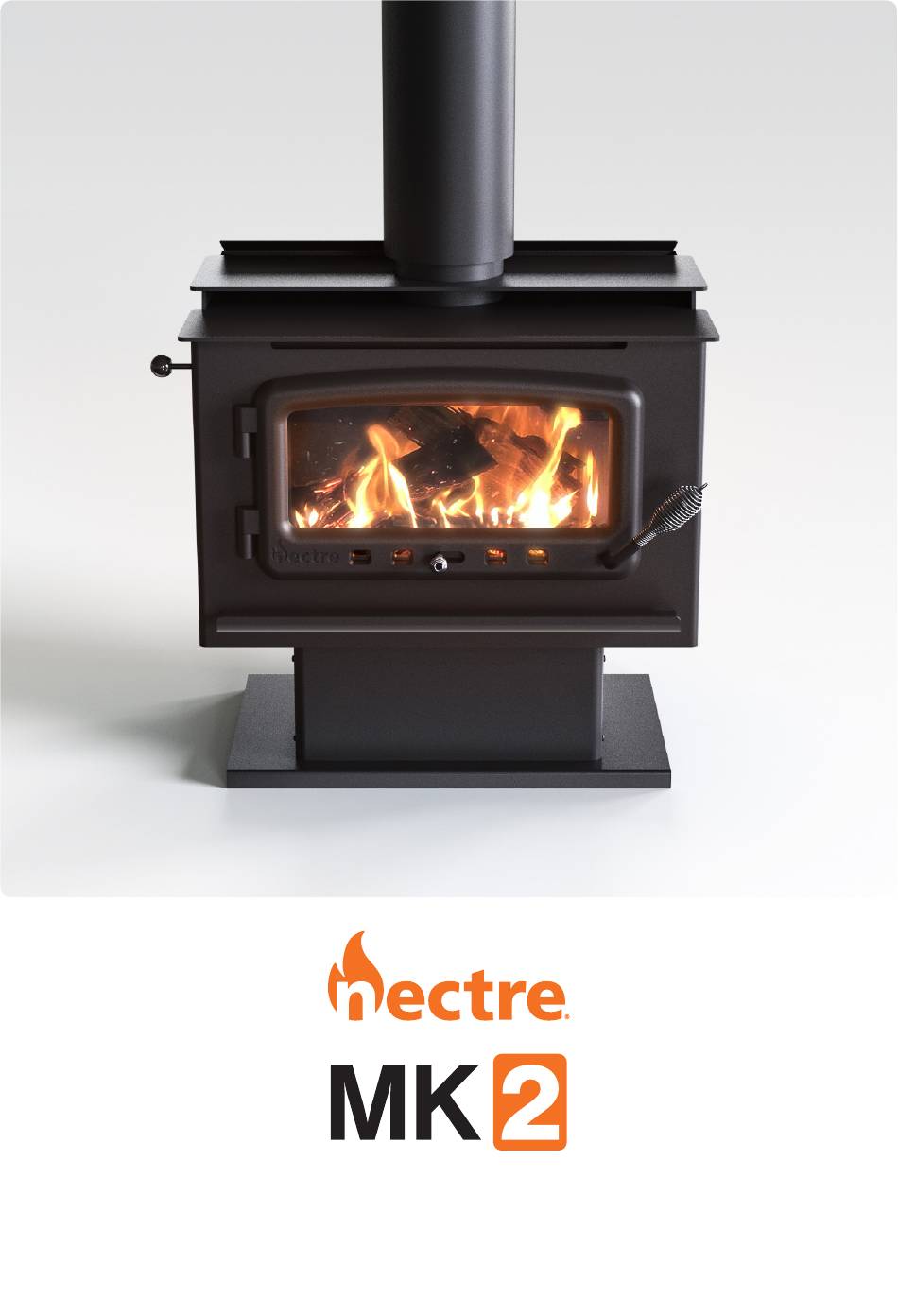

Page 1 OPERATING INSTRUCTIONS EFFICIENT • WARM • FRIENDLY...
Page 2 NECTRE MK2 (LE) PEDESTAL Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. NECTRE MK2 (LE) LEGS VERSION 1.0...
Page 3: Table Of Contents
TABLE OF CONTENTS USER INSTRUCTIONS MAINTENANCE AND SERVICING Introduction ......... . Replacement of Fire Bricks .
Page 4: User Instructions
USER INSTRUCTIONS INTRODUCTION 1.1. AIR CONTROLS Before use of this appliance please read these instructions The Nectre Mk2 has two air controls for controlling the fire. fully. Top air slide: This allows air to enter the firebox from above WARNING: ANY MODIFICATION OF THE APPLIANCE the door where it is then drawn down into the base of the THAT HAS NOT BEEN APPROVED IN WRITING BY fire while keeping the glass clean.
Page 5: Fan
1.3. Poor quality timber: The Nectre Mk2 can be fitted with an optional fan. ● Causes low combustion efficiency The fan can be used to spread heat around the room ● Produces poor emissions (smoky) quicker, as well as distribute heat into other rooms. It does ●...
Page 6: Running The Appliance
RUNNING THE APPLIANCE 5.3. RELOAD WITH MORE WOOD Open air slide before opening door. The heat output of the appliance is controlled by the top air slide. Rake / break up any existing coals. 5.1. HIGH HEAT OUTPUT Load the wood with the length orientated front to After establishing the fire and loading it with larger pieces back.
Page 7: Flue Draught
CLEANING PAINTWORK AND GLASS 6.2. FLUE DRAUGHT The flue has two main functions: The heater, when cool, can be cleaned with a damp cloth. To safely remove smoke, gases and fumes from the Over the years, the black paint will fade and can be appliance.
Page 8: Troubleshooting Tips
TROUBLESHOOTING TIPS 11.1. GLASS IN DOOR BLACKENING This can have several possible causes: ● Burning unseasoned wood — if the wood is too wet, it will cause the glass to blacken. ● Appliance operated at low temperature — after an overnight burn where the air slide control has been fully closed, the glass may have blackened.
Page 9: Maintenance And Servicing
MAINTENANCE AND SERVICING Raise the retainer and re-install the fire bricks. REPLACEMENT OF FIRE BRICKS The purpose of the firebricks in the appliance is to increase REPLACEMENT OF BAFFLE PLATES thermal mass and to guarantee the longevity of the steel The Nectre Mk2 is fitted with two thick steel baffle plates firebox.
Page 10: Fitting New Door Glass
FITTING NEW DOOR GLASS FITTING A NEW DOOR SEAL This task may be easier with the door removed from the This task may be easier with the door removed from the appliance and laid horizontally on a work-bench. appliance and laid horizontally on a work-bench. To replace the door glass: Remove any old seal from the door.
Page 11: Fan Replacement
FAN REPLACEMENT Unplug the power lead before proceeding. To change/remove the fan assembly from underneath the Mk2 Pedestal. The pedestal front panel is held on with four philips head screws. Remove these to gain access to the inside of the pedestal. Reinstall a replacement fan by repeating steps 1-3 in reverse.
Page 12: Replacement Spare Parts List
REPLACEMENT SPARE PARTS LIST PART NO. PART DETAIL N900-153 Fire Brick Set 9 @ 230 x 115 x 38mm 2 @ 230 x 56 x 38mm N102-030 Brick Retainer 562mm x 328mm N900-048 Baffle Plate Upper 400 x 160 x 5mm steel N900-083 Baffle Plate Lower 495 x 250 x 5mm steel...
Page 13: Warranty
Australian Trade Practices Act 1974 including the Warranty is provided in Australia by Glen Dimplex Australia Australian Consumer Law or the Consumer Guarantees Pty Ltd and in New Zealand by Glen Dimplex New Zealand Act 1993 New Zealand. Ltd (together referred as “Glen Dimplex”).
Page 14 Glen Dimplex, use of parts not supplied by Glen Dimplex, or damage or other events which have occurred since the product left the control of Glen Dimplex. ● Removal or transportation of such product or part (and any repaired or replacement product or part) to and from the authorized dealer’s or service...
Page 16 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 554 155 General & Sales Enquiries: flame.care@glendimplex.com.au Technical Service: flame.support@glendimplex.com.au www.glendimplex.com.au...
Page 17 Endnotes...
