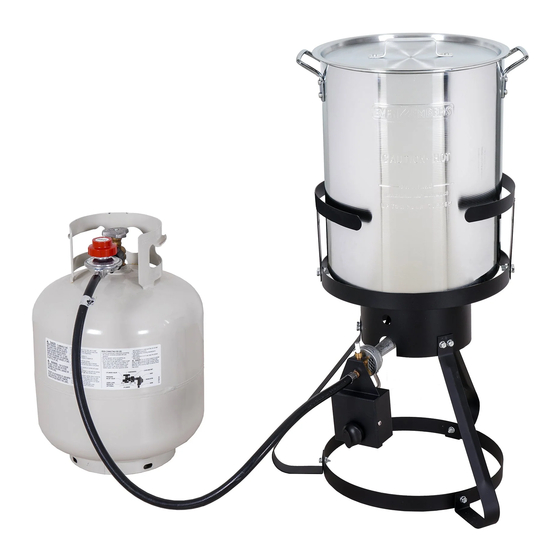

Even Embers GAS3130AS Owner's Manual

Turkey fryer

Hide thumbs

Table Of Contents

Turkey Fryer

OWNER'S MANUAL

ASSEMBLY AND OPERATING IN STRUC TIONS

SAVE THIS MANUAL FOR FUTURE REFERENCE

Model GAS3130AS

WARNING

NOTICE TO INSTALLER:

HAZARDOUS EXPLOSION MAY RESULT IF THESE

LEAVE THESE INSTRUCTIONS WITH

WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND

THE FRYER OWNER FOR FUTURE

FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS

MANUAL TO AVOID PERSONAL INJURY, INCLUDING DEATH

REFERENCE .

OR PROPERTY DAMAGE.

NOTE: Pre-attached label on

THIS INSTRUCTION MANUAL

product with safety warnings.

CONTAINS IMPORTANT

INFORMATION NECESSARY FOR

(Do not remove this label.)

THE PROPER ASSEMBLY AND SAFE

USE OF THE APPLIANCE. READ

AND FOLLOW ALL WARNINGS

AND INSTRUCTIONS BEFORE

ASSEMBLING AND USING THE

APPLIANCE. FOLLOW ALL

WARNINGS AND INSTRUCTIONS

WHEN USING THE APPLIANCE.

NOT FOR COMMERCIAL USE

Table of Contents

Need help?

Do you have a question about the GAS3130AS and is the answer not in the manual?

Questions and answers

Summary of Contents for Even Embers GAS3130AS

Page 1 Turkey Fryer OWNER’S MANUAL ASSEMBLY AND OPERATING IN STRUC TIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Model GAS3130AS WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE LEAVE THESE INSTRUCTIONS WITH WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND THE FRYER OWNER FOR FUTURE...
Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR FRYER AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR FRYER. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR FRYER.
Page 3: Table Of Contents
TABLE OF CONTENTS: General Warnings ..........3-4 LP Gas Cylinder (Tank) Specifi cations and Installation .
Page 4: General Warnings
Use only replacement thermometer # 3130-600-3130-4. This thermometer can be obtained by contacting Even Embers at 1-855-735-9922. • Test the thermometer before each use by inserting it into a cooking vessel of boiling water and ensure that it registers approximately 212°F +/- 20°F (100°C +/- 10°C).
Page 5 Only use replacement hose # 3130-600- 3130-15. This hose can be obtained by contacting Even Embers at 1-855-735-9922. Replace hose at least every two years. Keep the fuel supply hose away from any heated surfaces.
Page 6: Lp Gas Cylinder (Tank) Specifications And Installation
LP GAS CYLINDER (TANK) SPECIFICATIONS AND INSTALLATION: WARNING • ONLY connect this fryer to a Type 1 cylinder valve. The Type 1 valve can be identifi ed with the large external threads on the valve outlet. • DO NOT connect to a propane cylinder exceeding a 20 lb. (9.1 kg) capacity. •...
Page 7 To check your local codes, see your local LP gas dealer or natural gas company. This fryer was not intended to be connected to a natural gas supply line. If an external electrical source is utilized, it must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA 22.1.
Page 8: Hose & Regulator Specifications And Installation
HOSE & REGULATOR SPECIFICATIONS AND INSTALLATION: WARNING • DO NOT attempt to connect fryer, as purchased for LP (propane) gas, to any other fuel supply source such as a natural gas line. • DO NOT use any other pressure regulator/hose assembly other than the one supplied with your fryer.
Page 9: Leak Testing
LEAK TESTING: WARNING • Never use your fryer without leak testing all gas connections, hoses and propane tank. Follow the section on “Leak Testing” in this manual for proper procedures. DANGER To prevent fi re or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. •...
Page 10: Pre-Start Check List
PRE-START CHECK LIST: DANGER Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the fryer has been assembled and prior to each use. DO NOT operate this fryer until you have read and understand ALL of the warnings and instructions in this manual.
Page 11 8. If burner does NOT ignite immediately, turn the regulator control knob and cylinder valve to OFF, wait 5 minutes for gas to evacuate and repeat steps 1 through 7 until burner ignites. 9. If the burner does not light within the fi rst few attempts, there is a problem with the gas supply.
Page 12: Operating Instructions
OPERATING INSTRUCTIONS WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. • Never leave heating oil unattended - it can ignite. •...
Page 13 USING COOKING VESSEL WITH TURKEY STAND AND HANGER: Note: When deep frying a whole turkey, select a turkey in the 10 to 20 lb. range and thaw completely. Cooking Vessel Thermometer 1. Determine the amount of oil required by following instructions above.
Page 14: Proper Care And Maintenance
Clean appliance with mild dishwashing detergent, hot water and sponge. A soft bristle brush can also be used. • Inspect entire appliance including hose & regulator and replace any damaged or worn parts. Use only parts specifi ed by Even Embers.
Page 15: Transporting And Storage
TRANSPORTING AND STORAGE: WARNING • Never move a fryer when hot or in use. • Make sure that cylinder valve is closed. • DO NOT store a spare LP gas cylinder (fi lled or empty) under or near the fryer. •...
Page 16: Troubleshooting
TROUBLE SHOOTING: Problem Possible Cause Prevention/Cure Burner will not light LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank, turn LP gas tank valve to “OPEN” LP gas tank is low or empty Check if LP gas tank is empty.
Page 17: Assembly Instructions
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR FRYER. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN AS SEM BLING THIS UNIT. The following tools are required to assemble this Even Embers Turkey Fryer: • Phillips Screwdriver • Adjustable Wrench...
Page 18 Valve Attach the burner valve on the timer control by turning the burner counterclockwise. Do not over tighten burner to the valve. M8 Nut Unscrew pre-assembled M8 hex nut from thermocouple. Insert thermocouple through the hole in bracket of burner .
Page 19 Attach legs to frame assembly using six M6 hex bolts and M6 nuts. Attach bottom ring legs using three M6 hex bolts and M6 nuts. Unscrew pre-assembled M5 lock nut and M5 fl ange nut from burner . Attach the burner to the burner support bar of frame assembly...
Page 20 LISTED ABOVE FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIM I TA TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE EVEN EMBERS ®...
