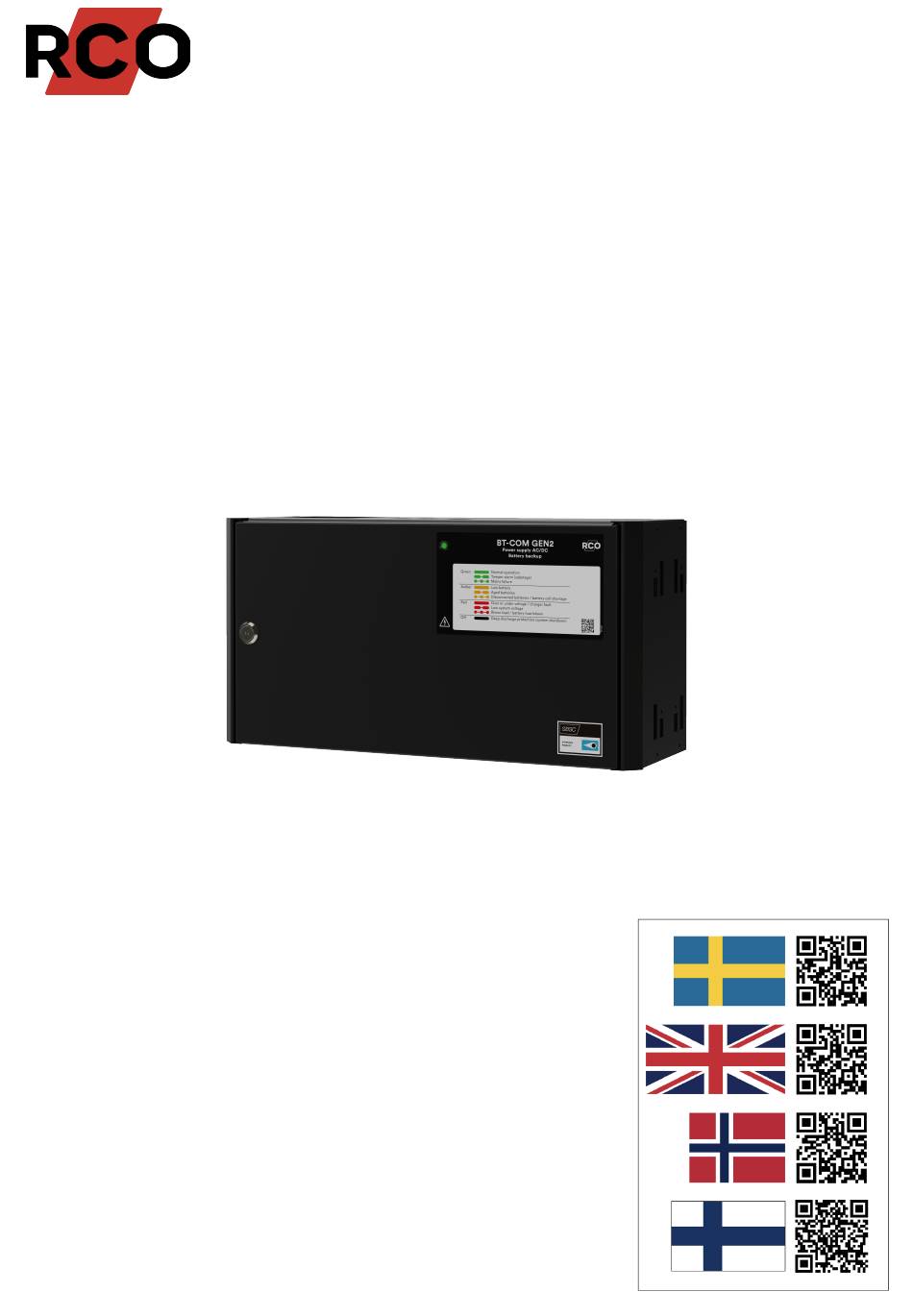

- Page 1 Power Supply BT-5 FLX Small COM Gen2, BT-10 FLX Small COM Gen2...
- Page 2 350-258 Publication date 2024-05-23...
-
Page 3: Table Of Contents
Power supply Table of Contents Revisions and the edition of this document ....................5 You can find manuals at: www.milleteknik.se/rco-dokument ..............5 Links to manuals and product sheets ....................5 Address and contact details ....................... 5 Component overviews ..........................7 Component overviewBT FLX Small COM Gen2 ................ - Page 4 Power supply Circuit boards - Technical data ....................... 27 Technical data, motherboard: PRO 3 ..................27 Technical data, PRO3 I2C board ..................... 28 Power supply ........................... 29 Power supply - Technical Data LRS-150-24 ................29 Power supply - Technical Data RSP-320-24 ................29 Technical data enclosures .......................
-
Page 5: Revisions And The Edition Of This Document
Power supply Revisions and the edition of this document The current and most recently published edition of this document is available at www.rco.se. Audit log can be requested, see contact information for address or e-mail address. The validity of this document can not be guaranteed, as new editions are published without prior notice. - Page 6 Power supply READ THIS FIRST! 100 mm free space must be left on each card side. Ventilation must not be covered. Electronics, regardless of enclosure, are intended for use in a controlled indoor environment. Mains voltage should be disconnected during installation. It is the installer's responsibility that the system is suitable for its intended use.
-
Page 7: Component Overviews
Power supply Component overviews Component overviewBT FLX Small COM Gen2 Table 1. Component overview Number Explanation Bracket, reversible for wall mounting or 19 "rack. Sabotage contact. If alarm class 3 (SSF) is to be met, the tamper switch must be on the wall. Cabinet in powder-coated sheet metal. -
Page 8: Mounting
Optional cards fitted on delivery Additional cards that can be mounted BT-5 MEDIUM 1 BT-Fuse 5. BT-5 FLX Small COM Gen2 1 pc. BT-Fuse 5 or 1 pc. BT-Fuse 10. BT-10 FLX Small COM Gen2 1 pc. BT-Fuse 5 or 1 pc. BT-Fuse 10. -
Page 9: Batteries - Placement And Connection
Power supply Batteries - placement and connection Connect battery fuse / blade fuse Figure 1. Fuse holders with blade fuses are connected to + and minus on batteries Connection of batteries in FLX S, FLX M and FLX L Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring. -
Page 10: Pro3 Motherboard
Power supply PRO3 motherboard Motherboard - description The motherboard controls the device and distributes power. See technical data for more information. Figure 3. PRO3 Table 4. Circuit board overview, explanation No . On circuit board Explanation Power supply control. 1=not prioritized 2=external alarm. LED. -
Page 11: Fuses
Power supply Fuses Table 5. Fuses on PRO3 / NEO3 Fuse Type Explanation T2.5A Mains fuse T16A Load fuse 1 - (for P2:2) T16A Battery fuse T3A-T10A* Load fuse 1+ (for P2: 1) T3A-T10A* Load fuse 2 + (for P2:3) FUSE REPLACEMENT WARNING (A) There is a risk of damage if the fuse is changed to a larger one than what the unit is delivered with. -
Page 12: Connect Load
Power supply Connect load MAX CURRENT The maximum current must not be exceeded. Max current is indicated on nameplate on the device. LOAD OUTPUTS WHEN SSF CERTIFIED In order for certificates to be maintained, only one load output must be used. If there are one or more connection cards (to increase the number of load outputs), load must be connected there and not on the main board. - Page 13 Power supply Table 9. Addressing Dip-Switch 1-4 Dip: 1 Dip: 2 Dip: 3 Dip:4 Adress 1 Adress 2 Adress 3 Adress 4 Adress 5 Adress 6 Adress 7 Adress 8 Adress 9 Adress 10 Adress 11 Adress 12 Adress 13 Adress 14 Adress 15 Mains failure delay (dip 5-6)
-
Page 14: Reboot To Confirm Changes In Address, Battery And Alarm Settings To Parent System
Power supply NOTICE For certified units: To comply with SSF-1014 up to alarm class 4, the LED on the door must be off (Dip-switch 8 to ON). Battery test (dip 8) To do a battery test, dip 8 needs to change position and five seconds need to pass before the test is initiated. •... -
Page 15: Card Description - Relay Card Nova Series (Pro3)
Power supply • Insert jumper on J11 and remove jumper on J11 After doing step, the battery capacity is cleared in the units memory and is ready to read the new battery capacity. This procedure needs to be done each time the batteries are replaced or when connecting a battery box. NOTE ON TEST OF BATTERIES At start-up, it takes 72 hours before the system performs battery tests. -
Page 16: Bus Communication - Connection To Uc-50 Gen2
Power supply On circuit board Explanation P5:7 System minus Connection to PRO3 card. For internal programming. Do not use. IMPORTANT Do you use I C cards, you cannot use relay cards. Bus communication - connection to UC-50 Gen2 Connection to UC-50 Gen2 is made according to sketch. - Page 17 Power supply The picture shows the connection from the battery backup to the UC-50 Gen2. Figure 5. Connection to UC-50 Gen2 Table 12. Bus communication - connection to UC-50 Gen2. On PCB in UC-50 Gen2 On PCB in power Color of cable Explanation supply SDA, P6:42...
-
Page 18: Bridge Of Uc-50 Gen2
Power supply IMPORTANT Cable length max 3 meters. Cable must not be twisted in pairs. Bridge of UC-50 Gen2 When installing in environments sensitive to interference, communication interruptions may occur. By bridging to 0 V on the UC-50 Gen2, interference can be avoided. IMPORTANT The bridge must be located: i C, P6 to DC-IN, P6:12. -
Page 19: Multiple Units Into One Parent System
Power supply Multiple units into one parent system To connect several units to a higher system, the load-minus between several battery backups must be connected together. -
Page 20: Commissioning - How To Start The Unit
Power supply Commissioning - how to start the unit Connect batteries Connect / switch on fuses connect load, alarm and possibly. other connections. Screw the mains cable into the terminal block and attach the terminal block to the motherboard. Switch on mains voltage. The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. -
Page 21: System Test
Power supply System test Test the connected device by performing a system test afterwards commissioning [20]. IMPORTANT Let the batteries charge for a couple of hours, use a multimeter to measure the voltage on each battery. The voltage must be at least 12.7 V per battery. •... -
Page 22: Adjustment Of Tamper Switch
Power supply The indicator diode (LED) shows Explanation Solid yellow light Low battery voltage. Slow yellow flashes Aged batteries. Rapid yellow flashes Disconnected batteries / battery cell shortage. Solid red light Overvoltage or undervoltage or charger fault. Slow red flashes Low system voltage. -
Page 23: About Batteries
Power supply Check the fan annually. The fan should rotate smoothly without any noise. Clean the fan from dust and dirt. The fan must be replaced if it does not rotate smoothly or is so dirty that it cannot be completely cleaned. If the fan does not work well, the air flow in the unit will be obstructed, which leads to an increase in heat in the enclosure, which can lead to a deterioration of the battery capacity and to a significantly shorter battery replacement interval. -
Page 24: Product Life Cycle, Environmental Impact And Recycling
Power supply Product life cycle, environmental impact and recycling The product is designed and constructed for a long service life, which reduces the environmental impact. The product's service life depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external damage, handling errors, and more. Products are recycled by being handed over to the nearest recycling station or sent back to the manufacturer. -
Page 25: Ssf1014 Certified Battery Backup With Communication
52 576 97 BT-5 FLX SMALL COM 28160120 52 574 54 BT-5 FLX Small COM Gen2 from 20231016 28160121 About BT FLX COM Gen2 BT FLX COM Gen2 is mainly used in safety systems where SSF 1014 approved battery backup is required or where the requirements are higher. -
Page 26: Regulations And Certifications
Power supply The unit meets the requirements for installation in systems that must be SSF 1014 approved. SSF 1014 certificate is only valid for certification together with a higher-level system. IMPORTANT In order for the SSF 1014 certificate to be valid, only one (1) load output may be used. Regulations and certifications Standards that product (s) meet and are approved for Table 15. -
Page 27: Circuit Boards - Technical Data
Power supply BT-5 FLX Small COM Gen2 2 pcs. 14 Ah 1.1 A 0.45 A BT-5 FLX Small COM Gen2 + 6 pcs 14 Ah (42 Ah) 3.4 A 1.4 A Batteribox 24V FLX S BT-10 FLX Small COM Gen2 2 pcs. -
Page 28: Technical Data, Pro3 I2C Board
Power supply Info Explanation Surge protection (Yes / No) Overtemperature protection (Yes / No) Short circuit protected = (Yes / No) Technical data, PRO3 I2C board Info Explanation Card name: PRO3 I2C board Version: Product description Card that makes it possible to communicate with UC via i2C. Recommended environment Indoors, class 1. -
Page 29: Power Supply
Power supply Power supply Power supply - Technical Data LRS-150-24 BT-5 FLX SMALL COM Gen 2 Info Explanation Output voltage 27.3 V Output current: 0 A - 6.5 A Output voltage, ripple 200 mVp-p Overvoltage 28.8 V - 33.6 V Voltage recharge, ripple / current limitation Less than 0.6 Vp-p Efficiency... -
Page 30: Technical Data Enclosures
Power supply Info Explanation The power supply is adapted and calibrated with the battery / hardware of the battery backup. Only power and calibrated power supplies may be used. Contact support when changing power supplies. Use of power supplies coming from another source may cause damage not covered by the warranty. Warranty is canceled if power supplies (from a source other than support / designated by support) that are not correctly calibrated are used. -
Page 31: Country Of Manufacture
Power supply Support after the warranty period Milleteknik provides support during the life of the product, but no longer than 10 years after the date of purchase. Replacement for an equivalent product may occur if the manufacturer deems that repair is not possible. -
Page 32: Connection Of Battery Box
Power supply Connection of battery box Mounting for battery backup in FLX S housing The battery box is mounted on a wall or in a 19" rack, below the battery backup. Cable entries are located at the top of the housing and in the middle on its back. -
Page 33: Connection Battery Box Bt Flx Com Gen2 With Battery Backup Bt Flx Com Gen2
Power supply Connection battery box BT FLX COM Gen2 with battery back- up BT FLX COM Gen2 The picture shows a battery backup with extra battery box with 2 batteries. The picture also gives an overview of connection points for battery cables and battery fuses. Table 23. -
Page 34: Tamper Switch When Using Battery Box(-Es)
The cable must not be cut on the last connection / battery box. Address and contact details RCO Security AB Box 3130 S-169 03 Solna... - Page 35 This page is intentionally left blank.
