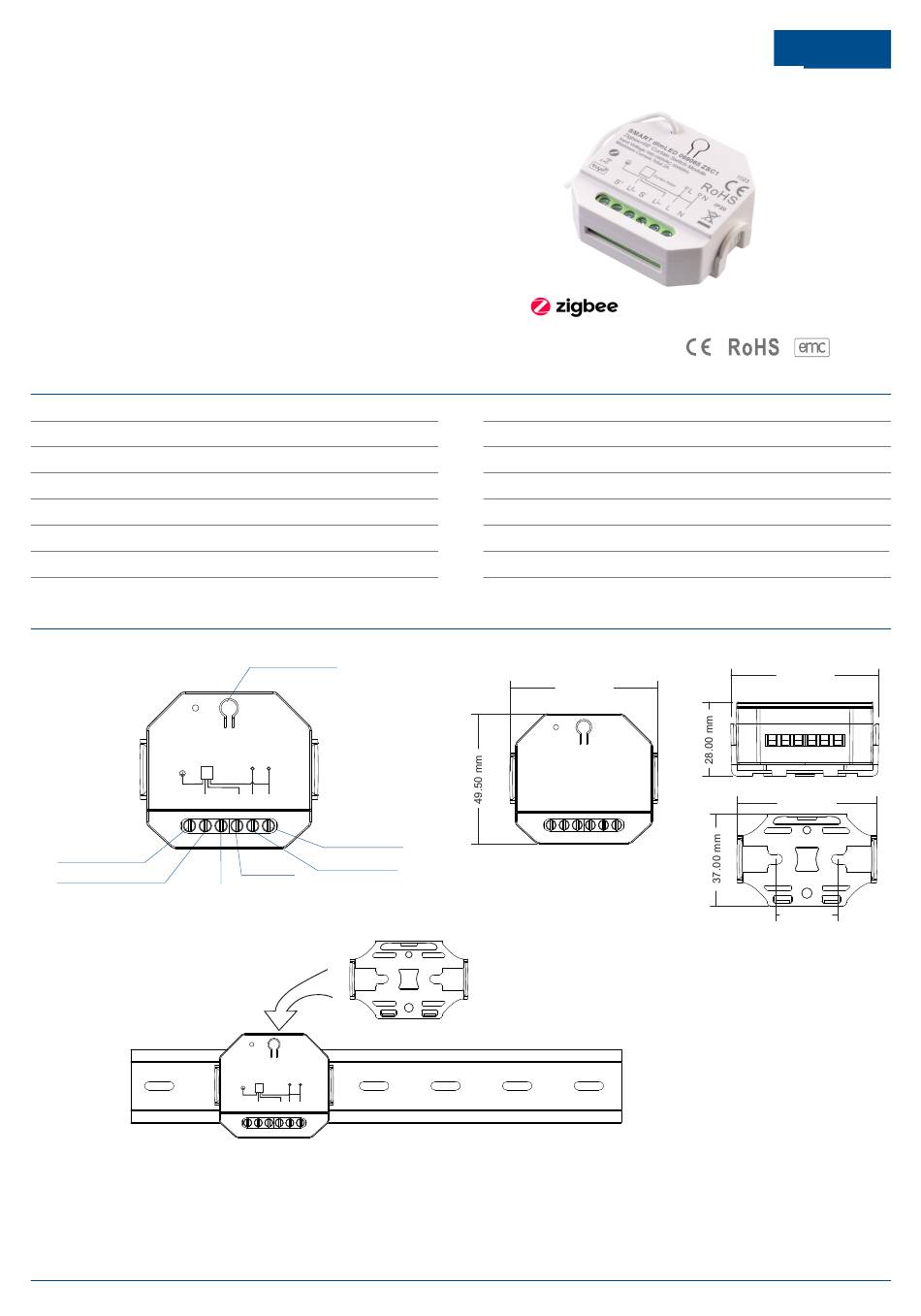

TUYA ZIGBEE ZSC1 Quick Start Manual

ZIGBEE ZSC1
Zigbee
+

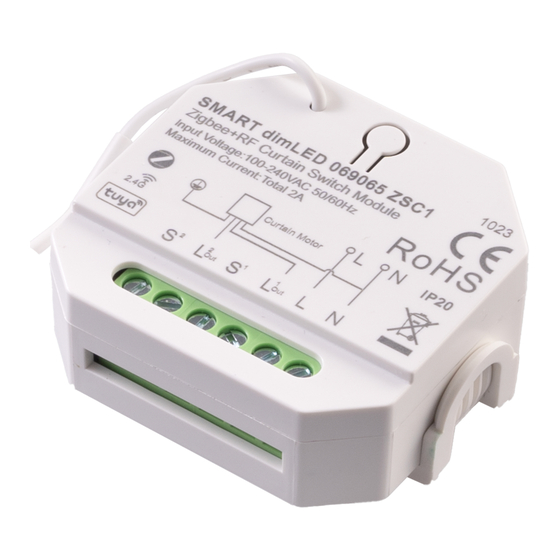

RF Smart Curtain Switch Module
● Zigbee Smart life APP cloud control, support timing on/off, motor commutation function.
● Connect with two push switch to control curtain on/off position percentage.
● Sound alert: within 3 seconds time, the opening/closing action exceeds 7 times,
the curtain switch module issues a sound alert until it is no longer operated.
● Voice control, support for Amazon Alexa, Google Assistant,
Tmall Genie and Xiaodu smart speakers.
● Match with RF 2.4G dimming remote control optional.
Technical Parameters
Hardware parameters
100-240VAC
50/60Hz
Input voltage
Output current Max. 2A(AC)
Output power
200-480W
Input signal Tuya APP + RF 2.4GHz + Push switch
Control distance 30m(Barrier-free space)
Mechanical Structures and Installations
2
S L
Push switch input
2
AC
L
output 2
Push switch input
1
Installation way
Note:
1. The installation must be installed or removed by a professional electrician.
2. Please keep the device out of the reach of children.
3. Please keep away from water, humid or hot environment.
4. The device should be kept away from strong signal sources (such as microwave ovens) to avoid signal interruption and cause the device not to work properly.
5. Avoid placing the device close to or near high-density materials (such as metal, concrete walls, etc.), which will reduce or block the wireless signal.
User Manual Ver 1.0.0
2023.10
Match
key
L N
Curtain Motor
2 1 1
S L L N
Out Out
AC
N
input
AC
L
input
AC
L
output 1
Installation clip
L N
Curtain Motor
S 2 L 2 S 1 L 1 L N
Out Out
Environment and Warranty
Operation temperature
Ta: -10
Tc: +65
Casetemperature(Max.)
2
years
Warranty
Package
Size
L 56xW56xH35mm

0.066kg
Gross weight
56.00 mm
Zigbee
RED


O

O
C ~ 55
C
O C
56.00 mm
56.00 mm
25.00 mm
