OPERATING INSTRUCTIONS
Pump Control
with device switch-off
SHT 217 | SHT 218
SHT 227 | SHT 228
Item number
300217 | 300218 | 300227 | 300219
300217 | 300218 | 300227 | 300219

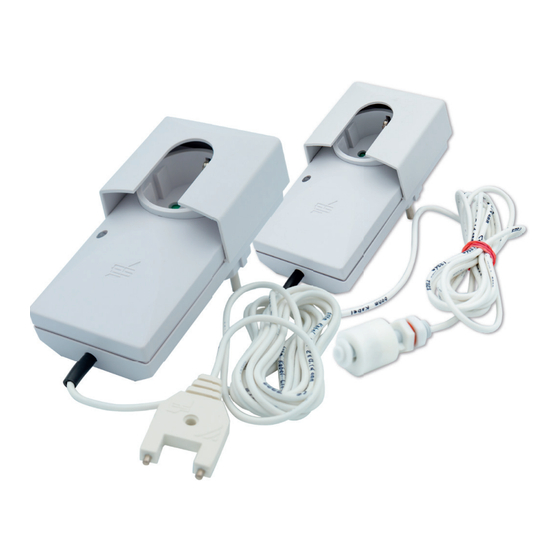

• Intermediate plug housing with device switch-on
with fork water sensor or mini fl oat switch
Overrun time adjustable 0-100 seconds
up to 2300W / 3500 VA switching capacity
www.elektrotechnik-schabus.de
Advertisement
Related Manuals for Elektrotechnik Schabus SHT 217
Summary of Contents for Elektrotechnik Schabus SHT 217
- Page 1 OPERATING INSTRUCTIONS Pump Control with device switch-off SHT 217 | SHT 218 SHT 227 | SHT 228 Item number 300217 | 300218 | 300227 | 300219 300217 | 300218 | 300227 | 300219 • Intermediate plug housing with device switch-on with fork water sensor or mini fl...
- Page 2 Intended use The SHT 217 | 218 | 227 | 228 pump control units are devices for detecting changes in water level and monitoring pump sumps. As soon as the sen- sor | mini fl oat switch comes into contact with water, a connected pump is switched on.
- Page 3 Technical data SHT 217 | SHT 218 and SHT 227 | SHT 228 Operating voltage: 230 V~ (+/-10%) / 50-60 Hz Power consumption: approx. 3 W Switching capacity: 3500 VA (2300 W) / 16 A (10 A) Operating range: -15 °C / +40 °C...
- Page 4 Functional description SHT 217 | 218 with sensor The SHT 217 | 218 pump controller switches a connected water pump on when a certain water level is reached and switches it off again after an adjustable run-on time of 0 to 100 seconds after the sensor has dried.
-
Page 5: Installation Instructions
ATTENTION: Do not operate the device outdoors! We recommend SHT 227 or 228 for pump sumps. SHT 217 Sensor installation SHT 217 | SHT 218 The sensor reacts to contact with water at the two metal contacts. The mounting position of the sensor defi nes... - Page 6 Once the alarm has been triggered, the set run-on time only becomes active when the water level falls below the level of the water sensor | water level switch during pumping. When setting the run-on time, make sure that the pump does not run idle (dry running) after the water volume has been pumped out.
- Page 7 General information Elektrotechnik Schabus GmbH & Co. KG is not liable for damage and/or losses of any kind, e.g. individual or consequential damage, resulting from the fact that no alarm signal is given by the water detector despite changes in the water level.
- Page 8 Pump control SHT 217 Pump control SHT 227 https://www.elektrotechnik-schabus.de/ downloads QR code for download or reorder: Elektrotechnik Schabus GmbH & Co. KG +49 (0) 80 36 / 67 49 79 - 0 Baierbacher Str. 150 MAIL info@elektrotechnik-schabus.de D-83071 Stephanskirchen www.elektrotechnik-schabus.de...
