Electronics Corporation

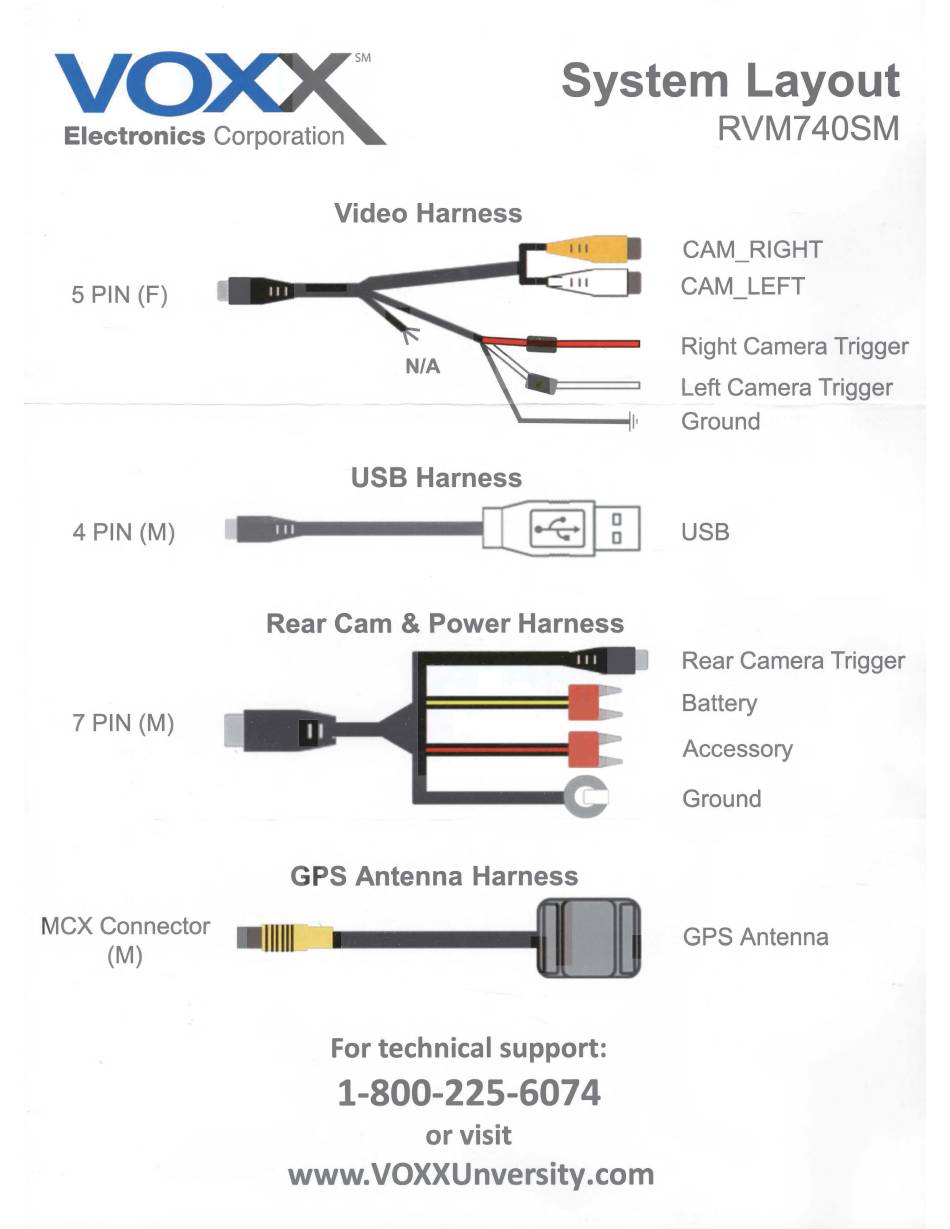

System Layout
RVM740SM
5 PIN (F)
4 PIN (M)
7 PIN (M)
MCX
Connector
(M)
Video Harness
.
I•
USB Harness
D
a
Rear Cam & Power Harness
GPS
Antenna Harness
i 1 :1r1
For technical support:
1-800-225-607 4
or visit
www.
VOXXU nversity .com
CAM RIGHT
CAM LEFT
Right Camera Trigger
Left Camera Trigger
Ground
USB
Rear Camera Trigger
Battery
Accessory
Ground
GPS Antenna
