Classification: Public, Author: RMC, 13.6.2024, for firmware version: 1.0
HEAD OFFICE
CONTACTS
Digiteq Automotive s.r.o.
+420 239 046 750
Novodvorská 994/138
info@digiteqautomotive.com
142 21, Prague 4
www.digiteqautomotive.com
Czech Republic
A Volkswagen Group Company

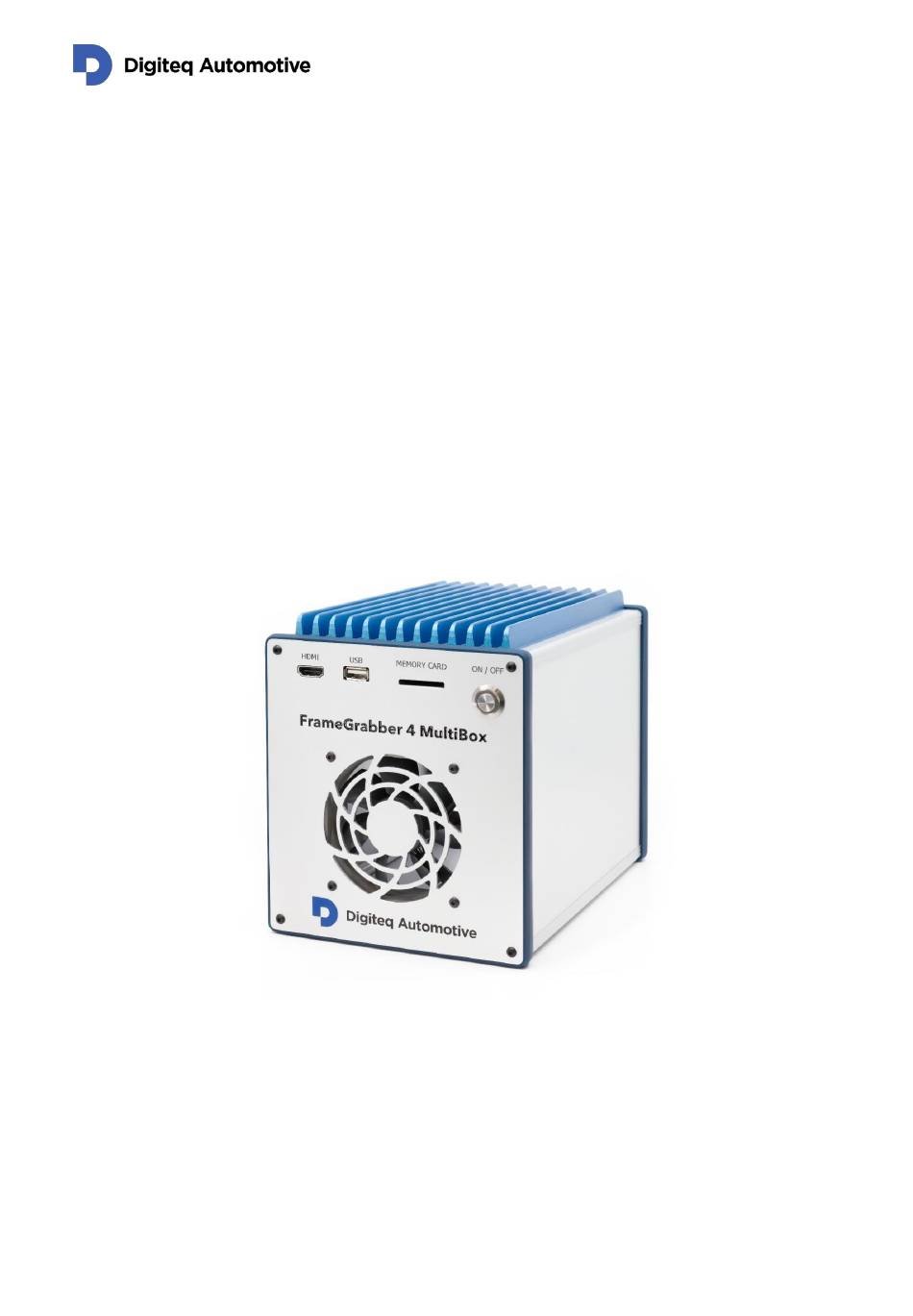

FG4 MultiBox
Quick Start Guide
BILLING INFORMATION
Company ID. No. 26 46 60 23
VAT ID No.: CZ 26 46 60 23
registered by the Municipal Court in
Prague, Section C, Insert 84128
Type of information: Veřejné
MANAGEMENT BOARD
BANK ACCOUNT
Wilhelm Schmitt
Commerzbank Aktiengesellschaft
Pavel Štěpánek
Jugoslávská 1, 120 21 Prague 2
Account No.: 10634787/6200 (EUR)
IBAN: CZ4262000000000010634787
SWIFT: COBACZPXXXX
DQ-SA-06-EN, Version 0.4 valid from 2. 11. 2018
1/14
Advertisement
Table of Contents
Summary of Contents for Digiteq Automotive FG4 MultiBox
- Page 1 FG4 MultiBox Quick Start Guide Classification: Public, Author: RMC, 13.6.2024, for firmware version: 1.0 HEAD OFFICE CONTACTS BILLING INFORMATION MANAGEMENT BOARD BANK ACCOUNT Digiteq Automotive s.r.o. +420 239 046 750 Company ID. No. 26 46 60 23 Wilhelm Schmitt Commerzbank Aktiengesellschaft Novodvorská...
-
Page 2: Table Of Contents
Content Overview .............................. 3 Power ..............................3 Connection to power supply ......................3 Power consumption and power supply requirements ..............3 Powering ON / OFF .......................... 3 LED Status ............................3 Ethernet connection ..........................4 Default IP address ..........................4 IP address and DHCP setup ...................... -
Page 3: Overview
Overview The FG4 Multibox consists of FG4 Box, FG4 PCIe Card(s), and Interface Module(s). Power Connection to power supply Use the included power cable to connect to the power supply or to your test bench sockets with banana plugs. Power consumption and power supply requirements The input voltage range is 10 to 30 Volts DC. -
Page 4: Ethernet Connection
Ethernet connection Default IP address The default IP address of the web user interface is 192.168.1.200/24. IP address and DHCP setup Open the web UI, go to "Other Settings" and change the "eth0" IP address to the desired value (e.g. 192.168.4.200). -
Page 5: Dashboard (Web Ui)
Dashboard (Web UI) The dashboard is the main page of the web user interface. Connected Hardware • The installed PCIe cards, module types, and their current Input/Output status • Ethernet device(s) status (current IP address) • Mounted storage devices Detected Hardware •... -
Page 6: Video Inputs
In this section, configure the parameters for video inputs. The displayed settings depend on the installed interface module type. If the input is enabled, the video signal is received from the FG4 PCIe Card for further processing in the FG4 MultiBox. Video Input Status Shows detected parameters of the incoming video signal. -
Page 7: Sinks
Sinks For each video input, there are two “sinks” available: • VIDEO - Sends a video stream via the TCP port and saves it to a file. • PICTURE - Takes a screenshot, sends it via the TCP port, and saves it to a file. Video Enable this feature to send a video over the TCP port as a Video Transport Stream or to save it to the internal storage (SATADISK). - Page 8 The TCP Video Transport Stream can be played on a computer on the same LAN network using VLC player. Follow these steps: 1) Click on "Open Network Stream," 2) Enter the network URL in the format for example: “tcp://192.168.1.200:51008”. 3) Play Type of information: Veřejné...
-
Page 9: Picture
Picture Enable this feature to capture the images (.png) from FG4 input. In triggered mode, a single image is captured only if the “Trigger Image” event occurs or if the “Trigger Image Now” button is pressed. If not in Triggered mode, the images will be captured continuously. If the Images are to be saved, enable the "File Writer"... -
Page 10: Video Outputs
Video Outputs In this section, configure the parameters for video outputs. The displayed settings depend on the installed module type. FPD Link 3 Specify the desired FPD Link 3 output signal parameters. To use the same output parameters as detected on input, click the “Import Settings” button to retrieve values from IN1 or IN2. -
Page 11: Gmsl 2/3
GMSL 2/3 As the output back to the display(s) use the Daisy Chain output, marked as “DCH1” on the interface module, instead of outputs “OUT1” or “OUT2”. Note: The separate GMSL 2/3 Outputs OUT1 and OUT2 are currently not implemented yet. HDMI Preview The HDMI Preview function allows to send a signal directly to the monitor screen. -
Page 12: File Systems
File Systems Access to the connected storage devices or upload firmware update files. SATA Disk The Box is equipped with a 500 GB SATA disk for storing videos, images, etc. It is mounted to the file system as “satadisk”. Configuration backup and restore To backup all configuration settings, navigate to “Other Settings”... -
Page 13: Firmware Update
Then, upload the “mgb4-install.tgz” file that was previously downloaded from the product website. To force firmware flashing after reboot, create the "mgb4-flash" flag file. To keep the configuration*, create the "mgb4-keep" file. After uploading the files, reboot the FG4 MultiBox by pressing the "REBOOT" button. -
Page 14: Support Contact
Support Contact e-mail: support.products@digiteqautomotive.com website: https://products.digiteqautomotive.com/fg4_multibox/ Type of information: Veřejné A Volkswagen Group Company DQ-SA-06-EN, Version 0.4 14/14...
