Summary of Contents for ZLAN ZLAN9809M
- Page 1 Translated from Chinese (Simplified) to English - www.onlinedoctranslator.com DIN-rail 4G router ZLAN9809M 4G/WIFI/RJ45 copyright©2008Shanghai ZLAN Information Technology Co., Ltd. reserves all rights ZL DUI 20221222.1.0...
- Page 2 This document is only used to assist readers in using the product. Shanghai ZLAN is not responsible for any loss or error caused by the use of the information in this document. The products and texts described in this document are under continuous development and improvement. Shanghai...
-
Page 3: Table Of Contents
Table of contents 1. Overview........................1 1.1 Product Appearance....................2 1.2 Product Interface....................2 1.3 Panel Light Introduction..................3 2. Technical Parameters....................3 3. Instructions for use....................5 3.1.connect9809Mrouter...................5 3.2.Configuring Network Connections..................7 3.2.1. WIFIRelay Mode....................7 3.2.2. WIFIBridge Mode....................12 3.2.3.Wired Mode....................13 3.2.4. -
Page 4: Overview
WEB configuration, making network management more convenient and efficient. In terms of hardware, ZLAN9809M is equipped with a high-performance 32-bit processor, which can quickly process various network protocols and large amounts of data. In addition, it is equipped with multiple interfaces, including 4 10/100M LAN ports, 1 WAN port, WIFI interface and 4G interface, making it easy to connect to various terminal devices. -
Page 5: Product Appearance

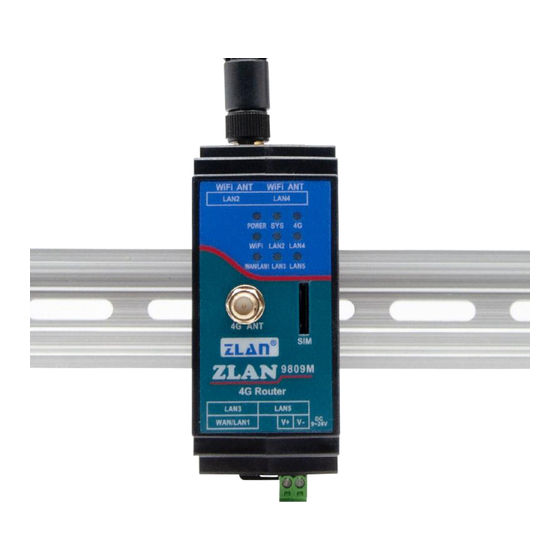

When the WLAN port is disconnected, ZLAN9809M can quickly switch to the 4G network; Appearance picture2 ZLAN9809MAppearance Product Interface 1.9809M has 4 LAN ports, 2 on the left and 2 on the right, and a WAN port next to the power supply. -
Page 6: Panel Light Introduction
Panel Light Introduction The panel lights of 9809M are shown in the figure: POWER WIFI LAN2 LAN4 LAN3 LAN5 WAN/LAN1 picture3Panel Light The specific meanings of the indicator lights are shown in the figure below: name color illustrate WAN/LAN1 WAN port indicator light, on means the WAN port is connected green WIFI WiFi indicator light, on/flashing means WiFi is working properly... - Page 7 Voltage:3V,1.8V; Size: Medium Card SIMCard 50Ω/SMAGlue stick antenna or suction cup antenna optional Antenna interface Power interface Power supply input via terminal block. DC9V~24V Input voltage LANmouth*4,WANmouth*1,SIM*1,4Gantenna*1,Wi-Fiantenna interface basic skills Network port to network port/WIFI,WIFITransfer network port/WIFI,4GTransfer network port/WIFI Firewall, static routing, log service, channel analysis,DHCP/DNS, Network Advanced Features diagnostics, hostname mapping 37.6(L)x 83.6(W)x 89.2(H)mm...
-
Page 8: Instructions For Use
Connect to the WiFi ZLAN-XXXXXXXX, the default password is 66666666. If you have an Ethernet cable and plan to connect the device via a wired connection, directly connect the Ethernet cable to any LAN port, open your browser, enter 192.168.8.1 in the address bar, press Enter to confirm, and you can open the 9809M web page. - Page 9 picture5 webLogin Page There is no password initially, just click to log in, and you will enter the configuration page after logging in: picture6 webConfiguration Page Click Network -> Interface, and you can see the existing interfaces of the device, mainly LAN port, WAN port, and WAN_4G port. WAN port is mainly used to provide users with external network access services, while LAN port is mainly used to provide users with local area network access or output interface.
-
Page 10: Configuring Network Connections
The router can receive data packets sent by devices in the local area network and forward them to the Internet or other networks. picture7Interface Page 3.2.Configuring Network Connections Initial configuration: Click the menu bar on the left side of the web page: Network -> Interface, and you can see the interface page shown in Figure 7. - Page 11 A 2.4G wireless network card. picture9Wireless Overview WIFI relay mode, that is, the 9809M router accesses the upper network through the upper WIFI, and your device accesses the 9809M router through wired or WiFi. Before setting, please ensure that the upper WiFi network can connect to the public network and connect the WiFi antenna.
- Page 12 picture11Join the network Step 3: Enter your parent network password on the page that opens). The default new network interface name is wwan, you can modify it yourself, then click the Submit button in the lower right corner, and the second interface will pop up. picture12Modify the network interface name The second page has options such as operating frequency and transmission power.
- Page 13 picture13Interface Configuration After clicking Save, you will enter the page shown below, where you can see an additional mode for the wireless profile:ClientWireless. The web page prompts that there are multiple unapplied changes in the interface. Click Save and Apply to make them take effect. picture14Save Button Step 4: Click the menu bar on the left: Network ->...
- Page 14 picture15Interface Page Step 5: Click the left menu bar: Network -> 4G Network -> 4G Settings: Set the WAN port mode to wired_mode: (If it is already wired, you don’t need to perform this step) picture16Wired Mode Step 6: Click the menu bar on the right: System -> Restart, click the Execute Restart button to restart the router: picture17Reboot the device...
-
Page 15: Wifibridge Mode
After the restart is complete, the WiFi relay is set up, and the router has access to the external network through the upper WiFi. Connect your device to the router via wired or WiFi (this WiFi refers to the WiFi sent by 9809M, named zlan+id, the default password is 8 sixes) to access the Internet. -
Page 16: Wired Mode
Check whether the relay interface has an IP. If there is an IP, it means the relay has been successful. Figure 20 Relay interface After the settings are completed, wait for 10 seconds to complete the configuration. At this time, the router can be bridged to the upper-level AP via WIFI, and the network device can obtain the network segment assigned by the upper-level AP by plugging the network cable into the LAN port. - Page 17 Figure 22 WAN port diagram Step 2: Click the menu bar on the left: Network -> 4G Network -> 4G Settings: Set the WAN port mode to wired_mode: (If it is already wired, you don’t need to perform this step) and click Save and Set in the lower right corner. Figure 23 Wired priority mode After the settings are completed, wait for 10 seconds to complete the configuration.
-
Page 18: 4Gmodel
3.2.4. 4Gmodel 4G mode means the router accesses the external network by inserting a 4G SIM card. Step 1: Insert the SIM card and connect the 4G antenna. Step 2: Click the menu bar on the left: Network -> 4G Network -> 4g Settings: Set the WAN port mode to 4g_mode: (If it is already set, you don’t need to perform this step) and click Save and Set in the lower right corner. -
Page 19: Set Up The Devicewifiparameters
Figure 25 Change login password 4.2.Set up the deviceWiFiParameters In the left menu bar, click Network -> Wireless, select the WiFi you want to edit, and click the Edit button: Figure 26 Wi-Fi parameters In the page that opens, ESSID is the WiFi name, which can be modified here: Figure 27 Modify the wifi name... -
Page 20: Routeripchange
Click the Wireless Security button to modify the WiFi password and encryption method: Figure 28 Modify encryption method and password After completing the settings, click Save in the lower right corner. 4.3.routerIPChange Open the left menu bar: Network -> Interface: Click the Edit button under LAN. Figure 29 Edit LAN parameters You can modify the IP and other properties of the router itself. -
Page 21: Router Firmware Upgrade/Flash
Figure 30 Save LAN parameters Then click Save and Apply in the lower right corner: (If it fails, you can try to force the application, which is recommended). Figure 31 Save application After waiting for about 30 seconds, directly enter the IP address you just set to access the router configuration interface. 4.4.Router firmware upgrade/flashing By flashing the router firmware, you can get the latest features and more stable performance of the 9809M router. -
Page 22: Reset
Figure 32 Backup/upgrade Click the Flash Firmware button, and on the page that opens, click Browse to select the firmware on your computer: Figure 33 Browse firmware After that, click Upload, and you will be prompted to wait for the firmware to be flashed. The flashing will be completed after about 5 minutes. At this time, you need to refresh the web interface to complete the firmware flashing operation. -
Page 23: After-Sales Service And Support
Restoring the device to factory settings will lose all settings you have made and is generally not recommended. 5.After-sales service and support Shanghai ZLAN Information Technology Co., Ltd. Address: Room 2001, Jinyuan Center, No. 28 Yuanwen Road, Minhang District, Shanghai Tel: 021-64325189 Fax: 021-64325200 Website: http://www.zlmcu.com...
