Summary of Contents for ASES Security PA CUM TALKBACK PANEL

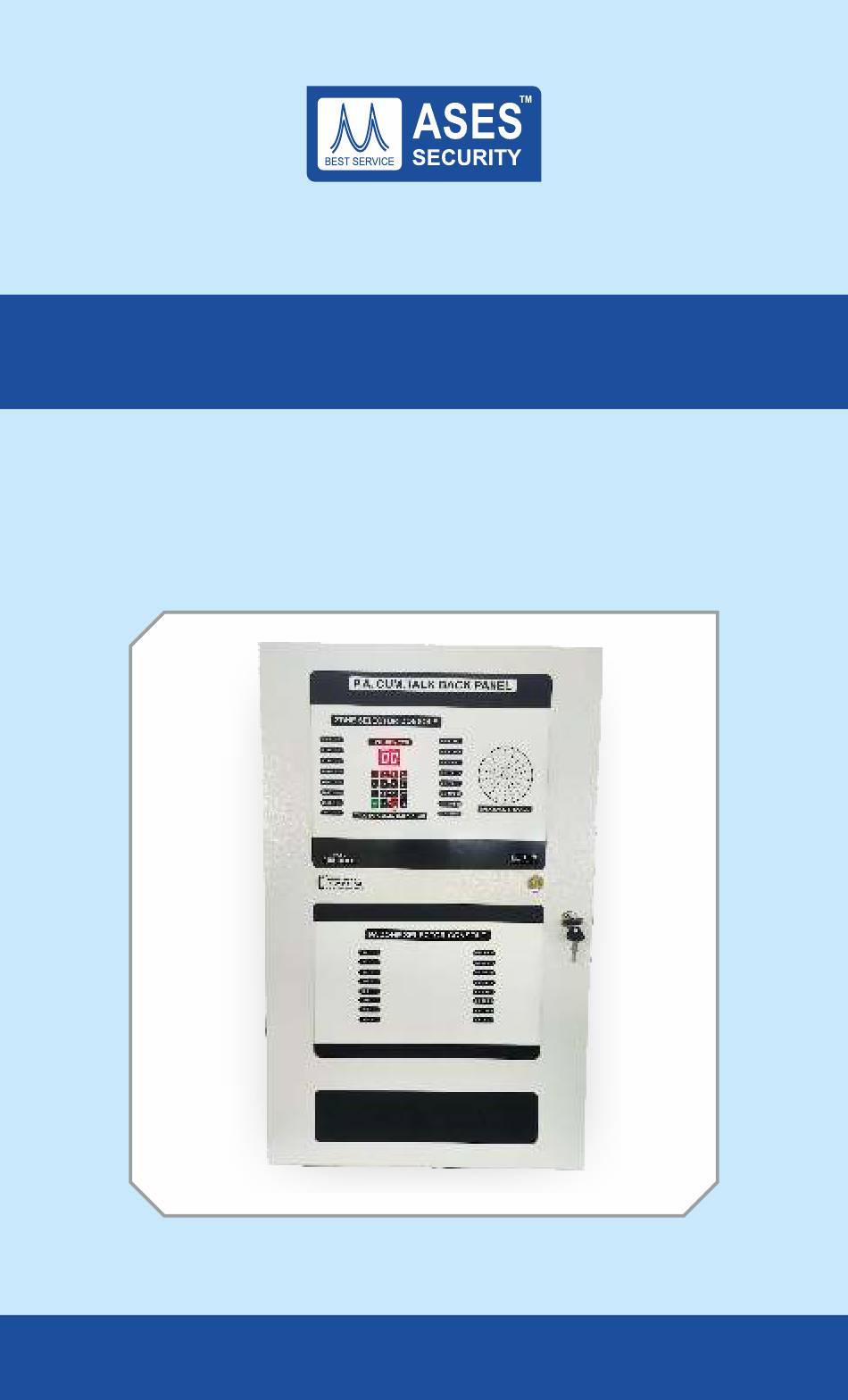

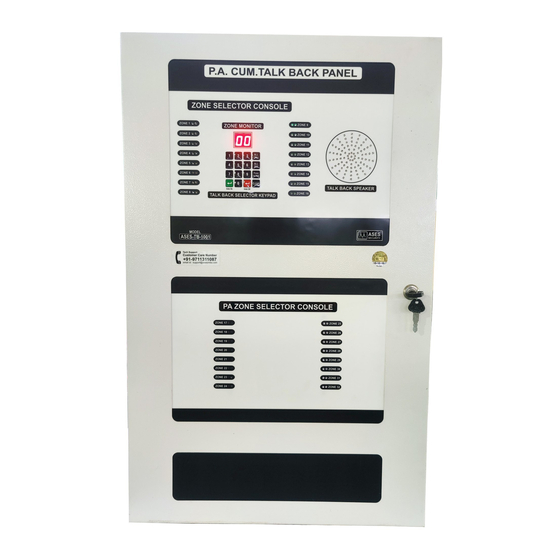

- Page 1 ASES Security Pvt. Ltd. PA CUM TALKBACK Model : PA CUM TALKBACK PANEL (6 to 48 Zones) E.R.T.L., (North) Tested as per IS : 2189/1999 Known for Absolute Reliability... Sold All Over India and Abroad... I N S T R U C T I O N...
- Page 2 e ASES a leading Unit-1 Sahibabad Ind. Area manufacturer of Fire Alarm Systems, Fire Rated Doors, Fire Pump Control Panels, Emergency Lights, PA/VA Systems etc. With a sound infrastructure we manufacture wide range of Control Panels that are used by several institutions.
- Page 3 Hi-Tech superior technologies. ABOUT THE COMPANY We proud to introduce ourselves, as “ASES Security Pvt. Ltd. (Brand name: Agni Suraksha)” a well known name in the field of Fire Alarm System. We are in this field from last 20 years.
-
Page 4: Technical Specification
FEATURES: Modular design, plug in type solid state Ÿ Tested by ERTL as per IS: 2189 Ÿ Expandable up to 2 to 99 zones Ÿ Gooseneck mic attached for call to sub stations Ÿ Zone wise selector switch and all switch facility with Digital Ÿ... -
Page 5: Mechanical Specification
MECHANICAL SPECIFICATION: Housing: MS Sheet Ÿ Colour: Red / White Ÿ Dimension: Customized Ÿ Ÿ MECHANICAL CONSTRUCTION: The enclosure of the Panel is constructed by CRCA sheet with powder coated nish. The20mm knock outs are given for cable entry at the top of the cabinet . The panel also has a built in battery provision to accommodate 2 Nos. -
Page 6: Connection Diagram
CONNECTION DIAGRAM: PA cum Talkback Panel 5th Floor 4th Floor 3rd Floor 2nd Floor 1st Floor PA cum Talk Back Panel BOQ of PA cum Talkback Panel PA cum Talkback Panel Speaker cum Talkback Cable - 1.5 x 2 Core Cable... - Page 7 OPERATING INSTRUCTIONS: Unit 1 Unit 2 Unit 3 Unit 4 Normal Case 24V DC Output in Talkback line 1. Press Unit Switch...
- Page 8 3 24 Volts on the Terminal point in normal case 3 After connecting the unit, press the switch 3 And glow Red LED 3 Selector Switch press after selector Green LED Glow 3 After pressing the selector switch, the sound will be on the panel, when speaking on the unit 1 3 Press talk switch, the sound will be on the unit, when speaking on the MIC 3 Press All Call Switch, And All Green LED Glow...
-
Page 9: Installation And Commissioning
INSTALLATION AND COMMISSIONING: INSTALLATION The installation of the Speaker cum Talkback Unit should comply with: The Institute of Electrical Engineers (IEE) wiring regulation. The Indian Standard of Speaker cum Talkback Unit for building. The installation cable should not be in the area of proximity of high voltage cable or induce electrical interference. - Page 10 COMMISSIONING Check the all entered wiring is correctly identi ed and also check the cables are free from fault conditions by a multi-meter. Connect the external wiring into their respective terminal is placed at the last device of circuit. Prior to the initial power up of the panel, conduct the following preliminary checks: a.
- Page 11 PRECAUTIONS There are some precautions in Installation & Operating the system as below :- All the connection should be done properly. Battery should be connect with the right polarity. Before connection Hooter & Detector wire you should check shorting if there is any shorting in Hooter or Detector line it may harmful to the system.
- Page 12 DO’S & DON’T DO'S: The panel and detectors should be within the temperature range of 0°C to 50°C. We strongly recommends you to check the panel on daily basis and the detectors on weekly basis. Ensure 230+10% voltage input level before switching ON the Panel.
-
Page 13: Warranty Certificate
WARRANTY CERTIFICATE Dear Customer, Your ASES Security Pvt. Ltd., Fire Alarm System is having Warranty against manufacturing defects of parts and components for a period of 12 months from the date of purchase ......(During this period any items found defective will be repaired at ASES works or through ASES service center). - Page 14 32 to 120 Fahrenheit This is certify that PA cum Talk Back Panel supplied as per details has been manufactured by ASES Security Pvt. Ltd. tested as per the provision laid down in IS 2189-1988 and the Electronics Regional Test Laboratory (ERTL).
- Page 15 ASES Security is a registered trademark of ASES Security in India and other countries. © Copyright ASES Security, 2015. All rights reserved. Any unauthorized reproduction or use of logos, design elements is strictly prohibited by law. No part of the compilation may be reproduced in any manner or translated without written permission.
