INTEGRATED
FURNACE CONTROLS
The 50V51-843 has only one serviceable part –an automotive
type fuse, which protects the low voltage transformer from dam-
age if the output is short-circuited. If the fuse has opened up,
remove whatever caused the short circuit and replace the fuse
with only a 3 amp automotive type fuse. If the fuse is not the

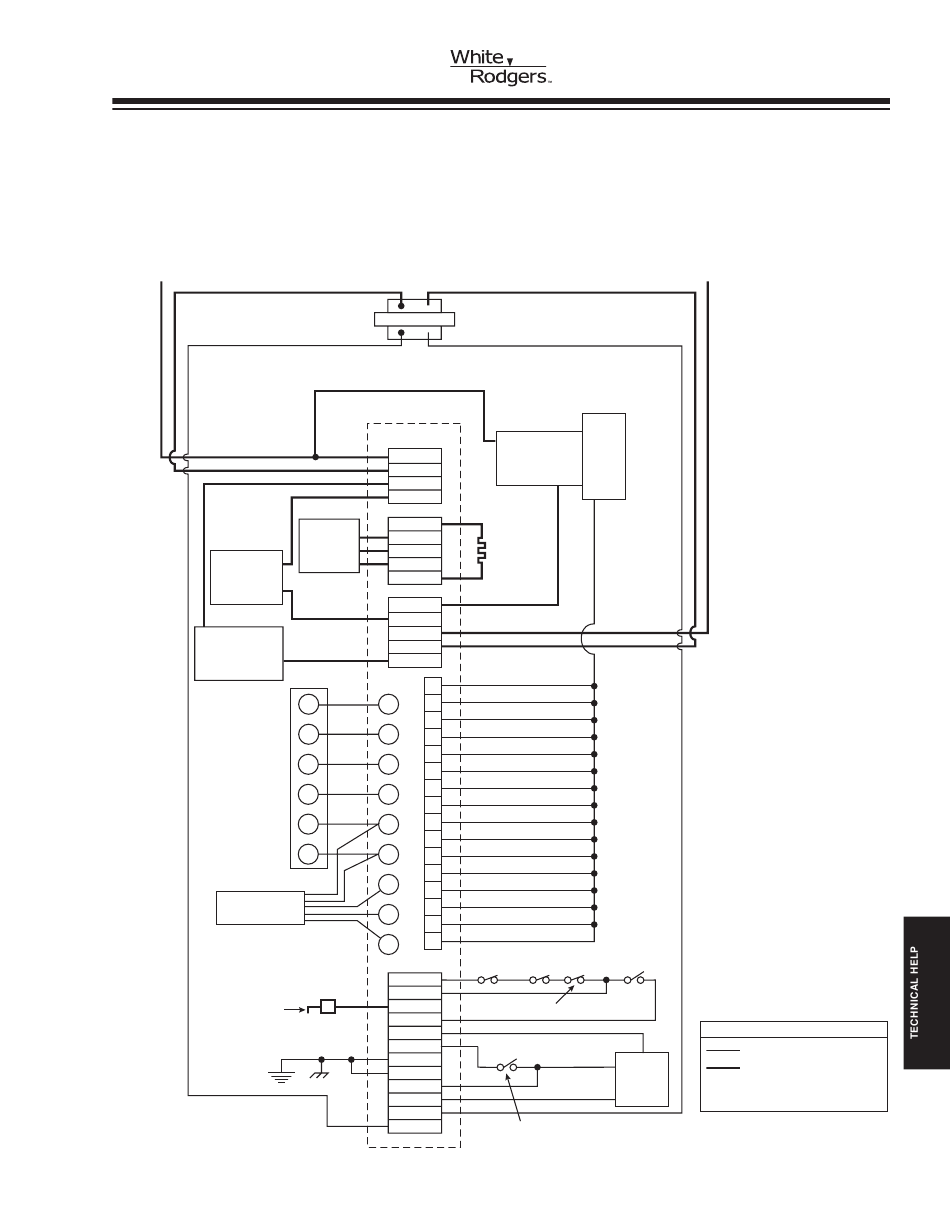

50V51-843 TYPICAL SYSTEM WIRING DIAGRAM
HOT
(LINE)
HUMIDIFIER
(OPTIONAL)
ELECTRONIC
AIR CLEANER
(OPTIONAL)
THERMOSTAT
CONDENSING
UNITS
FLAME
SENSOR
PROBE
120 VAC
24 VAC CLASS II
TRANSFORMER
TH
24 VAC
TR
50V51-843
LINE
XFMR
EAC
HUM
IGN
IND HI
INDUCER
IND LO
IND N
IGN N
CIRC N
HUM N
LINE N
XFMR N
EAC N
R
R
G
G
W2
W2
W1
W1
Y
Y2
Y
YLO
DEHUM
B/C
O
E2
HIGH LIMIT
(N. C.)
HLO
HLI
FP
PS1
MVL
MVH
GND
GND
PS2
MV COM
TR
TH
2ND STAGE PRESSURE
www.white-rodgers.com
21V51U-843 WIRING
AND CONFIGURATION
cause of the control's problem, replace the entire 50V51-843
control. There are no other user serviceable parts.
Following installation or replacement, follow appliance manu-
facturer's recommended installation or service instructions to
insure proper operation.
CIRC.
INTER-
CIRCULATOR
FACE
IGNITOR
1ST STAGE PRESSURE
ROLLOUT
SWITCH (N. O.)
SWITCH (N. C.)
AUX. HIGH
LIMIT (N. C.)
GAS
VALVE
SWITCH (N. O.)
NEUTRAL
(LINE)
LEGEND
Low Voltage (24 VAC)
Line Voltage (120 VAC)
N.C. = Normally closed switch
N.O. = Normally closed switch
183
