Pivot

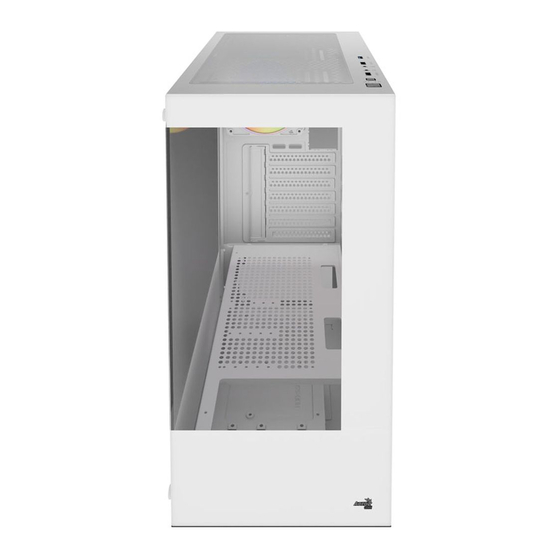

Mid Tower Case
How to Install
(1) Install Motherboard
1
(4a) Install 3.5" HDDx1
A
B
Slide
aerocool.io
(2) Install PSU
Slide
3
Front I/O Cable Connection
Front I/O Connectors
(Please refer to the motherboard's manual for further instructions). Note : Specifications may vary depending on your region.
M/B
F-PANEL
2
(4b) Install 3.5" HDDx1
A
Slide
Accessory Bag Contents
1
Contact your local retailer for more information.
2
3
HD AUDIO
USB
4
5
6
(3) Install Add-on Card
B
3
Slide
x 18 SSD Screw MB Screw
x 6
PSU Screw PCI Screw
x 9
HDD Screw
x 3
MB Standoff
x 5
Cable Tie
x 8 Fan Screw
