TECHNICAL MANUAL
Infrared thermometer (pyrometer)
MS6519A / MS6519B EKF EXPERT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPERT MS6519A and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF EXPERT MS6519A

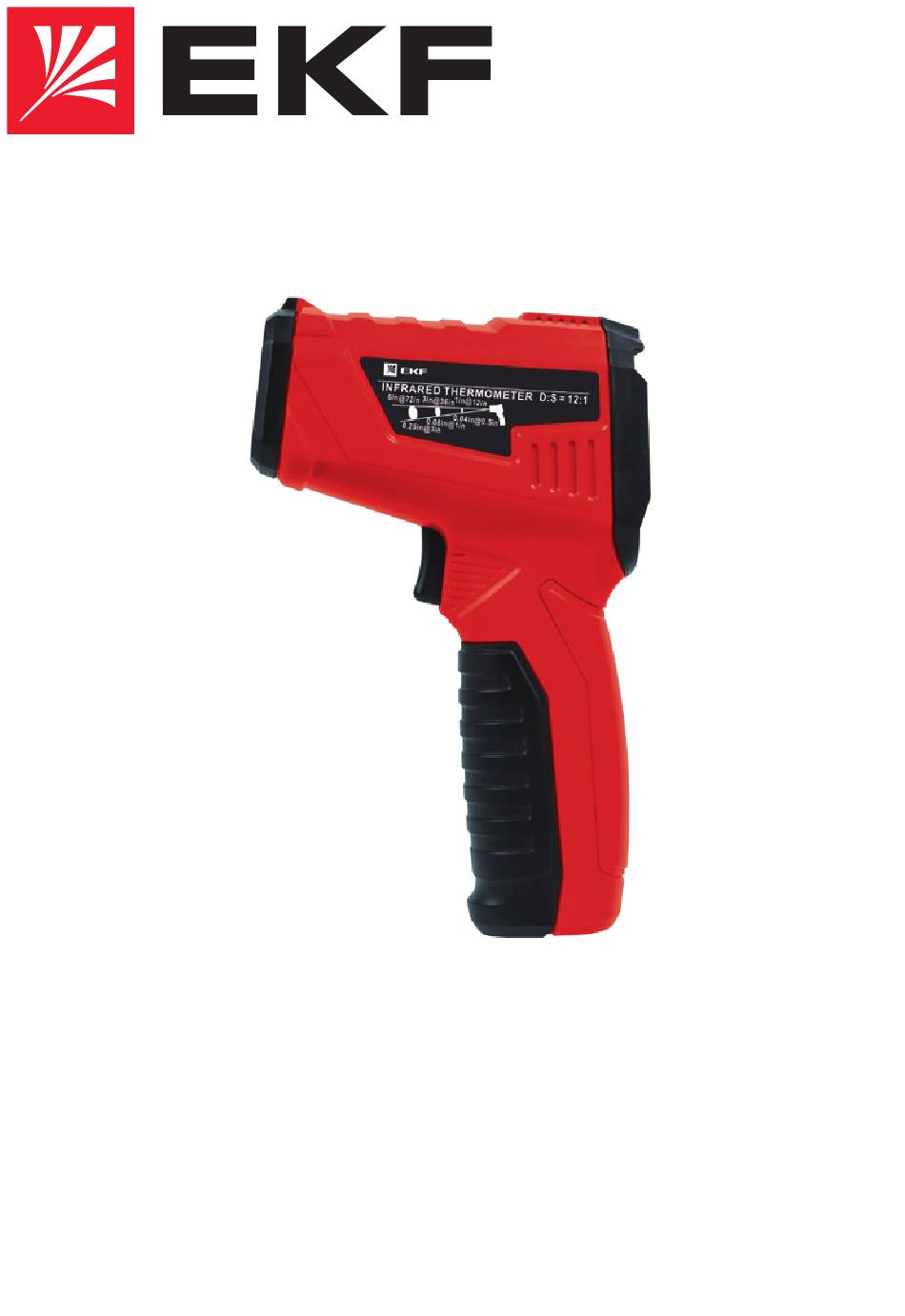

  • Page 1 TECHNICAL MANUAL Infrared thermometer (pyrometer) MS6519A / MS6519B EKF EXPERT...

  • Page 2: Safety Information

    SAFETY INFORMATION Infrared thermometer (pyrometer) MS6519A / MS6519B EKF EXPERT complies with EN61326-1, EN61010-1, and EN60825-1. Please read the instructions herein carefully to ensure safe and efficient operation of the product. SAFETY INSTRUCTIONS: • Read the instructions carefully before operating the device.

  • Page 3: Front Panel Elements

    1 DESCRIPTION The infrared thermometer (pyrometer) MS6519A / MS6519B EKF EXPERT is a mobile in- frared thermometer for non-contact temperature measurement of objects. Surface tem- perature of a target is defined by measuring the infrared emission from the target surface.
  • Page 4 11 10 Figure 2. Display indicators 1. Main indicator: measured temperature value 2. Function indicator 3. Auxiliary indicator 4. ºF symbol (Fahrenheit scale) 5. ºC symbol (Celsius scale) 6. Low battery symbol 7. Laser ON symbol 8. Measuring indication 9. Low alarm symbol 10.

  • Page 5: Technical Data

    3 TECHNICAL DATA Table 2 Model In-180703-pt6519A In-180703-pt6519B Display Color LCD D:S resolution 12:1 Emissivity range 0,10-1,00 Spectral range 8-14 µm Laser Class 2, < 1 mW / 630-670 nm Response time < 0,5 sec Auto power off 30 sec Operating temperature From 0 °С...
  • Page 6 DISTANCE / SPOT SIZE RATIO The thermometer has a specific angle and field of view. Target Lens Light sensor Make sure that the target is larger than the thermometer spot size. There shall be nothing in the field of view but the target. The larger the target, the farther you should place the thermometer for measuring.
  • Page 7 3.2 EMISSIVITY Emissivity is the capability of an object to emit thermal radiation in the infrared range. The higher the emissivity of a material, the greater the emissivity of the object surface. The emissivity of most organic materials ranges within 0,85-0,98. The default setting of the thermometer is 0,95.
  • Page 8 Table 2 continued Material Emissivity Platinum black cold-rolled sheet 0,7-0,9 Steel non-polished sheet 0,4-0,6 polished sheet Zinc oxidized Asbestos 0,95 Asphalt 0,95 Basalt Coal 0,8-0,9 Graphite Silicon carbide 0,95 Ceramics 0,95 Clay 0,95 Concrete 0,95 Cloth 0,95 Glass sheet 0,85 Sand-gravel ground 0,95 Gypsum...

  • Page 9: Backlight On/Off

    4 MEASUREMENTS SETTING OF THE UPPER ALARM LIMIT Press and hold the «MODE» button for 2 seconds to enter the device setting, and press the «MODE» button to set the upper alarm limit. «Hi» is indicated in the function display, and the upper limit value is indicated in the auxiliary display.

  • Page 10: Battery Replacement

    NON-CONTACT TEMPERATURE MEASUREMENT Point the thermometer at the target, press and hold the start button to measure the temperature continuously. After the value on the display stabilizes, release the button to record the measurement result. When the start button is pressed, the auxiliary display first shows the set emissivity and then the maximum measured temperature.

  • Page 11: Transportation And Storage

    Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia.

  • Page 12: Certificate Of Acceptance

    9 CERTIFICATE OF ACCEPTANCE The infrared thermometer (pyrometer) MS6519A / MS6519B EKF EXPERT has been man- ufactured in compliance with laws and regulations in force and has been approved for op- eration. Quality control stamp Date of manufacture: For information, refer to the product package.

This manual is also suitable for:

Expert ms6519b
