Redline Engineering RE-PTL Manual

Power train lift
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
R E - P T L
M A N U A L
P O W E R
T R A I N
L I F T

Advertisement

loading
Need help?

Need help?

Do you have a question about the RE-PTL and is the answer not in the manual?

Questions and answers

Related Manuals for Redline Engineering RE-PTL

Summary of Contents for Redline Engineering RE-PTL

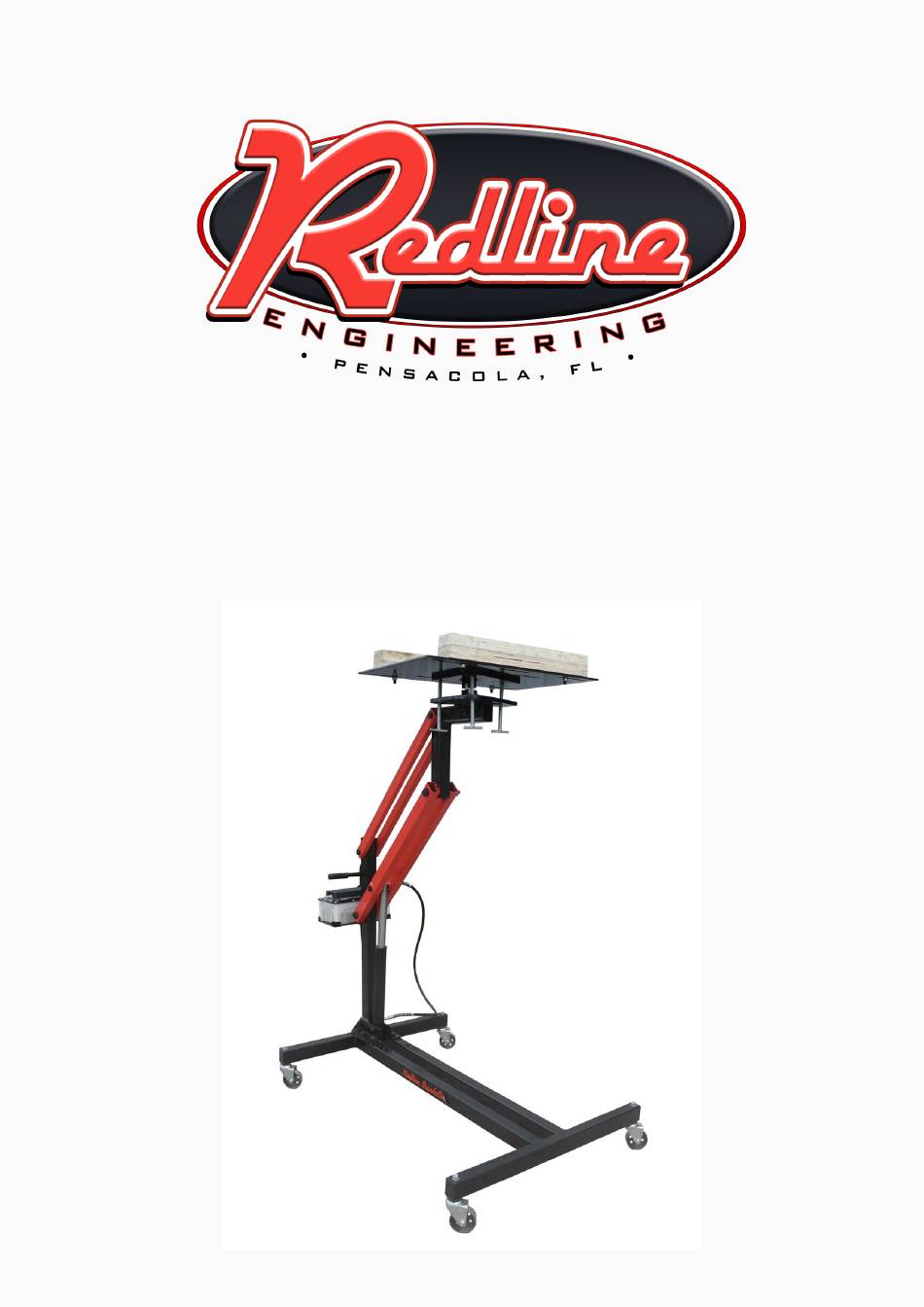

  • Page 1 R E - P T L M A N U A L P O W E R T R A I N L I F T...
  • Page 2 C O N T E N T S M16x100 M16x110 M16x130 M16x165 M12x88 Socket cap 4...
  • Page 3 Begin by attaching the vertical stand to the base using the 6xM16X110mm bolts. At the base of the vertical install the cylinder using M16X100mm bolt.
  • Page 4 Install the lower arms using a M20 bolt. (Note lower arms have 3 holes.) Install the pump shelf on the lower holes using 2 silver M10 bolts. Thread the included hydraulic fitting to the pump.
  • Page 5 Place the pump on the shelf. Connect the cylinder. Connect the cylinder to the lower arms using the M16X165mm bolt. Install the handle with the last 2 silver M10 bolts.
  • Page 6 Install upper arms with the last M20 bolt. Connect main lift arm using 2xM16X130 bolts. Install pivot plate using the M12X88MM . Then install the 3 adjustment screws to level head.
  • Page 7 Attach the lift plate to the level head using the 2 silver flat screws. Add the blocks to the top Using the 4 socket cap bolts.
  • Page 8 Finished W W W . R E D L I N E S T A N D S . C O M...
