Tubbutec OrganDonor Installation Manual

Universal midi interface for korg polyphonic ensemble pe-2000
Hide thumbs Also See for OrganDonor:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

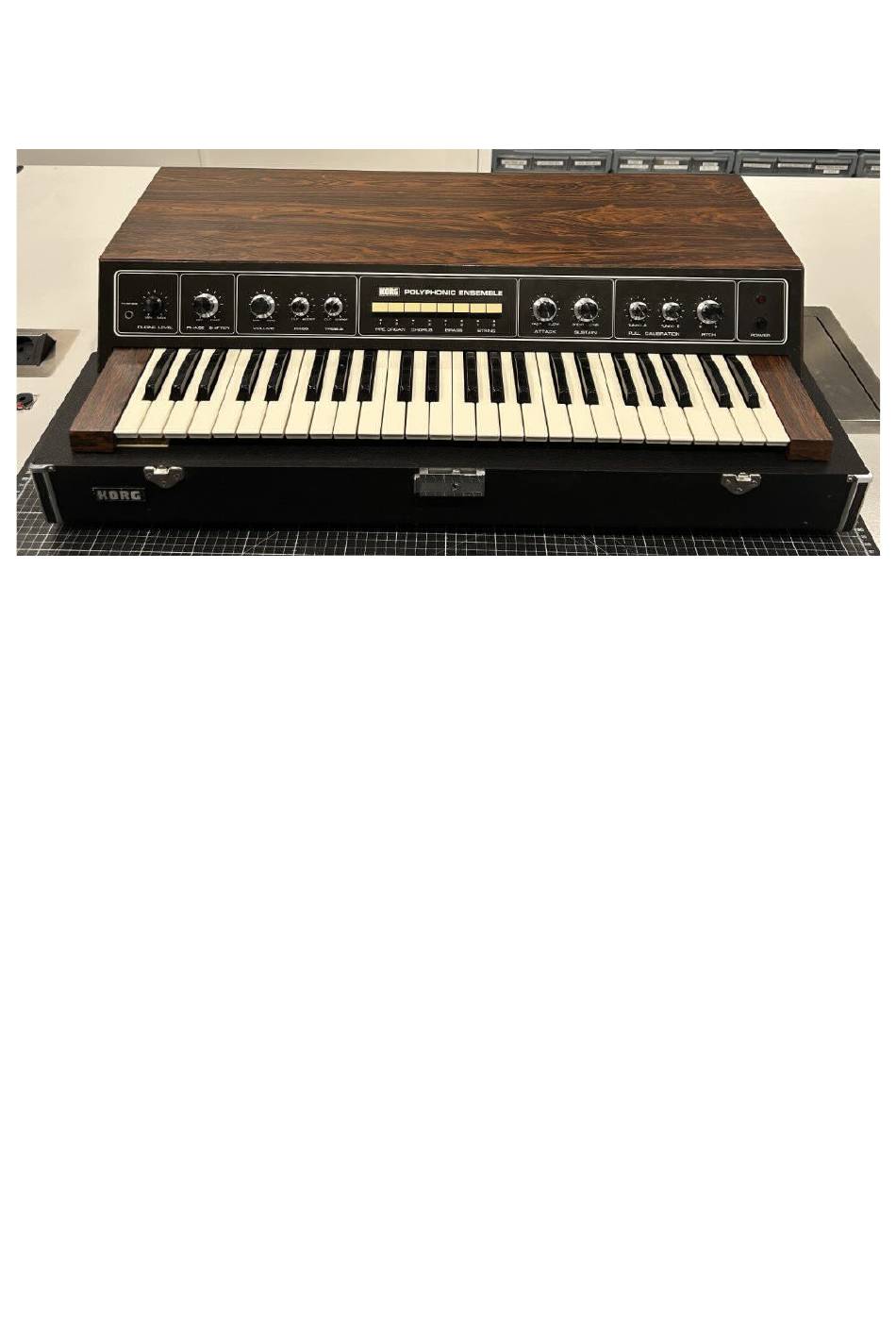

Installation manual for Korg Polyphonic Ensemble PE-2000
Tools you will need:
• Soldering iron
• Wire stripper
• Metal drill 3.5mm (or similar)
• Metal drill for a 15mm hole (stepping drill for example)
• Center punch
• Screw driver
Included in the kit:
• OrganDonor Main Board
• 3x organ Donor Switch Board, 2x16pin connector, 1x20 pin
connector
• Analog switch connection: 1x20 – 40cm, 1x16 – 40cm, 1x16 -
55cm
• Interconnect cables: 1x 35cm, 2x10cm
• Midi connector assembly
• Power connector
• Learn button
• 13x screw 6.5mm
• Midi socket drill guide
• 2x M3 bolt, 2xM3 nut for midi socket
Tubbutec OrganDonor

Advertisement

loading
Need help?

Need help?

Do you have a question about the OrganDonor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tubbutec OrganDonor

Summary of Contents for Tubbutec OrganDonor

  • Page 1 • Metal drill for a 15mm hole (stepping drill for example) • Center punch • Screw driver Included in the kit: • OrganDonor Main Board • 3x organ Donor Switch Board, 2x16pin connector, 1x20 pin connector • Analog switch connection: 1x20 – 40cm, 1x16 – 40cm, 1x16 - 55cm •...

  • Page 2: Principle Of Operation

    OrganDonor uses analog switches to simulate keyboard presses directly. Normally this would require to solder two wires for each key. Luckily this can often be avoided by grouping common signals. OrganDonor features solder jumpers to connect common signals on the back of each analog switch board.

  • Page 3: Installation

    Installation First place the main board and the 3 switch boards inside the synthesizer case, see Figure 1. The main board gets placed to the left of jack panel, the 3 switch boards to the bottom of the case. Use the 2,9x6,5 screws for this. Then connect the main board and the switch boards with the 10-pole ribbon interconnection wires.

  • Page 4: Power Connection

    Power connection Connect the supplied wire assembly for the power connection to the main board. Connect V+ (red wire) to the point marked with a yellow circle in Figure 2. Connect Gnd and V- (black and yellow wires) to the point marked with a turquoise circle in Figure 2 (attention: both get connected to the black ground wires on the power supply pcb).
  • Page 5 Installing the key connections Cut the ribbon cables to length and strip the wires. Switch board 1: Figure 3: Common bus and key contacts The first wire of the 20 wire ribbon cable gets soldered to the first common contact of the keyboard, see red circle in Figure 3. Take care not to desolder the internal red bus connection wire.
  • Page 6 Switch board 2: Wires 1–16 get soldered to key contacts 17–32. Switch board 3: Wires 1-16 get soldered to key contacts 33- 48. Installing the midi socket You can either drill a hole in the back of the PE-2000 and install a Midi socket, or you can remove the Traveller Control jack, but leave all the connections intact.
  • Page 7 Wires are not included in the kit. Press the learn button and while it is pressed send a midi note on any midi channel. OrganDonor will use this midi channel from now. These settings are saved.
