Summary of Contents for Major tech MT300

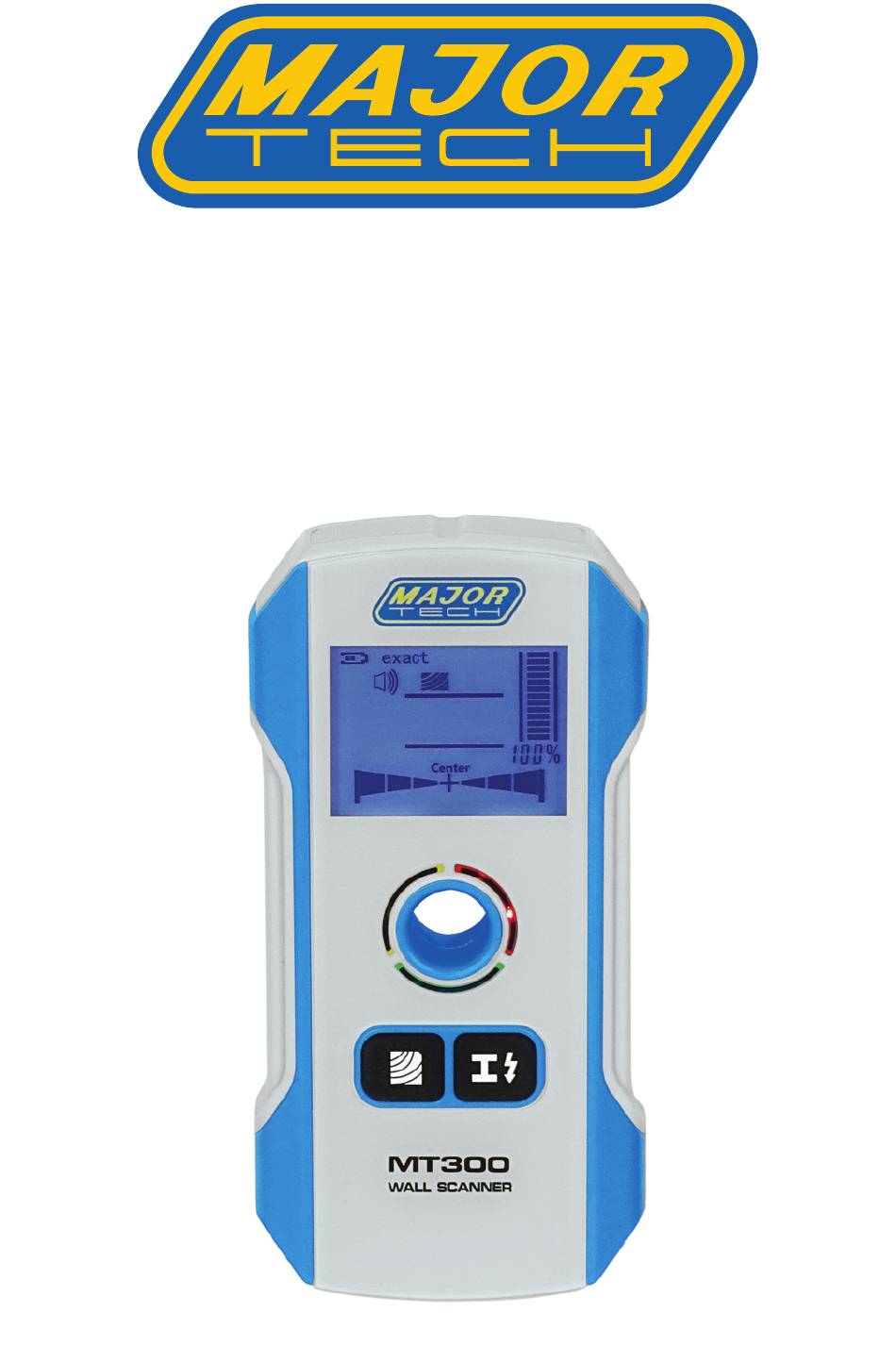

- Page 1 INSTRUCTION MANUAL MT300 MULTIFUNCTION WALL SCANNER...
-
Page 3: Table Of Contents
Contents Page no 1. Safety Warning................4 2. Product Overview ................4 2.1. Function Introduction ..............4 2.2. Key Function ................4 2.3. Interface Analysis ..............5 3. Precautions ..................5 4. Detection Types and Use ..............6 4.1. Detection of metal Objects (Rebar, Wires, Copper Pipes) ....6 4.1.1. -
Page 4: Safety Warning
• When there is any quality problem with the instrument or when there is a question about using the instrument. You can contact Major Tech online customer service. We will solve it for you as soon as possible 2. -
Page 5: Interface Analysis
2.3. Interface Analysis A - Precise mode in "Foreign Object Detection" mode (The maximum detection depth is 20mm in Precise mode) B - Arranged in order as alternating current, foreign objects (generally refers to wooden stalls) and metal C - Depth mode in Foreign Object Detection mode (The maximum detection depth in depth mode is 38mm) D - Magnetic/Nonmagnetic Icon E - Battery percentage... -
Page 6: Detection Types And Use
Ÿ Using or operating transmitting equipment such as microwave ovens near the detector can affect the detection results Ÿ In the detection and use of the equipment, the detection results will be affected by the surrounding environmental factors to some extent. Ÿ... -
Page 7: Detection Note
When the instrument is slowly moving away from the object, the scale on the signal strength display area of the display will gradually decrease. At the same time, the intensity percentage will gradually decrease. When the program determines that the signal received by the instrument reaches the maximum. -
Page 8: Operation Introduction
The foreign object detection mode actually detects more than just wood materials. It can also detect metals and other dense materials. For example: water-filled pipes and plastic pipes near the back of a wall or ceiling surface. To help identify wood materials, a metal scan is first performed and the location of any detected metal items is marked. -
Page 9: Detection Of Live Cables
Operation Tips The position will be more accurate after repeated detection. When a foreign object is detected and an alternating current is detected. The AC symbol on the instrument will flash. The instrument will make a short repetitive beep. In "Foreign Object Detection" mode. When only alternating current is detected. - Page 10 display will gradually increase and the strength percentage will gradually increase. As the instrument moves away from the live cable, the scale will slowly decrease again and the intensity percentage will gradually decrease. When the program determines that the signal received by the instrument reaches the maximum, it means that the live cable is located just below the center of the detector.
-
Page 11: Instrument Maintenance
5. INSTRUMENT MAINTENANCE Use a dry, soft cloth to wipe dirt off the instrument. Don’t use detergents or solvents. Before the detector is prohibited. Put any labels or nameplates on the detection area on the back two sides. Please do not stick on any metal nameplates. Please use the included protective case to store and carry the detector Please recycle and reuse damaged detectors, accessories and packaging materials in an environmentally friendly manner. - Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
