Plikc ARIO W 90 Manual

®
ARIO W 90-100-120-150
1. Description
The ARIO W is a wall-mounted extractor fan featuring timer and humidity sensor
functions, fully controllable via the Plikc Smart app on your smartphone. Its
antistatic finish protects against dust and dirt, while its selectable multicolored
LED provides a useful reference point for your environment. The precise
humidity sensor makes it suitable for various locations: basements, attics,
cellars, windowless bathrooms, and other places where humidity and poor air
circulation are issues. The ARIO W will activate the fan to expel excess humidity
whenever it exceeds the user-set threshold via the smartphone. Alternatively,
you can program a timer for a careful and constant air exchange tailored to the
environment's needs where the ARIO W is installed.

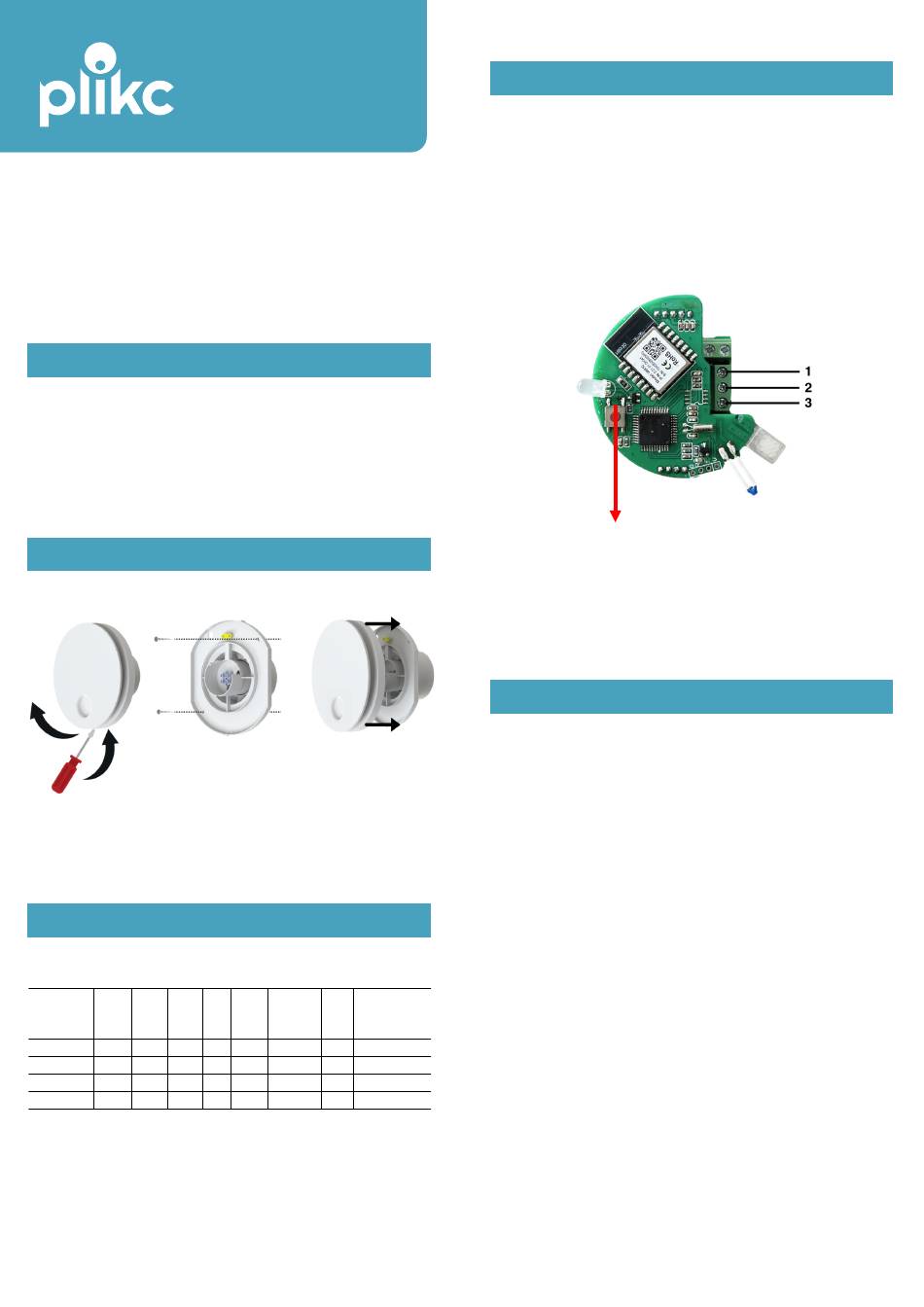

2. Installazione
FIG.1
FIG.1 - Remove the grille from the motor housing.
FIG.2 - Fix the motor/fan unit to the wall using the provided screws at the
exhaust hole. Make the electrical connection as indicated later.
FIG.3 - Reattach the grille to the motor housing.
3. Technical Data
MOD. HOLE WATT VOLT
ARIO W 90 90 15 240
ARIO W 100 100 15 240
ARIO W 120 120 15 240
ARIO W 150 150 15 240
FIG. 2 FIG.3
m3/ mm. PRESS. db a PROTECTION
H H2O PA 3mt. GRADE
90 3 30 36 IPX4
100 4 39 36 IPX4
140 5 49 38 IPX4
160 5 49 38 IPX4
4. Electrical Connections
• Connector 1: Power input 230Vac - Phase
• Connector 2: Timer Trigger Input - from 230V switch (e.g., room light)
• Connector 3: Power input 230Vac - Neutral
Connect the 220/230V power supply to terminals 1 and 3 (if possible,
connect the phase to terminal 1 and the neutral to terminal 3).
**APP ASSOCIATION BUTTON** - PRESS AND HOLD (WITH A
POINTED TOOL) UNTIL THE LED BEGINS TO FLASH RAPIDLY,
THEN PROCEED WITH ACCOUNT CREATION AND ASSOCIATION
AS DESCRIBED BELOW.
5. Creating a Plikc Smart Account
Scan the QR code on the extractor fan box and download the app for Android
or iOS devices or type "plikc" in the app store search field.
Through the Plikc Smart application, you can fully manage the ARIO W and all
other Plikc wifi devices.
Note: The association is via Bluetooth, so activate this function on your
smartphone before proceeding. The extractor fan uses a Dual-Band Wifi chip,
allowing it to be associated with both 2.4GHz and 5GHz Wifi networks.
