Operating Instructions
Shearwater Teric - Avelo Mode
1
DOC. 10072-RevA (2024-06-17)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVELO MODE and is the answer not in the manual?

Questions and answers

Related Manuals for Shearwater AVELO MODE

Summary of Contents for Shearwater AVELO MODE

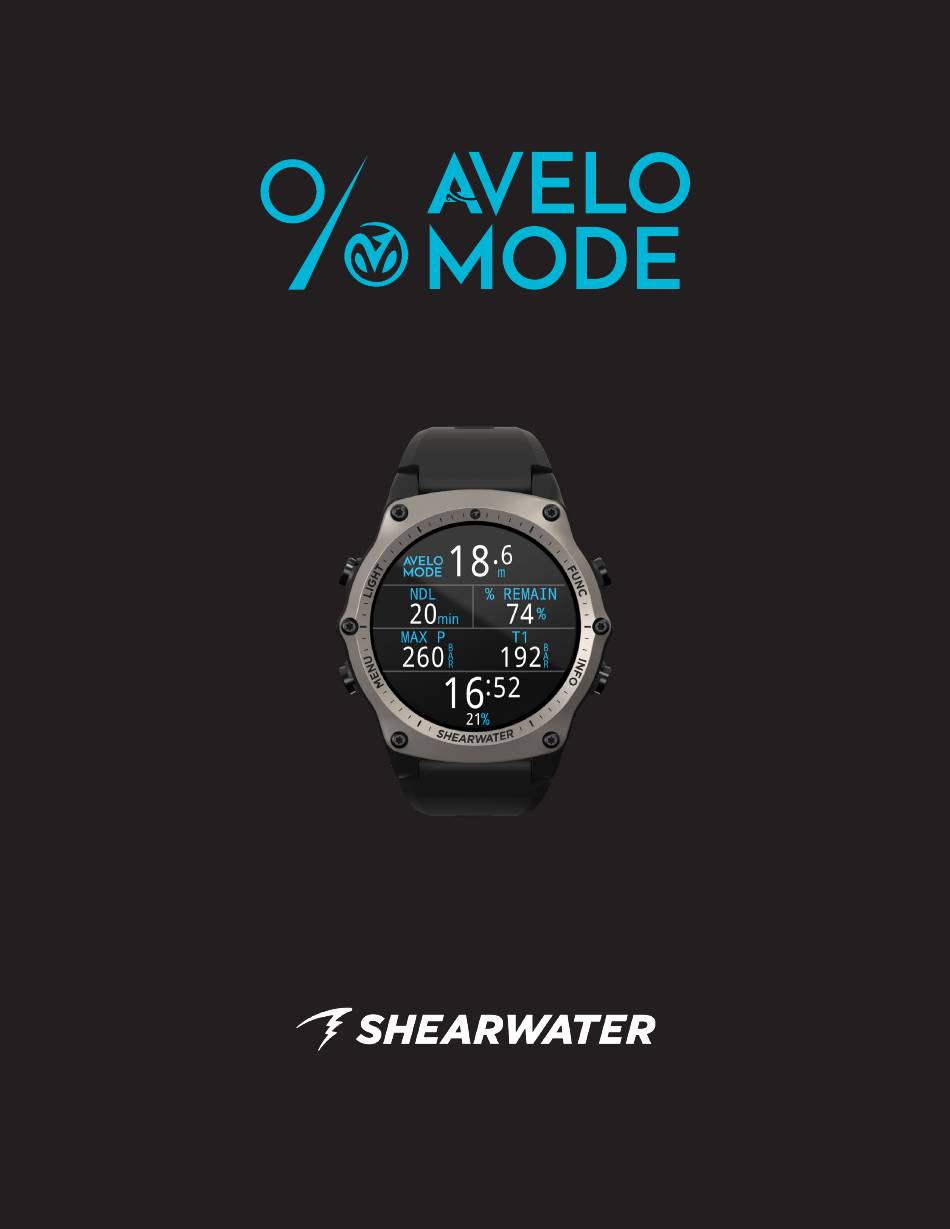

  • Page 1 Operating Instructions Shearwater Teric - Avelo Mode DOC. 10072-RevA (2024-06-17)
  • Page 2 YOU REALLY ARE RISKING YOUR LIFE WITH THIS ACTIVITY. W ARNING Shearwater computers have bugs. Although we haven’t found them all yet, they are there. It is certain that there are things that our computers do that either we didn’t think about, or planned for them to do something different.
  • Page 3 Visit www.diveavelo.com for details. The Shearwater Avelo mode is an extension of the Air Integration system found on the Teric dive computer. You must read and understand all the information and warnings in the Teric’s operating instructions prior to using the Avelo dive mode.

  • Page 4: Conventions Used In This Manual

    Warning boxes contain critical information that may affect your personal safety. Notes on this Manual This manual only covers the features of the Avelo mode system. Unless otherwise noted, all features behave as they do in other dive modes as described in the Teric Operating Instructions Manual.
  • Page 5 Introduction When diving Avelo, Shearwater’s Avelo mode makes gas planning easier and gives you more dive time than using an analog SPG. When using the Avelo system a diver cannot use cylinder pressure directly as a measure of remaining gas. The Shearwater Avelo mode makes diving the system simple by displaying remaining gas as a percentage.
  • Page 6 Unlike other dive modes on the Teric, Avelo Mode only supports the “Standard”, 4-line layout. The 3-line “Big” layout is not supported. In Avelo mode, the % Remain field in the top right position cannot be removed. However, the info row home screen can be customized. See page 13 for more information.
  • Page 7 Detailed Avelo Element Descriptions There are several screen elements that are unique to Avelo Mode. This section will go into detail about how each element works. % Remain % REMAIN The breathing gas (air) remaining as a percentage. Max P...
  • Page 8 Avelo|10L The currently selected Hydrotank size is shown in the top level settings menu for convenience. Shearwater Teric - Avelo Mode DOC. 10072-RevA (2024-06-17)
  • Page 9 The diver must turn on their computer and place it in dive mode at least two minutes before entering the water for Avelo mode functions to operate correctly. If you rely on the auto-on feature to put the computer in dive mode when a dive starts, you may miss a pre-dive pump event or the max pressure.
  • Page 10 For instructions on setting up the home screen, see page 13. By default, the Avelo Mode home screen is set to Training. From the home screen, scroll through the info screens by pressing the INFO (bottom right) button.
  • Page 11 SURFACE GF99 35/75 SURFACE TISSUES SURFACE Press the INFO button (bottom TEMP BATTERY right), to step through Info �C Screens SURFACE mBar NOW mBar SURF 2564 1013 SURFACE TIME 2:31 2:43 SURFACE Shearwater Teric - Avelo Mode DOC. 10072-RevA (2024-06-17)
  • Page 12 Once you have an unlock code for your Teric, the Shearwater Cloud app can be used to unlock Avelo mode on your dive computer. Connect your dive computer to Shearwater Cloud and select “Unlock”...
  • Page 13 All Avelo mode settings must be configured before the dive as the following menus are not available underwater. Selecting Avelo Mode Once Avelo Mode is unlocked, it can be selected in Settings by going to Settings > Dive > Dive Mode and selecting Avelo. Settings...
  • Page 14 No Action End Dive Delay and Log Rate Unlike in other modes, the End Dive Delay and Log Rate Settings cannot be modified in Avelo mode. End Dive Delay is fixed at 5 minutes. Log Rate is fixed at 5 seconds.
  • Page 15 Avelo Setup Menu Settings In Avelo Mode, the AI menu is replaced by an Avelo Setup Dive|Avelo menu. The top-level settings menu shows the currently selected Hydrotank size in grey for quick reference. Avelo|10L Deco|40/85 Hydrotank Size Selection The two options are 10L and 8L. It’s important to select the correct Hydro tank size for the Work display element to be accurate.
  • Page 16 Added weight: Extra weight added to the system in kg or lbs. Tidal Volume: Tidal volume of the diver’s lungs in ml. Refer to the Avelo training materials for detailed explanations of how to calculate exposure suit buoyancy and tidal volume. Shearwater Teric - Avelo Mode DOC. 10072-RevA (2024-06-17)
  • Page 17 Is Avelo mode available on Shearwater computers other than the Teric? Avelo mode is currently only available on the Teric dive computer. We hope to bring the Avelo mode option to other computers in the future. Does GTR behave the same as it normally would? Yes.
  • Page 18 Shearwater Research Inc. Headquarters 10200 Shellbridge Way, Richmond, BC V6X 2W7 Tel: +1.604.669.9958 info@shearwater.com www.shearwater.com www.facebook.com/DiveShearwater www.youtube.com/shearwaterresearch Shearwater Teric - Avelo Mode DOC. 10072-RevA (2024-06-17)
