Summary of Contents for Tedsen SKX-WEB

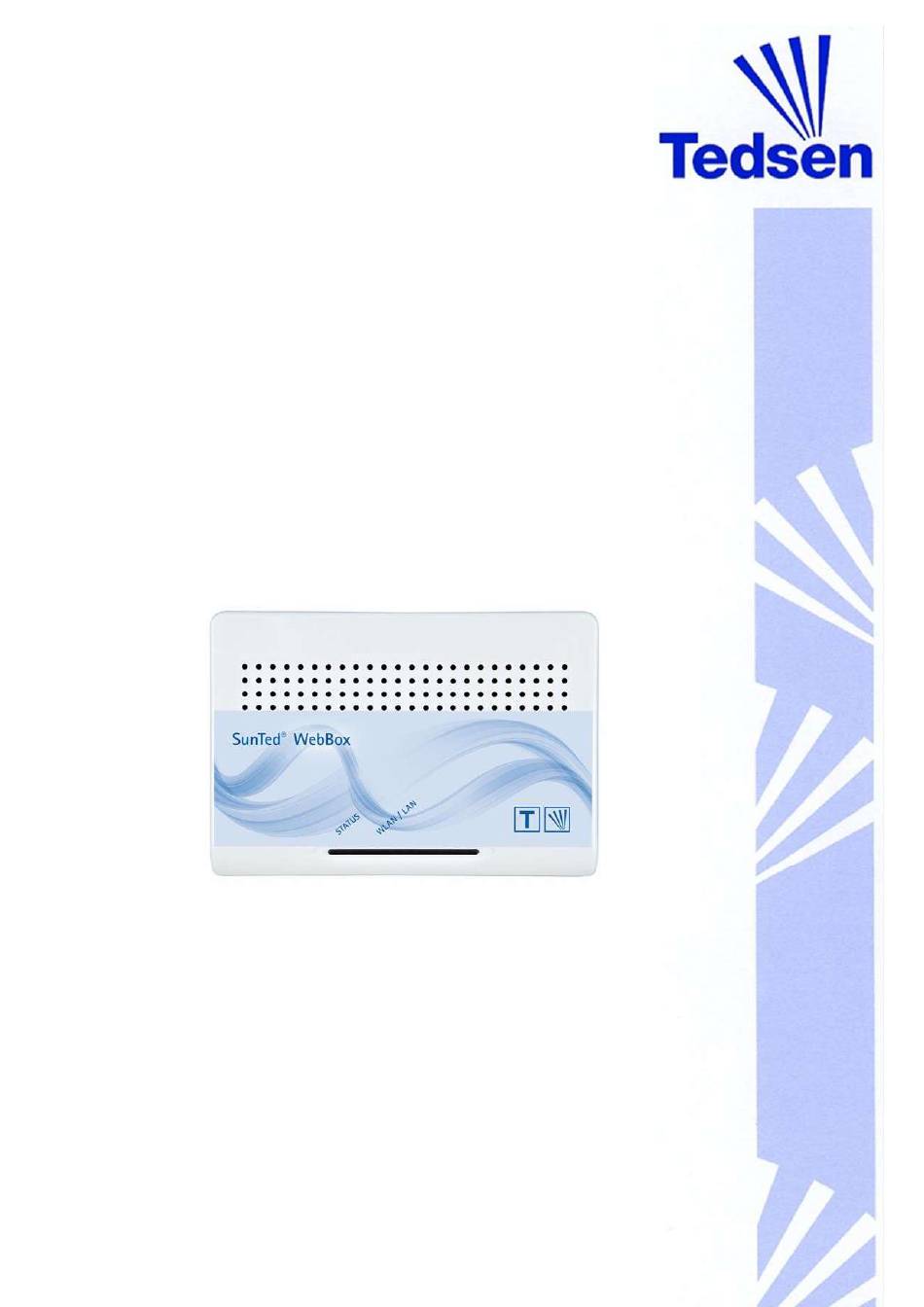

Page 1 SKX-WEB manual...
Page 2 Commissioning Congratulations on the purchase of your SunTed WebBox. On the following pages you will find detailed instructions on how to set up and operate your SunTed WebBox. You don't like to read and want to get started quickly? Then proceed as follows •...
Page 3 Connecting to your SUNTED WEBBOX Access to your SunTed WebBox is via a Web browser. We prefer to use Google Chrome or Mozilla Firefox. • Connecting with a network cable • Connect your SunTed WebBox to your Router via a Network cable. •...
Page 4 for this in your browser search window the term "LAN Scanner", as these programmes change very quickly we cannot give you a preference for this. If your computer is in the same network as your SunTed WebBox, you can find its assigned IP address using the URL-LINK below;...
Page 5 automatically with the Wi-Fi network, if everything went well, the LED will light solid "BLUE" on your WebBox. You should keep the Wi-Fi distance between your Router and your WebBox as small as possible, as the WLAN adaptor provided has a small range, if this distance is too large you may experience connection problems between your Router and the SunTed WebBox.
Page 6: Creating Folders
Administrator This chapter shows you how to manage your WebBox. When you first start the SunTed WebBox, you will be asked to select the WebBox interface language you want to use (make a choice English or German). You also need to create a password to log in as an administrator. After this step has been completed, you can create folders and devices in the administration section of the left menu, click on (Geräte/Devices) you can now create folders (Ordner/Folders) to organise your project clearly.
Page 7 Devices Select a folder and or sub-folder from the left-hand menu. Click on new device (Neues Gerät/New Device). • In the new opening window • Select the device type (Typ/Type) • Enter your device name in the (Gerätename/Item name) field •...
Page 8: Light Switch
The option device active (Gerät aktiv/Device enabled) is already ticked, which means that the relevant device is shown in the user menu. If you do not want to use the device temporarily, you can deselect it here. The following choice of device types are available: •...
Page 9 With a universal device, you choose the number of buttons. For each button, you can select a symbol from a list of symbols here. There are icons that represent opening or closing a garage door or opening and closing a garden gate, for example.
Page 10 NL.594.00.00.00...
Page 11: Sensor Status
Sensors A sensor is a device that can transmit certain weather-dependent commands, the equipment in your home can be configured so that at certain sensor code (e.g. when there is too much wind) the drop-down shutters will be retracted, etc. The creation of a sensor allows the administrator to test the sensor transmission code etc.
Page 12 NL.594.00.00.00...
Page 13 MANAGE SCENARIOS Multiple devices in a group can be summarised in a scenario. You can then control all included devices at (almost) the same time or even time-shifted by pressing a single button. For example: switch on all the lights in one room. A scenario can include breaks.
Page 14: User Management
User management • Administrator An administrator can change all settings, such as create folders and devices or import and export backups. Also, just like a normal user, he can control all devices. When you access your SunTed WebBox for the first time via your web browser, you will be asked to assign an administrator password.
Page 15: Set Date And Time Manually
After some years, the battery, a button cell, runs out of power. If this happens, make sure you reset the time if necessary after starting the system. Set date and time manually To enter date and time manually, proceed as follows: •...
Page 16: Network Settings
NETWORK SETTINGS The SunTed WebBox can be connected to your router via a network cable or via Wi- Fi. We recommend using a network cable, as this connection is generally more stable as a Wi-Fi connection. The network configuration for the network is obtained automatically via DHCP from your router.
Page 17: Static Ip Address
Static IP address When you press save, your box will start with the new settings. Wait until the LED lights up green and enter the new IP address in your browser's address bar. In our example, this would http://192.168.0.50. This is where you can then reach your box.
Page 18 Konfiguration Here you can set whether you want to manually set DHCP the network settings such as IP address, router, subnet mask as described under point "LAN" or not. Setting up via WPS WPS is a procedure in which the Wi-Fi password stored on your router is transmitted to a device on the local network.
Page 19 If you enable remote access, the following happens: Your system generates a random string such as e.g. "640ea921-d0a2-4cab- 8f6f- 167518a764de". Your box connects to the SunTed WebBox server and says, here is box no. "640ea921- d0a2-4cab-8f6f-167518a764de". If you log into the box via iPhone or Android App with Internet access via the app, the box says to the iPhone: I am box no "640ea921-d0a2-4cab-8f6f- 167518a764de".
Page 20 the names of the devices, e.g. "maximum" or "blind 3 north side" All data are encrypted via SSL Assign new box ID If you want all phones that have accessed your box to no longer have access, before they have logged in to the local network again, you can have a new box ID assigned. Then the character string that uniquely identifies your box, in the above example "640ea921-d0a2-4cab- 8f6f-167518a764de", will be re-assigned.
Page 21: Reset To Factory Settings
click on "Datei auswählen", select the previously created backup and press "Import backup" When you have imported a backup, the time zone set on your SunTed WebBox is reset to the time zone included in the backup. This ensures, that every switching time for scenarios are executed at the right time.
Page 22: Delete Database
Please download the backup only after you have installed an update. Otherwise, the box may no longer start, due to a database that is only compatible with a newer version, the users' tokens must be recreated and sent if you have restored a backup. Delete database Sometimes it may be desirable to delete the entire database.
Page 23 MEANING OF THE LIGHT EMITTING DIODES The SunTed WebBox has two light-emitting diodes, hereafter referred to as "LEDs" for short. green (short) • received radio signal • transmit radio signal blue (short) Right-hand LED violet flashing • System reinstalled white flashing •...
Page 24 Operation and button colour responses You can control your equipment via the web interface or via the app for Android or iPhone. For that control, you can be logged in as a normal user. You do not need to have administrator authorisation. Click on the link above on the left. This can be named as "Home"...
Page 25: Creating Users
Creating users To create users (Benutzer/Users) and give an authorisation over a certain area of the Webbox, you can authorise one or several folders (Ordner/Folder) for a user. First create a new user by clicking on (Benutzer/Users) in the left-hand selection menu a new window opens (Benutzerverwaltung/User Administration) click on new user (Neuer Benutzer/new user) fill in the required user name in his Email address and choose whether this user may also act as Manager, in which case a password is...
Page 26: User Authentication
User authentication To now autherise the user for a particular area of the Webbox, return to the menu item (Geräte/Devices) you make a selection of the folder this user is allowed to control, click on it after which the (Geräte/Devices) folder opens. Click on the tab (Zugriffrechte/Access authorisation) and make a selection in the user list (verfügbare Benutzer/Available users) and move it by means of the arrows to the field (Ausgewählte Benutzer/Selected users) the users who are placed here...
Page 27: App Connection
App connection When you are successfully connected to the box, the first tab shows your folders and devices, which you can simply control, as in the web app. Favourites Devices you use often can be marked as "favourites". Favourites are displayed in the middle tab.
Page 28: Help And Support
(leave the tick unchecked) the radio signal is sent via the master Webbox. Help and support You can always contact us by phone for technical support, in most cases we can assist you via Teamview. Tedsen Teletaster Benelux BV Vrijthof 23 6211 LE Maastricht +31 (0)43 3263684 url: www.tedsen.com...
