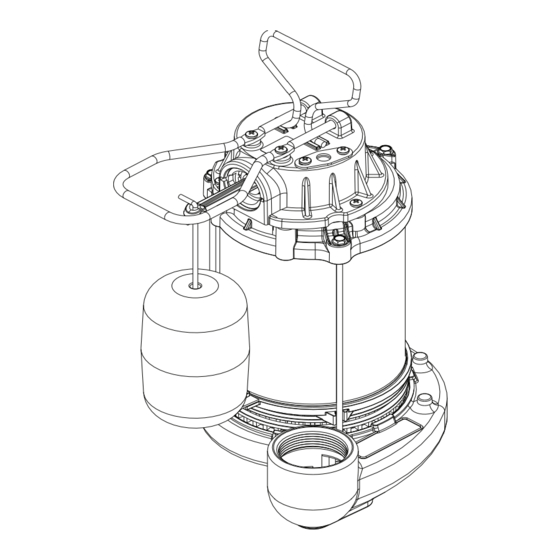

- Page 1 User Manual of Product 1: Wayne 58321-WYN3 CDU980E 3/4 HP Submersible Cast Iron and Stainless Steel Sump Pump with Integrated Vertical Float Switch, Large, Silver...
-
Page 2: Specifications
4300 3900 3360 2700 1260 SPF33 3750 3300 2718 1920 WST33 3000 2610 2130 1404 *Images are for illustration purposes only. Not all models are shown. Intended for Indoor Use Only © 2020, WAYNE/Scott Fetzer Company www.waynepumps.com 600002W-001 E 03/20... -
Page 3: Safety Signal Words
INSTALLATION MANUAL SUMP PUMP DESCRIPTION Sump pumps are automatic pumps used to remove ground water from sump pits. The most common application is for This pump is not designed to handle salt water, brine, laundry basement drainage to prevent flooding in residential buildings. discharge, water softener, sewage, grey water, or any other These sumps are designed to pump clear water only. - Page 4 INSTALLATION MANUAL NEVER HANDLE A PUMP or motor with wet hands or when standing on a wet or damp floor while the pump is plugged into the power supply. CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION NE JAMAIS MANIPULER UNE POMPE ou un moteur de pompe avec les mains mouillées ou debout dans l’eau ou sur une surface WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR humide.
- Page 5 INSTALLATION MANUAL TYPICAL SUMP INSTALLATION DIAGRAMS DO NOT USE THIS PUMP IN MUD, SAND, CEMENT, OIL CHEMICALS, GREY WATER, OR ANY OTHER WATER THAT IS NOT CLEAR GROUND WATER. Tether Submersible Sump NE PAS UTILISER CETTE POMPE DANS LA BOUE, LE SABLE, LE CIMENT, LES PRODUITS CHIMIQUES À...
-
Page 6: Power Cord
INSTALLATION MANUAL 6. Install discharge plumbing according to local, regional and Vertical Submersible Sump state codes. Rigid PVC pipe is required. Do not use flex hosing in a permanent application. 7. Install a check valve (required) to prevent back-flow. The Wayne check valve (62061-WYN1) may be positioned just above the basin to allow easy removal of the pump for cleaning and service. -
Page 7: Troubleshooting Warnings
INSTALLATION MANUAL TROUBLESHOOTING WARNINGS 1. Submersible pump models have permanently lubricated bearings and require no additional lubrication. 2. Submersible pumps contain dielectric oil for cooling. ALWAYS DISCONNECT THE PUMP FROM POWER SUPPLY before Dielectric oil can be harmful to the environment. Follow installing, servicing or making any adjustments. - Page 8 INSTALLATION MANUAL TROUBLESHOOTING CHART (CONTINUED) Symptoms Possible Cause(s) Suggested Remedies Pump trips GFCI 1. Bad GFCI 1. Contact an electrician to replace GFCI 2. Bad pump 2. Replace pump Pump operates 1. Worn bearings 1. Replace pump noisily or vibrates 2.
-
Page 9: Repair Kits
INSTALLATION MANUAL AND REPLACEMENT PARTS REPAIR KITS REF. NO. DESCRIPTION PART NUMBER FLOAT KIT 60038-WYN1 TETHER SWITCH 56835-WYN1... - Page 10 INTALLATION MANUAL INSTALLATION MANUAL ADDRESS PARTS CORRESPONDENCE TO: FOR REPLACEMENT WAYNE Water Systems PARTS OR CUSTOMER SUPPORT, 101 Production Drive CALL 1-800-237-0987 Harrison, OH 45030 U.S.A. Please provide following information: - Model number - Serial number on cord tag (not to be removed) - Part description and number as shown in parts list Thank you for making Wayne Water Systems a key part of your home maintenance program.
- Page 11 NOTES...
- Page 12 NOTES www.waynepumps.com...
