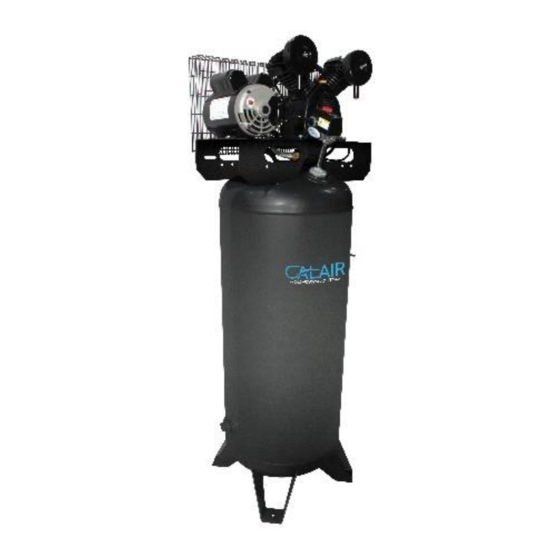

BELT-DRIVEN OIL
AIR COMPRESSOR
OWNER'S MANUAL
CALIFORNIA AIR TOOLS
60037BD
3.7 HP
208v/230v 1-Phase 60hz
13.6 CFM @ 40
PSI,
11.5 CFM @ 90 PSI
60 GALLON A S M E STEEL TANK: 180 PSI
WWW.CALIFORNIAAIRTOOLS.COM
Customer Support 1-866-409-4581

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CALAIR 60037BD and is the answer not in the manual?

Questions and answers

Related Manuals for California Air Tools CALAIR 60037BD

Summary of Contents for California Air Tools CALAIR 60037BD

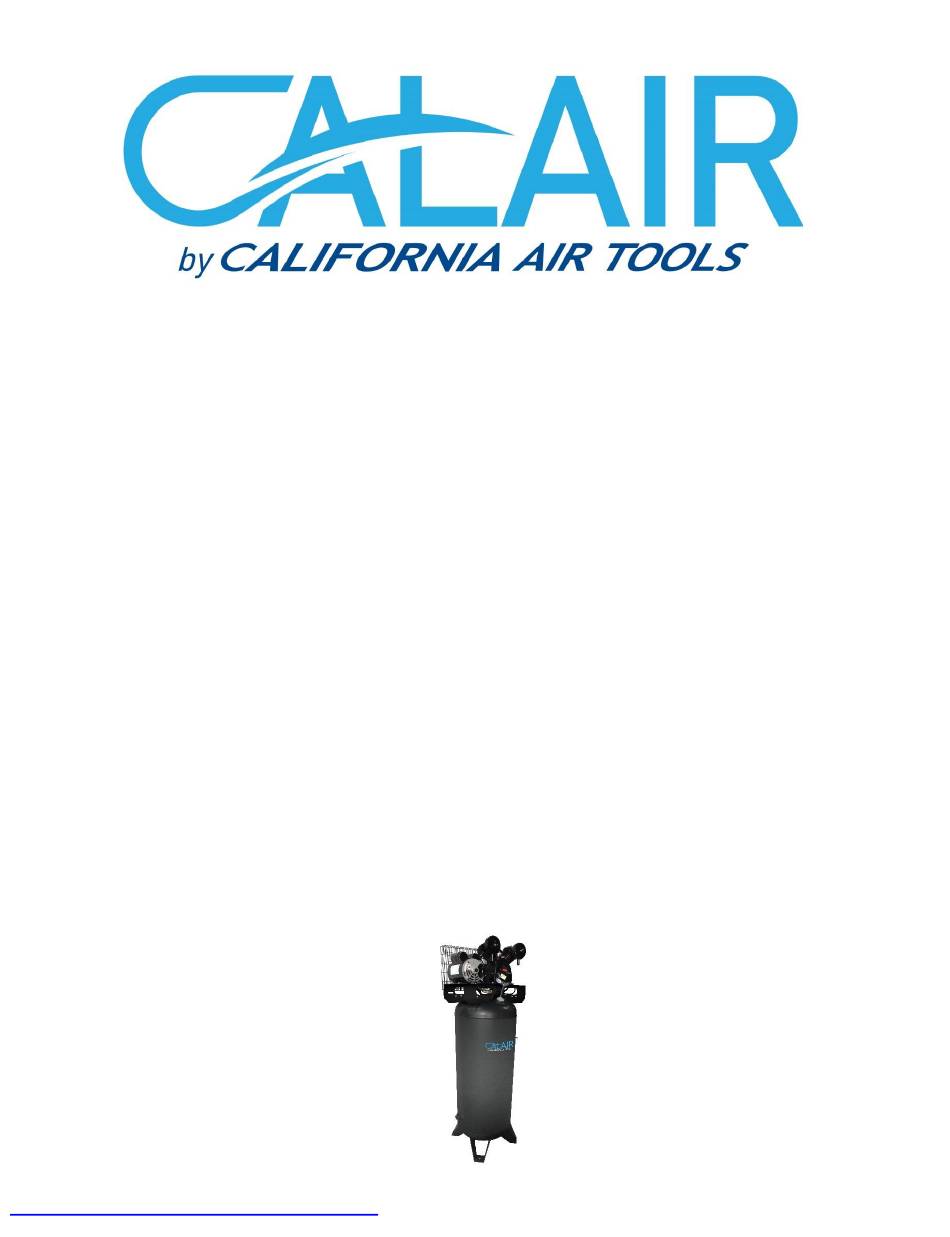

  • Page 1 BELT-DRIVEN OIL AIR COMPRESSOR OWNER'S MANUAL CALIFORNIA AIR TOOLS 60037BD 3.7 HP 208v/230v 1-Phase 60hz 13.6 CFM @ 40 PSI, 11.5 CFM @ 90 PSI 60 GALLON A S M E STEEL TANK: 180 PSI WWW.CALIFORNIAAIRTOOLS.COM Customer Support 1-866-409-4581...

  • Page 2: Table Of Contents

    PRE-OPERATION CHECKLIST ______________________ 8 Package Contents & Assembly ___________________ 8 Inspect for Damage _____________________________ 9 Save Packaging ________________________________ 9 Thank you for purchasing a California Air Tools, Inc. Compressor Location ___________________________ 9 Air Compressor. Electrical Power _______________________________ 10 OPERATING THE AIR COMPRESSOR ______________ 10 Please contact us if you have any questions.

  • Page 3: Important Safety Instructions

    AIR COMPRESSOR How to find a local service center: Even quality built equipment might need service or repair parts. Contact the California Air Tools Customer Service Department: Phone: 1-866-409-4581 Online: WWW.CALIFORNIAAIRTOOLS.COM Please provide the information below: Model number and Serial number and specifications shown on the Model number/Serial number plate.
  • Page 4 AIR COMPRESSOR Customer Support: 1-866-409-4581...
  • Page 5 AIR COMPRESSOR Power Requirements • 208v/230v 60hz 16.7 Amp • 20 Amp Breaker Suggested • Included NEMA 6-15P plug (6 foot power cable) may be connected to either a 6-15R or 6-20R receptacle Customer Support: 1-866-409-4581...

  • Page 6: Locations Of Important Labels

    AIR COMPRESSOR LOCATIONS OF PRODUCT LABEL IMPORTANT LABELS Read these important labels before operating. These labels provide important safety and maintenance information. These labels should be considered as permanent parts of the air compressor. Should any of these labels become illegible, damaged or removed, please contact California Air Tools Customer Service department at 1-866-409-4581 for replacements.
  • Page 7 AIR COMPRESSOR Customer Support: 1-866-409-4581...

  • Page 8: Air Compressor Components

    Part Number 90817 is available separately from California Air Tools. NOTE: To drain the air tank, turn the ball valve lever to be inline with tubing; water/air will eject from valve opening.

  • Page 9: Inspect For Damage

    AIR COMPRESSOR Maintain a Clear Area Inspect for Damage It is very important that the air compressor is positioned so Before using the air compressor, make sure the air tank is not that there is adequate airflow around the machine. There damaged, inspect all parts for damage, and check that all must be at least 2 feet of obstacle-free space surrounding pipes are firmly connected.

  • Page 10: Electrical Power

    AIR COMPRESSOR Electrical Extension Cords Electrical Power Electrical Power Requirements Before using the air compressor, refer to the serial label for voltage and amperage requirements. Make sure you have a sufficient electrical supply for supporting the motor's requirements. Inspect all electrical extension cords to ensure that they are free of damage.

  • Page 11: Test Run

    7. Let the motor run and tank fill until motor turns off. 8. To regulate the output air flow: An optional 0-125 PSI regulator may need to be obtained and installed – contact California Air Tools for information. 9. Operate air tool normally. Shutting down the compressor: Turn the power switch to the OFF position.

  • Page 12: Maintenance

    AIR COMPRESSOR MAINTENANCE Draining the Air Tank Pressure Switch The frequency at which you should drain the air tank depends The pressure switch is factory pre-set to shut off at on the environmental conditions and the amount of operating 155 PSI (plus or minus 5 PSI) and to re-start at time logged.

  • Page 13: Troubleshooting

    AIR COMPRESSOR TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONS Let the compressor build pressure in the tank, to the maximum pressure if possible. Brush soapy water on air connections and look carefully for air Pressure drop in the tank. Air leaks at connections. bubbles.

  • Page 14: Specifications

    AIR COMPRESSOR SPECIFICATIONS Electrical Circuit (generic) Air Passage Drawing (generic) Customer Support: 1-866-409-4581...

  • Page 15: Warranty

    This warranty does not transfer to subsequent owners. California Air Tools Inc. will repair or replace, at its option, any parts of the portable air compressor that are proven by an authorized service center to be defective in material or workmanship under normal use during the applicable warranty time period as stated below.
  • Page 16 3. Accident, damage, abuse or misuse. 4. Abnormal operating conditions or applications. 5. Repair or modification by customer or any third party without written consent of California Air Tools Inc. 6. Use under operating conditions or in applications not recommended by California Air Tools Inc.
