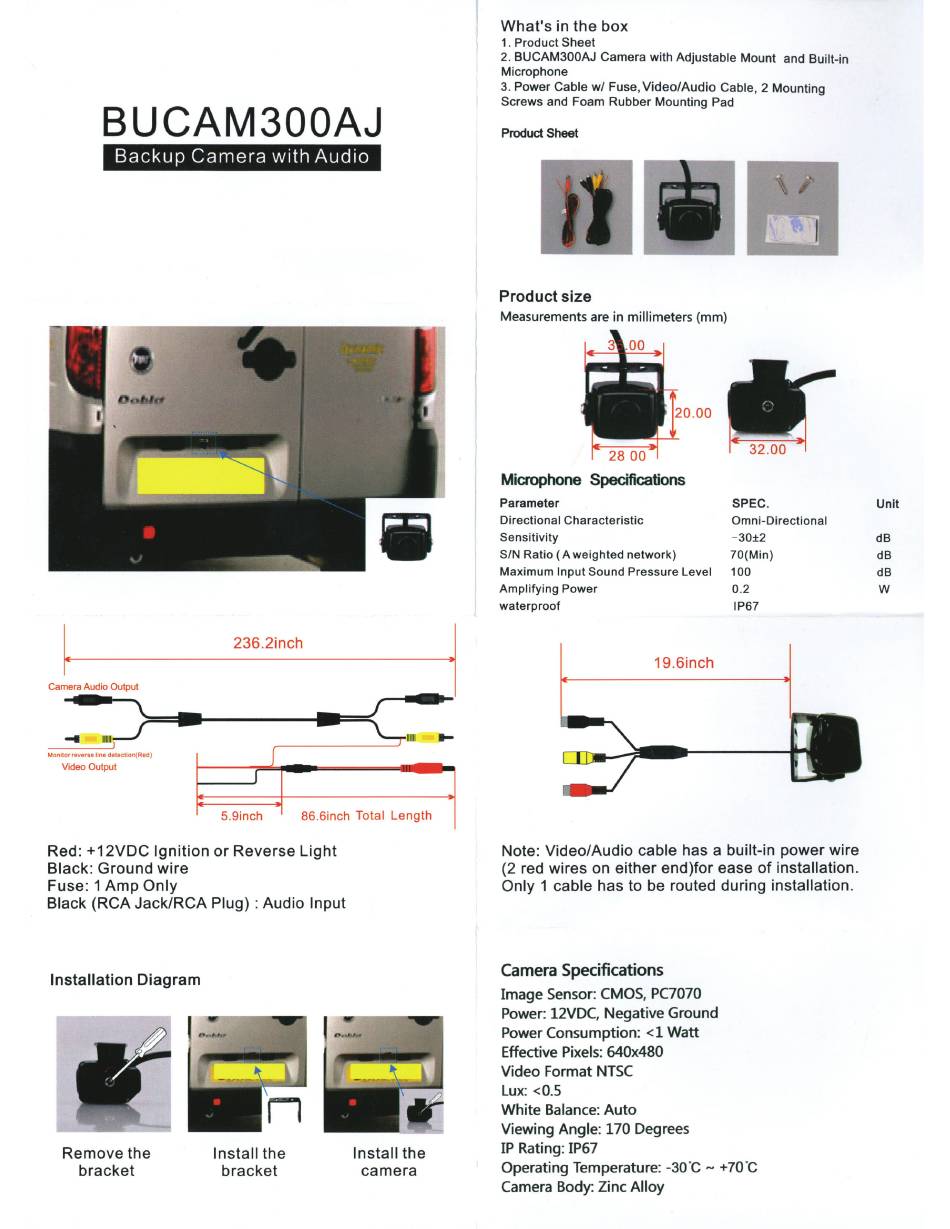

Dual Electronics Corporation BUCAM300AJ Manual

BUCAM300AJ
Backup Camera with Audio
236.2inch
Ca
mera~ io
Output
-
\
J
-
-
-
-
-
~1 1 1 1 1 1
... _ 111111)
itor reverse line detection(Red)
1
Video Output
I
5.9inch
86.6inch Total Length
Red: +12VDC Ignition or Reverse Light
Black: Ground wire
Fuse: 1 Amp Only
Black (RCA Jack/RCA Plug) :Audio Input
Installation Diagram
Remove the
bracket
Install the
bracket
Install the
camera
...
What's in the box
1. Product Sheet
2 . BUCAM300AJ Camera with Adjustable Mount and Built-in
Microphone
3. Power Cable w/ Fuse, Video/Audio Cable, 2 Mounting
Screws and Foam Rubber Mounting Pad
Product Sheet
Product size
Measurements are in millimeters (mm)
Microphone Specifications
Parameter
Directional Characteristic
Sensitivity
SIN Ratio (A weighted network)
Maximum Input Sound Pressure Level
Amplifying Power
waterproof
19.6inch
SPEC.
Omni-Directional
- 30±2
70(Min)
100
0.2
IP67
Note: Video/Audio cable has a built-in power wire
(2 red wires on either end)for ease of installation.
Only 1 cable has to be routed during installation.
Camera Specifications
Image Sensor: CMOS, PC7070
Power: 12VDC, Negative Ground
Power Consumption:
<
1 Watt
Effective Pixels: 640x480
Video Format NTSC
Lux: <0.5
White Balance: Auto
Viewing Angle: 170 Degrees
IP Rating: IP67
Operating Temperature: -3o ·c- +70 ·c
Camera Body: Zinc Alloy
Unit
dB
dB
dB
w
